What is the process for ensuring proper installation of a pallet racking system?

Proper pallet racking installation is a controlled process that turns an approved storage design into a stable, correctly aligned and safely usable system. It involves surveying the site, confirming loads and layout, checking the building and components, assembling the frames and beams, securing the structure, and completing inspection and handover checks before pallets are stored.

The installation should be carried out by competent operatives who understand the manufacturer’s instructions, the approved design and the conditions found on site. Correct fitting is not simply a matter of assembling upright frames and beams. Small errors in positioning, anchoring, alignment or component selection can affect load capacity, forklift clearances and the long-term performance of the warehouse racking.

1. Review the requirements and approved design

The process begins by confirming how the warehouse racking will be used. The installer needs reliable information about pallet dimensions, unit loads, storage levels, handling equipment, aisle requirements and the available floor area. The design should also account for any building constraints, fire protection arrangements, pedestrian routes, loading bays and access for inspection and maintenance.

The proposed layout is then checked against the agreed specification. This includes the position and length of each run, bay widths, beam levels, clearances, working aisles and any protection required at exposed ends or around columns. The design should state the intended load capacities and operating conditions. If the planned use changes, such as heavier pallets or different forklift equipment, the design must be reviewed rather than adjusted informally on site.

2. Complete a site survey before installation

A site survey confirms whether the warehouse is ready for the installation and whether the conditions match the design assumptions. The survey normally considers:

• The available dimensions, including height, width, obstructions and access routes.
• The condition, level and suitability of the concrete floor.
• Floor joints, drainage channels, expansion gaps and other features that may affect anchor positions.
• Columns, doors, sprinklers, lighting, services and other building interfaces.
• Vehicle movements, pedestrian traffic and the space needed for safe installation.
• Whether the floor and building can support the proposed loads and impact conditions.

Any discrepancy should be resolved before fitting starts. For example, a floor that is outside the design tolerance may require a revised arrangement or suitable corrective work. Installers should not compensate for significant site differences by forcing components into position or altering the design without approval.

3. Check the components on delivery

All components should be checked against the specification before assembly. Upright frames, beams, bracing, baseplates, anchors, locking devices, protection and accessories must be the correct type and quantity. Components should also be inspected for transport damage, distortion, corrosion or other defects.

Damaged or incorrect items should be isolated and reported. A bent upright, damaged beam connector or missing locking pin can compromise the completed system, even if the defect appears minor. Replacements should be approved before installation so that unsuitable components are not incorporated into the warehouse racking.

4. Set out the floor accurately

The installers mark the floor using the approved layout, establishing the positions of frames, aisles, protection and other features. Accurate setting out is essential because an error at this stage can be repeated along an entire run. The layout must preserve the required clearances for pallets, forklifts, pedestrians, fire protection and inspections.

Before drilling, installers should confirm that marked anchor positions do not conflict with floor joints, services or other obstructions. The installation area should be segregated where necessary, with suitable controls for forklift movements, overhead work and access by other people on site.

5. Assemble the frames and install the beams

Frames are assembled using the specified uprights, bracing and fixings. Beams are then fitted at the approved levels, with each connection fully engaged and secured by the required locking device. The installation team checks that the beam types, levels and spans correspond with the design and that no component has been substituted without authorisation.

During assembly, frames should be supported and stabilised so that they cannot topple or move unexpectedly. Temporary measures may be required until enough beams, bracing and anchors are in place to provide stability. The sequence of work should follow the manufacturer’s instructions and the installer’s risk assessment.

6. Check alignment, level and plumb

Alignment checks confirm that the completed structure is positioned correctly and remains within the tolerances set by the design, manufacturer or applicable guidance. Installers check that frames are vertical, beam levels are consistent, aisles are maintained and runs are straight. They also verify that connections are fully seated and that bracing has been installed correctly.

Alignment is important for more than appearance. A structure that is out of tolerance may transfer loads unevenly, reduce operating clearances or increase the risk of impact from handling equipment. Any adjustment should be made using an approved method. Components should not be bent, drilled or modified on site unless this has been specifically designed and authorised.

7. Secure the structure to the floor

Where the design requires floor anchoring, baseplates are positioned correctly and anchors are installed to the specified type, depth and fixing method. The floor must be suitable for the anchors, and drilling should avoid joints and embedded services. The installation team should verify that anchors are properly seated and tightened in accordance with the relevant instructions.

Anchoring does not remove the need for correct assembly, alignment or protection. It is one part of the overall stability arrangement. Where the warehouse racking is exposed to forklift traffic, end-of-aisle protection, upright guards, barriers or other measures should be installed as specified by the design and site risk assessment.

8. Fit safety components and accessories

Safety components are installed before the system is handed over for use. Depending on the design, these may include upright protectors, end protection, back stops, mesh, pallet supports, row spacers, safety barriers and load notices. Each item should be suitable for its intended purpose and fitted without reducing the required clearances or interfering with pallets and handling equipment.

Load notices must be clear, durable and positioned where operators can see them. They should reflect the approved configuration, including the relevant beam and bay capacities. If the configuration changes later, such as altering beam levels or using different pallets, the load information and design suitability must be reviewed.

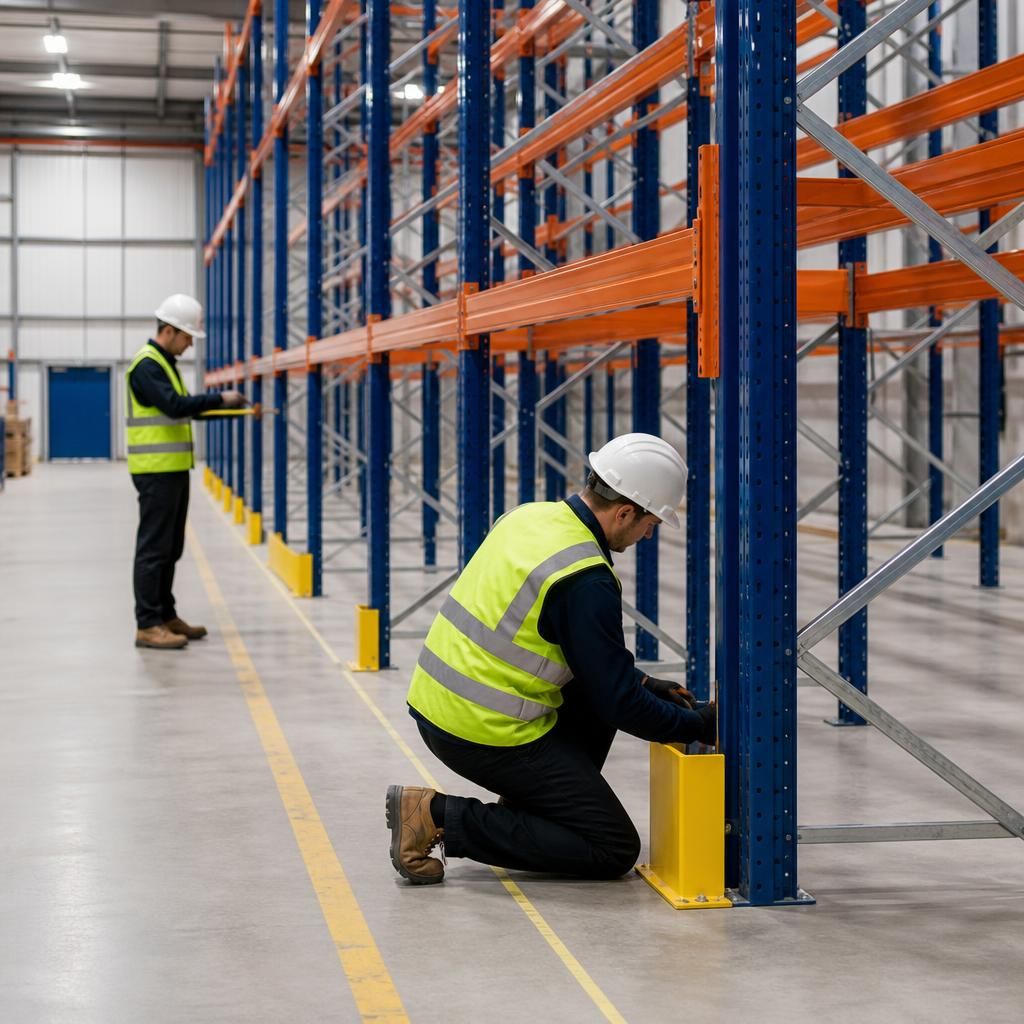

9. Carry out completion checks

Before use, a competent person should complete a systematic inspection of the installation. This normally includes checks on:

• Component type, condition and correct location.
• Beam connections, locking devices, bracing and baseplates.
• Anchor installation and tightening where applicable.
• Frame verticality, run alignment, beam levels and aisle clearances.
• Protection, accessories and load notices.
• Damage caused during installation or by other site activities.
• Compliance with the approved design and manufacturer’s instructions.

Any defects or outstanding items should be recorded and corrected before the affected area is brought into service. If a safe conclusion cannot be reached, the area should remain out of use until the issue has been assessed and resolved.

10. Complete handover and introduce safe use

The handover should provide the customer with the relevant design information, load details, inspection records, installation documentation and instructions for safe operation. Operators should understand the load limits, pallet positioning requirements, traffic arrangements and the need to report damage immediately.

Installation is not the end of the safety process. The warehouse racking should be managed through routine housekeeping, operator awareness and regular inspections. Any impact, unauthorised alteration, change of load or change to the surrounding warehouse environment may require a further assessment. Periodic inspections should be arranged in line with the applicable guidance and the site’s risk assessment, with defects classified and addressed according to their severity.

In practice, a safe installation depends on the link between design, site conditions, competent fitting and documented verification. A thorough installation team will stop and seek clarification when the site does not match the approved plan, rather than making unrecorded changes. That approach provides confidence that the finished warehouse racking is suitable for its intended loads, usable by warehouse operators and ready to be maintained safely throughout its service life.
