How do warehouse racking dimensions impact cost?

Warehouse racking dimensions directly affect cost because the height, length, depth and load capacity determine the quantity of steel, number of components, handling access and installation work required. Larger or higher-capacity warehouse racking generally costs more, but the most economical design is not necessarily the smallest or lightest option. Accurate dimensions help prevent over-specification, make better use of available space and ensure the completed system is suitable for its intended loads and operations.

Height affects materials, access and installation. Taller warehouse racking requires longer uprights and may need additional bracing, stronger sections or specialist handling equipment during installation. The height must also be assessed against the building structure, sprinkler arrangements, lighting, roof services, fire precautions and safe clearance above stored goods. Increasing height can create more storage capacity within the same floor area, but the additional design, installation and access requirements may increase the overall project cost.

Length influences the number of bays and components. A longer run usually requires more uprights, beams, bracing, guards and fixings. However, extending a continuous run can sometimes be more cost-effective than creating several short runs because shared frames and consistent layouts may reduce duplicated components. The final arrangement must still allow safe access, stock rotation, picking activity, emergency routes and any required separation between storage areas.

Depth affects both capacity and floor-space efficiency. Deeper warehouse racking can hold larger pallets or more goods, but it may reduce aisle space and limit visibility or access to stored products. If the depth is greater than required, valuable floor area can be lost and handling equipment may need wider operating clearances. If it is too shallow, pallets may overhang or the available storage volume may not be used effectively. The correct depth should reflect the actual pallet dimensions, load orientation, handling method and required clearances.

Beam length and load capacity are closely connected. Longer beams generally need to support greater loads across a wider span, which can require stronger or heavier components. The required specification depends on the weight and dimensions of each pallet, the number of stored levels, the way loads are placed and removed, and whether loads are evenly distributed. Using components that are stronger than necessary can add avoidable cost, while using inadequate components creates a serious safety risk and may lead to remedial work.

The number of storage levels changes the cost calculation. Adding levels can increase storage capacity without extending the warehouse footprint, but it also adds beams, decking or other support components, protection and installation time. Additional levels may affect the clearance available for pallets, lifting equipment and lighting. A cost comparison should therefore consider the value of the extra capacity, not only the price of the additional components.

Aisle dimensions can have a substantial effect on the total project cost. Narrower aisles may allow more warehouse racking within the building, but they may require particular handling equipment and more controlled operating procedures. Wider aisles use more floor space but can support different vehicles, picking methods and traffic arrangements. The most suitable aisle width should be based on the equipment in use, turning requirements, load dimensions, operator visibility and safe movement around the installation.

Dimensions also influence installation complexity. A straightforward layout with consistent bay sizes is generally easier to install than a design that includes changes in height, irregular bays, restricted access or interfaces with existing warehouse racking. Work around columns, doors, loading areas, plant, services and uneven floors can require additional surveying, protection, adjustments and installation time. These factors should be identified before a quotation is prepared rather than treated as minor changes during the work.

Building constraints can alter the cost of a dimensionally suitable design. The available floor area is only one consideration. The design should account for clear internal height, floor condition, slab capacity, obstructions, fire systems, lighting, doors, escape routes and the position of existing equipment. A warehouse racking layout that appears suitable on a plan may need modification if it conflicts with a structural feature or leaves insufficient clearance for safe operation.

Transport and handling costs can also be affected by the size and weight of the components. Larger frames, longer beams and heavier sections may require different delivery arrangements, additional unloading equipment or more controlled access to the site. If the installation takes place in an operational warehouse, the layout and component dimensions may also affect how materials are brought into the building without disrupting normal activity.

Dimensions should always be assessed alongside the intended use of the warehouse racking. A design for lightweight cartons will have different requirements from one intended for heavy pallets, long products or irregular loads. The assessment should consider:

• the maximum weight and dimensions of each stored load;
• the number of pallets or products required at each level;
• the handling equipment used to place and retrieve goods;
• the required aisle, operating and pedestrian clearances;
• the available building height and floor area;
• the condition and capacity of the floor;
• protection needed at exposed frames, corners and traffic routes; and
• future changes in stock, equipment or storage demand.

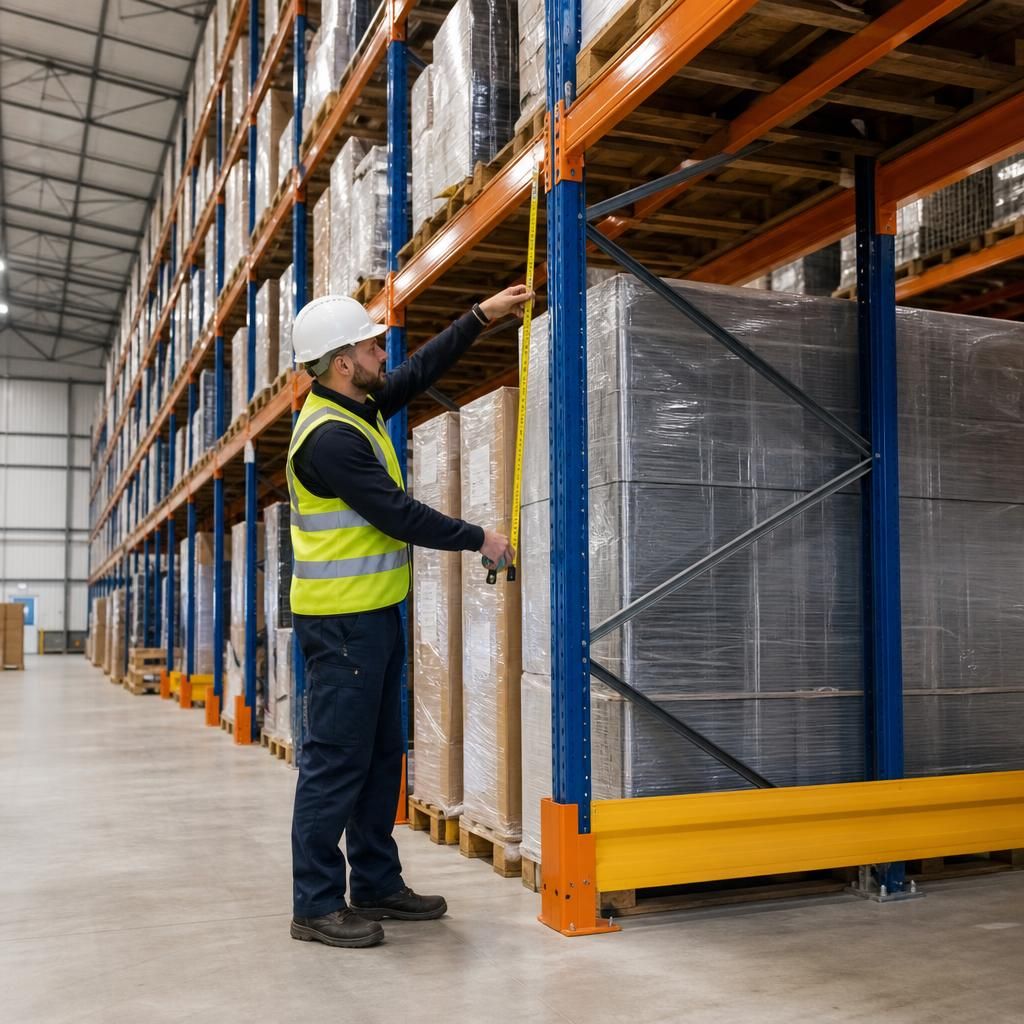

Accurate site information is essential when estimating the cost. Measurements should cover the full usable area rather than relying solely on architectural drawings, which may not show later alterations, service routes or obstructions. Product and pallet dimensions should also be checked in practice, including any packaging, wrapping or load overhang. Small differences can affect beam selection, clearances, aisle planning and the number of usable storage positions.

There is often a choice between maximising storage density and maintaining flexibility. A highly dense warehouse racking layout may provide more positions in the short term, but it can be less adaptable if product sizes change or access requirements increase. A slightly less dense arrangement may support easier picking, safer traffic movement and future reconfiguration. The right comparison is the whole-life cost of the layout, including installation, operation, modification and maintenance, rather than the initial component price alone.

To control costs, confirm the required loads and dimensions before selecting the system, compare alternative layouts using the same design assumptions and allow for access, protection and installation requirements from the outset. Avoid reducing dimensions or clearances simply to lower the quotation. A cheaper installation that cannot safely accommodate the intended loads or handling equipment may require alteration, restrict operations or create compliance problems.

Before work begins, the proposed warehouse racking should be checked against the site survey, load requirements, layout drawings and installation plan. Once installed, it should be inspected to confirm that the dimensions, components, fixings, protection and clearances match the approved design. Any later changes to bay height, beam position, load type or layout should be assessed before implementation, as they can affect both safety and the original cost assumptions.

In practical terms, warehouse racking dimensions affect cost through materials, capacity, access, building compatibility and installation complexity. The best-value solution is one that provides the required storage capacity and operational access without unnecessary steel, unused height or excessive floor-space consumption. A properly measured and specified design gives a clearer price, reduces the risk of variations and supports safe, efficient warehouse operations over the working life of the installation.
