What are the most important factors to consider when designing a warehouse racking layout? A safe, efficient layout should balance storage capacity, load requirements, aisle access, handling equipment, workflow, visibility, floor conditions and compliance with applicable safety standards.

The most important factors in a warehouse racking layout are storage capacity, load requirements, aisle access, materials-handling equipment, workflow, visibility, floor conditions and compliance. An effective design uses available space efficiently without restricting safe movement, exceeding the capacity of the structure or creating avoidable delays during picking, replenishment and dispatch.

Layout design should begin with the way the warehouse operates rather than with the available storage equipment alone. A site survey, accurate stock information and a clear understanding of vehicle and pedestrian movements provide the basis for a practical and safe plan.

Storage capacity and stock profile

The layout must provide sufficient capacity for the quantity and type of goods being stored, while allowing stock to be accessed and controlled properly. Important considerations include:

• the number of pallets, cartons or other load units to be stored;
• the dimensions and weight of each load;
• stock turnover and seasonal changes in demand;
• the proportion of fast-moving, slow-moving and reserve stock;
• the required level of selectivity, or how easily individual loads must be reached; and
• any special storage conditions, such as temperature, security or segregation requirements.

High-density storage can increase capacity, but it may reduce direct access to individual loads or require particular handling equipment. Selective layouts generally provide easier access, although they can use more floor space. The correct balance depends on the stock profile and operating process, not simply on the maximum number of storage positions.

Load characteristics and structural capacity

Every storage level must be suitable for the loads placed on it. The design should account for the weight, dimensions, pallet quality, load distribution and stability of stored goods. Loads that are damaged, inconsistent or liable to overhang require particular attention because they can affect clearances, beam loading and safe handling.

Load notices should reflect the actual configuration of the installed system. Changing beam levels, components, pallet types or load weights can alter the capacity of the structure. Any proposed change should therefore be assessed before implementation, rather than treated as a simple adjustment to the layout.

Available building space

Accurate building information is essential. The plan should consider the usable length, width and height of the warehouse, together with columns, walls, doors, loading bays, dock areas, offices, stairs, fire equipment, lighting, sprinklers, ventilation and other fixed obstructions.

Clearances above the storage system and around building services must be maintained. The design should also allow for uneven walls, variations in the floor plan and areas that cannot safely support storage or vehicle movements. A drawing based only on external building dimensions can produce an unrealistic layout and costly changes during installation.

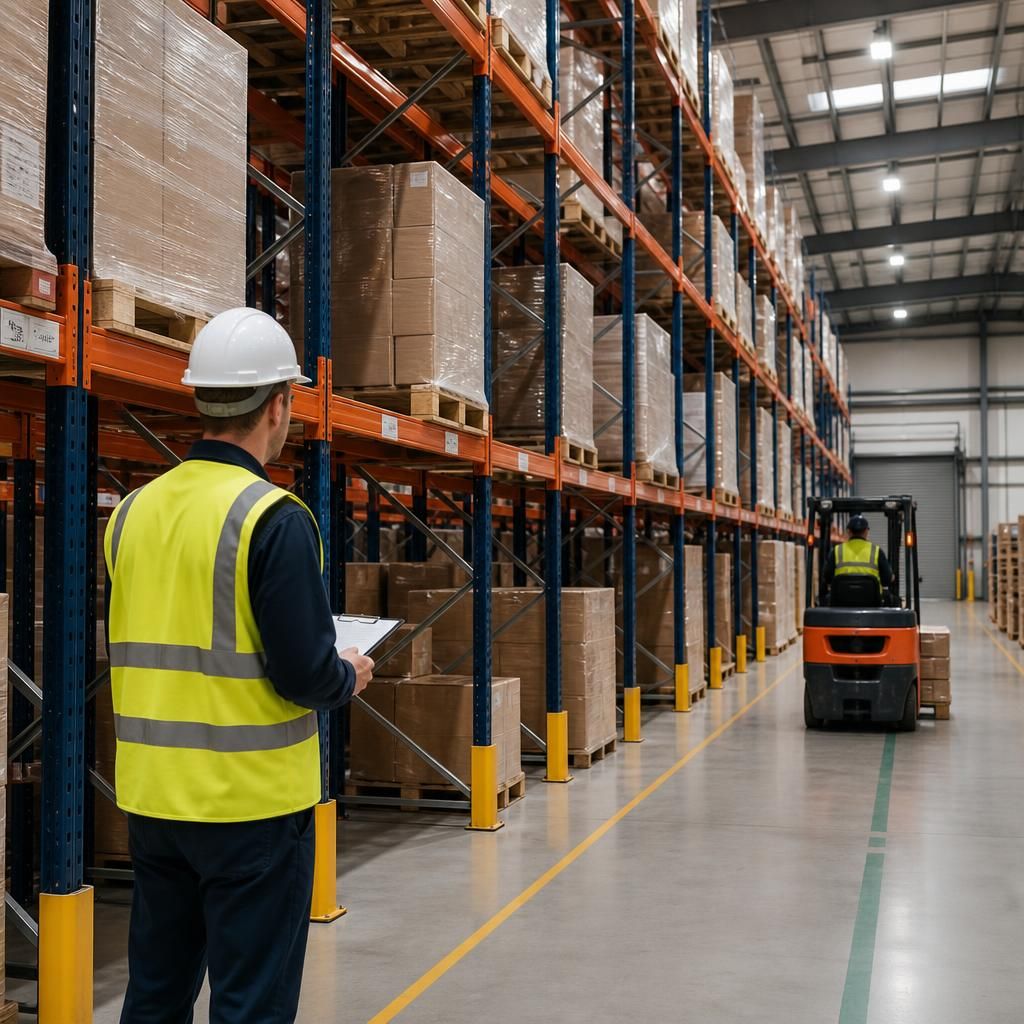

Aisle widths and handling equipment

Aisles must be wide enough for the vehicles and tasks carried out within them. The required width depends on the type of truck, its turning characteristics, load dimensions, operating direction, visibility and whether pedestrians may enter the area. Narrowing an aisle can create additional capacity, but it may reduce manoeuvrability, increase impact risk and slow down handling operations.

The plan should show vehicle routes, turning areas, approach distances and any locations where loads are picked up or set down. It should not rely on vehicles having to reverse unnecessarily through busy areas or make difficult turns close to structural components. Manufacturer guidance and the operating characteristics of the selected handling equipment should be used when confirming aisle requirements.

Workflow and material movement

A good layout supports the complete flow of goods from receipt through storage, picking, consolidation and dispatch. Frequently handled products should not be placed where every movement creates long travel distances or crosses the main route for incoming goods. Similarly, replenishment routes should not obstruct order picking or loading activities.

Map the movement of pallets, loose goods, waste, equipment and people. Separate activities that conflict with one another wherever practicable. For example, delivery routes, pedestrian access and picking operations may require defined areas or controlled crossing points. The layout should reduce unnecessary handling while leaving enough room for safe staging and temporary activity.

Pedestrian safety and visibility

People working around storage systems need clearly defined routes, suitable separation from vehicles and good visibility at junctions. Blind corners, restricted sight lines and poorly positioned end frames can increase the risk of collision.

Consider pedestrian doors, walkways, crossing points, emergency exits and access to inspection or maintenance areas during the design stage. Barriers, guardrails, signage, mirrors, protection at exposed structural points and other controls may be required depending on the risks identified on site. These measures should form part of the overall layout rather than being added after installation.

Floor condition and building suitability

The floor must be capable of supporting the proposed system and the loads imposed by storage equipment and handling vehicles. Its condition, level, thickness and ability to accept suitable fixings should be checked before installation. Cracks, deterioration, movement or significant unevenness can affect stability and may require remedial work or a revised design.

The layout should also take account of floor joints, drainage channels, ramps, changes in level and areas exposed to water or impact. Fixing arrangements must be appropriate for the floor construction and the equipment manufacturer’s requirements.

Compliance and risk control

The design must support safe use and comply with applicable legislation, recognised guidance, manufacturer instructions and the building’s fire and operational requirements. It should provide adequate access for inspection, maintenance and emergency response.

Risk assessment should consider falling goods, structural impact, overloading, unstable loads, vehicle contact, unauthorised alterations, blocked escape routes and interaction between pedestrians and vehicles. Where the environment or goods present particular hazards, additional controls may be necessary. The completed installation should be handed over with suitable load information, operating instructions and inspection arrangements.

Fire protection and building services

Storage arrangements can affect fire detection, suppression, escape routes and access for emergency services. The layout should be checked against the site’s fire strategy, including required clearances around sprinklers, lighting, alarm equipment and other services. Storage height, load type, packaging and aisle arrangement may all be relevant to the assessment.

Fire exits, fire-fighting equipment and emergency access must remain unobstructed. Any changes to the storage arrangement should be reviewed if they alter these conditions.

Flexibility and future requirements

A layout designed only for current stock can become inefficient when product ranges, pallet types, order volumes or handling equipment change. Allow for foreseeable growth and operational changes without compromising stability or access. Adjustable components, spare capacity in suitable locations and clearly controlled layout changes can make the warehouse easier to adapt.

Flexibility must not mean making unapproved changes. Relocating beams, adding components, changing aisle use or increasing load weights can affect the design assumptions. A change-control process should identify who can approve alterations and when a competent review is required.

How to develop and verify the layout

1. Survey the site: record building dimensions, obstructions, floor conditions, access points, services, fire provisions and existing equipment.
2. Collect operational data: confirm stock dimensions, weights, quantities, turnover, handling methods, storage rules and expected future requirements.
3. Define movement routes: map vehicle travel, pedestrian paths, receiving, picking, staging and dispatch activities.
4. Select suitable equipment: compare storage systems and handling methods against the required capacity, selectivity, clearances and workflow.
5. Produce and test the plan: check access, turning movements, visibility, emergency routes, structural clearances and likely congestion points.
6. Confirm the technical design: verify load capacities, fixings, floor suitability, protection requirements and relevant compliance obligations.
7. Review the completed installation: check that the installed arrangement matches the approved design and that load notices, protection and operating controls are in place.

A layout should be reviewed by people who understand both storage design and day-to-day warehouse risks. Practical input from operators is valuable because it can identify access problems, congestion and handling difficulties that may not be obvious on a drawing. Once in use, regular inspections and prompt action on damage, overloading or unauthorised changes help the layout remain safe and effective.
