What safety standards should be considered in warehouse racking layout design?

Warehouse racking layout design should be based on a documented site-specific risk assessment, the relevant UK health and safety legislation, HSE guidance including HSG76, applicable BS EN standards and the manufacturer’s instructions. A safe layout must account for the loads being stored, the condition and capacity of the equipment, vehicle and pedestrian movements, access requirements, fire precautions, emergency routes, impact risks and arrangements for inspection and repair.

Apply the correct legal and technical framework

There is no single regulation that specifies every detail of a warehouse racking layout. Compliance normally depends on applying several requirements together, including:

• The Health and Safety at Work etc. Act, which places duties on employers to protect employees and others affected by their work.
• The Management of Health and Safety at Work Regulations, which require suitable and sufficient risk assessments, appropriate arrangements and competent people to manage risks.
• The Workplace (Health, Safety and Welfare) Regulations, which cover matters such as traffic routes, pedestrian routes, lighting, ventilation and safe access around the workplace.
• The Provision and Use of Work Equipment Regulations (PUWER), where warehouse racking is treated as work equipment and must be suitable, maintained and used by people with appropriate information and training.
• HSE guidance, particularly HSG76 Warehousing and storage, which provides practical advice on storage equipment, workplace transport, loading, access, inspection and maintenance.
• The BS EN 15635 principles for the use and maintenance of steel static storage systems, supported by relevant design and specification standards such as BS EN 15629, BS EN 15620 and BS EN 15512 where applicable.

British Standards provide recognised methods and good practice, but they do not replace a risk assessment or the manufacturer’s design information. The final layout should be reviewed against the actual building, equipment, operating methods and loads rather than copied from a generic drawing.

Confirm the design loads and equipment specification

Every bay, level and component must be suitable for the intended use. The design should identify the maximum pallet or unit load, the number of loads per level, load distribution, beam configuration, frame height, upright type and any unusual loading conditions. The safe working load information must be available, accurate and displayed where operators can see it.

The design also needs to consider the condition and compatibility of existing components. Mixing parts from different manufacturers or changing beam positions, decking, bracing or load arrangements without technical approval can alter the system’s capacity and stability. Any proposed alteration should be checked by a competent person and approved in accordance with the original design and manufacturer’s instructions.

Provide suitable clearances and tolerances

Clearances should be sufficient for the intended handling equipment and the way loads are placed and removed. The layout should allow for:

• Safe manoeuvring by forklift trucks and other handling equipment.
• Clear placement of pallets without striking beams, frames or adjacent loads.
• Variations in pallet quality, load dimensions and handling accuracy.
• Safe separation from walls, columns, doors, sprinklers, lighting and other building services.
• Access for inspection, cleaning, maintenance and removal of damaged components.
• Safe access to stock without climbing on the structure or standing on pallets.

Clearances must be based on the equipment actually used on site. Aisles that appear adequate on a plan may be unsafe if the turning characteristics, lift height, load dimensions or operator visibility have not been considered.

Separate vehicles and pedestrians

Workplace transport is a significant source of warehouse risk, so the layout should keep pedestrians away from vehicle routes wherever reasonably practicable. Physical barriers, dedicated walkways, controlled crossing points, gates, guardrails and suitable visibility measures may be required. Where routes must cross, the arrangement should minimise reversing, blind corners and unexpected interaction between people and vehicles.

Vehicle routes should have suitable widths, surfaces, gradients, headroom and turning areas. They should not be obstructed by stock, packaging or temporary equipment. The risk assessment should also address charging areas, loading and unloading points, trailer movements and changes in traffic flow during busy periods.

Protect the storage structure from impact

Where handling equipment operates close to the structure, the layout should include suitable protection for exposed uprights, corners, end frames and other vulnerable components. Protection should be compatible with the equipment and allow the system to perform as designed; it should not create additional trip hazards or obstruct inspections.

Protection is not a substitute for a safe traffic plan. Vehicle speeds, route discipline, visibility, operator training and housekeeping remain important. Any impact should be reported and the affected area should be assessed before it is returned to normal use. Damaged components must not be straightened, welded or altered without suitable technical advice.

Maintain stability and prevent falling goods

The layout and loading method should prevent pallets, cartons and other goods from falling or becoming unstable. The design may need suitable decking, pallet supports, backstops, mesh panels, row spacers or other measures, depending on the goods and the risk of items passing through or over the structure.

Loads should be stable, compatible with the beams and pallets, and positioned within the specified loading envelope. Heavy or awkward goods may require lower-level storage or a different storage solution. The layout should also take account of loose items, overhanging loads, damaged pallets and goods that could shift during handling.

Keep emergency routes, fire provisions and building services clear

Warehouse racking should not reduce the required width or availability of escape routes, emergency exits, fire-fighting equipment, fire doors or access for emergency services. The layout must be coordinated with the building’s fire strategy and any requirements from the fire risk assessment, insurer, building control professional or fire authority.

Sprinklers, smoke detection, lighting, ventilation, electrical equipment, heating systems and other services need adequate separation and access. Changes to storage height or arrangement can affect fire protection, so the implications should be reviewed before the layout is altered. Fire exits and access routes must remain identifiable and free from stored goods at all times.

Make access and work at height safe

The design should avoid requiring people to climb on beams, pallets or stored goods. Where access at height is necessary, it should be provided through suitable work equipment and controlled procedures. The risk assessment should cover picking, replenishment, stock checks, maintenance and the removal of damaged or trapped goods.

Access points, ladders, platforms and other equipment should be suitable for their intended purpose, kept clear and inspected as required. The layout should also provide enough room for operators to work without reaching through unstable loads or placing themselves beneath raised goods.

Use clear signage and load information

Signs should identify safe working loads, bay or location references, traffic controls, pedestrian routes, restricted areas and relevant operating instructions. Load notices must reflect the installed configuration and should be updated when the system is changed. Signs that are damaged, obscured or no longer accurate should be replaced promptly.

Good housekeeping supports safe layout control. Aisles, exits and access points should be kept free from waste and temporary storage. Stock should be placed only in locations intended for it, with damaged pallets and unsuitable loads removed from service.

Build inspection and maintenance into the design

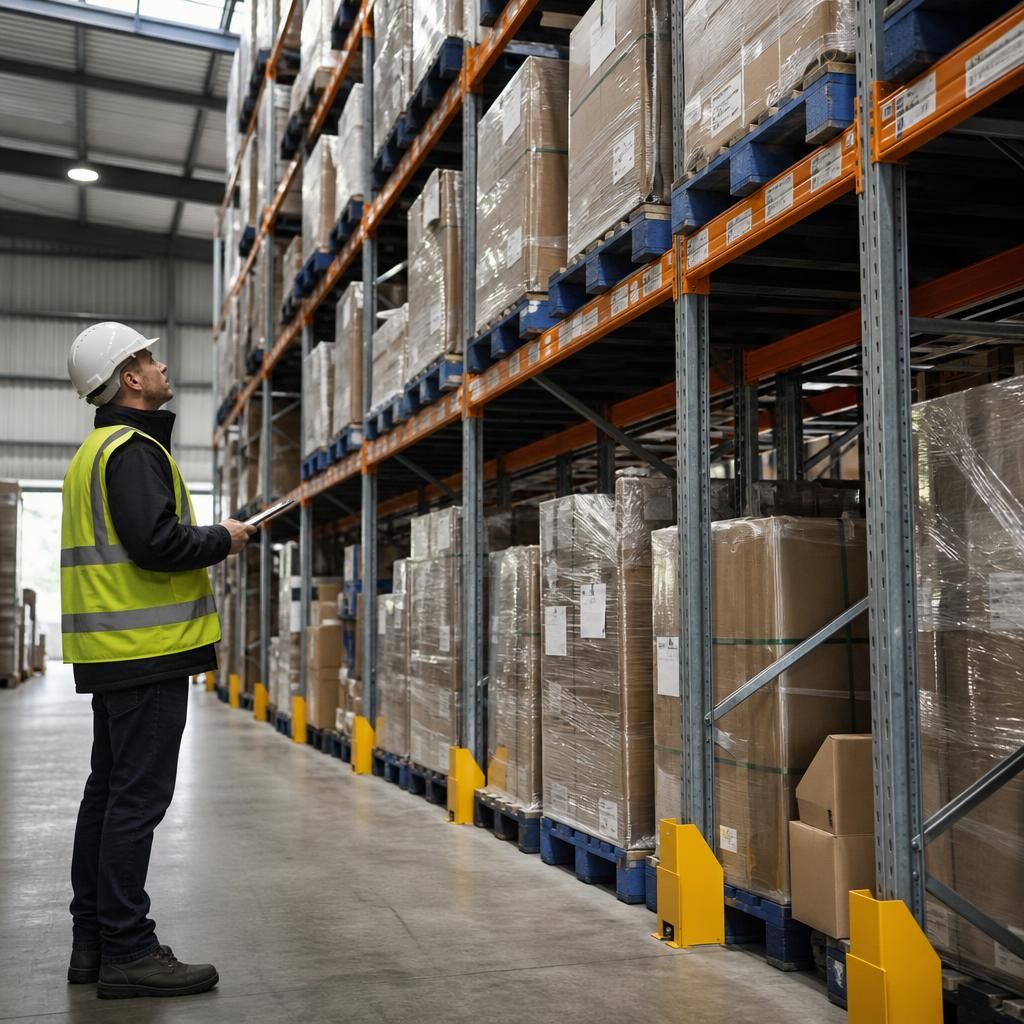

Safety does not end when warehouse racking is installed. The operator should have a documented inspection arrangement covering routine checks by trained employees, reporting of defects, control of damaged areas and periodic expert inspection by a technically competent person. BS EN 15635 and HSG76 provide recognised guidance for managing these activities.

The layout should make inspections practical by providing access to frames, beams, protection and connections. Inspection findings should be recorded, prioritised and followed through to completion. Where there is a serious risk, the affected location should be unloaded and isolated until a competent person confirms that it is safe or specifies the required repair.

Review the layout when conditions change

A warehouse racking layout should be reassessed after changes to vehicles, pallets, load weights, storage heights, operating hours, traffic routes, fire systems or building use. New equipment, altered beam levels and changes in product range can introduce risks that were not present in the original design.

Before implementation, the proposed arrangement should be checked against the risk assessment, structural information, manufacturer’s specifications, fire strategy and working practices. Involving warehouse operators, transport managers, facilities personnel and competent warehouse racking specialists helps identify practical hazards that may not be visible on a plan. This approach provides a defensible basis for a safe, compliant and maintainable layout.
