What are the key factors to consider in warehouse racking layout planning and design?

Warehouse racking layout planning and design is the process of arranging storage equipment, access routes, loading areas and safety clearances so that goods can be stored within the system’s capacity and retrieved efficiently without creating avoidable risks. A suitable design must balance storage density with accessibility, vehicle movement, pedestrian safety, fire protection, building constraints and future operational requirements.

The layout should be developed from accurate information about the building, the goods stored and the way the warehouse operates. A system that appears to maximise available space may reduce productivity if it restricts access, creates congestion or makes inspections and maintenance difficult. Equally, a layout with generous access routes may provide good movement but use storage space inefficiently. The most effective design considers the entire operation rather than the storage equipment in isolation.

Storage requirements and product characteristics

The dimensions, weight, shape and handling requirements of the stored goods are fundamental to the design. The planning process should establish:

• the size and weight of pallets, cartons, containers or other unit loads;
• the number of load units to be stored and the required stockholding capacity;
• whether products are fast-moving, slow-moving, seasonal, hazardous, fragile or temperature-sensitive;
• the required level of stock rotation and access to individual loads;
• how goods are received, checked, stored, picked and dispatched; and
• whether stock must be segregated by product type, customer, batch, date or handling requirement.

These details help determine the appropriate warehouse racking configuration, beam levels, bay widths and operating clearances. For example, a business that frequently retrieves individual pallets may need more direct access than one that stores reserve stock for longer periods. The chosen arrangement must also suit the pallets and handling equipment actually used, rather than assumed standard loads.

Available space and building constraints

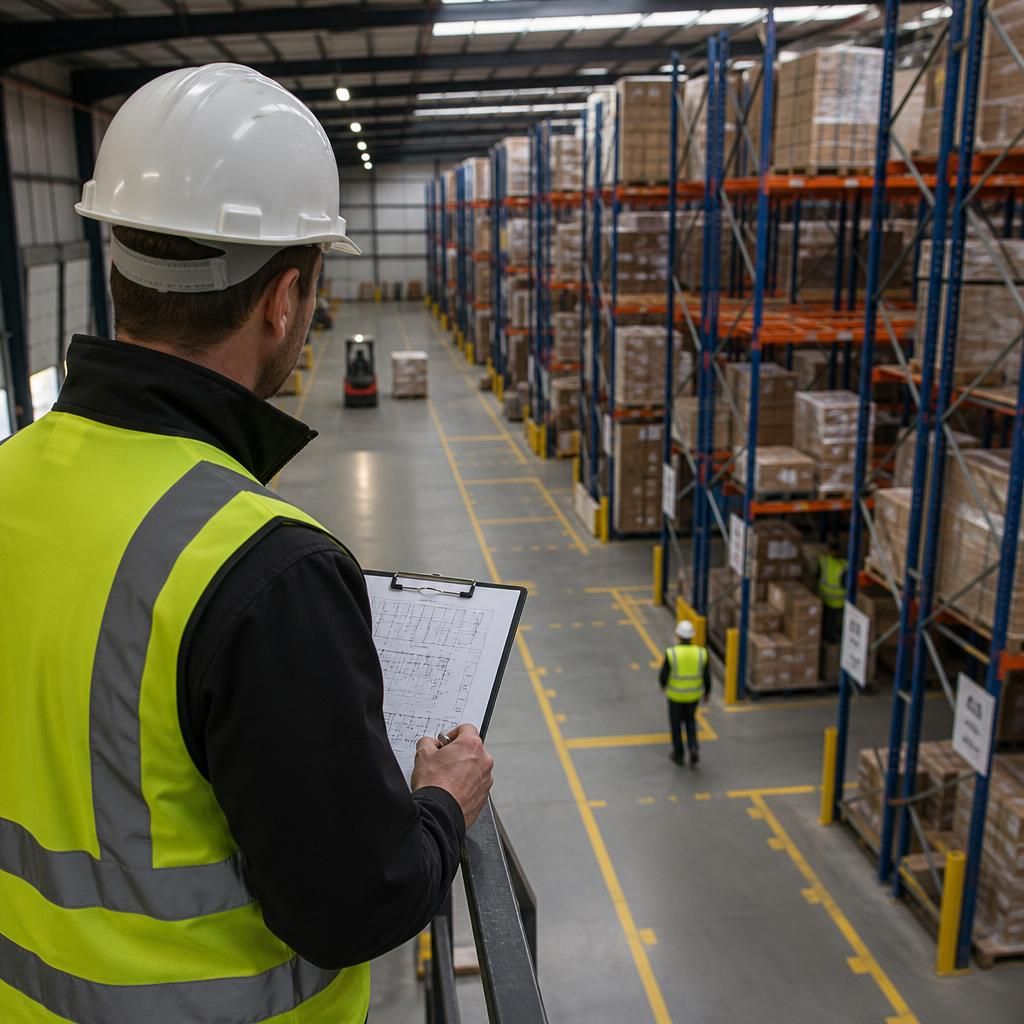

A detailed site survey is needed before finalising the layout. The survey should identify the building’s internal dimensions, clear height, columns, doors, loading bays, docks, walls, floors, lighting, sprinklers, heating systems and fixed services. Uneven or damaged floors, changes in floor level and restricted access for installation can all affect the design.

The usable height of the building should not be treated as storage space automatically. The design must allow for safe clearance below the roof and other services, sprinkler requirements, lighting, ventilation and the movement of loads during installation and operation. Structural information may also be required to confirm that the floor can support the proposed imposed loads and that the equipment is suitable for the site conditions.

Load capacity and structural suitability

Every warehouse racking component must be selected and configured for the loads it will carry. The design should account for the weight of individual loads, the number of levels, the distribution of loads, bay configuration, beam deflection limits and the forces generated during normal use. Capacity information must be clear and available to operators, with safe working load notices displayed where required.

Capacity is not determined by the appearance of a frame or beam alone. Changes to beam levels, pallet type, bay width, component condition or the original design assumptions can affect the permissible load. Where an existing system is being altered or extended, its original specifications and compatibility should be checked by a competent person before work begins.

Access, handling equipment and working clearances

A layout must match the turning circle, load dimensions, lift height and operating characteristics of the handling equipment. Forklift trucks, reach trucks, stackers and other vehicles require sufficient clearance to approach, lift, turn and place loads without striking frames or adjacent structures.

Clearances should be assessed under real operating conditions, including the largest loads, the least experienced authorised operator and any visibility restrictions. Narrower aisles may increase storage density but can require specialist equipment, tighter controls and more precise operation. The decision should be based on the complete handling process, including vehicle availability, operator training and maintenance arrangements.

Pedestrian routes should be separated from vehicle routes wherever reasonably practicable. Where routes cross, the layout should provide suitable visibility, controlled crossing points, barriers or other measures identified by a risk assessment. Emergency exits, access to fire-fighting equipment, first-aid points, electrical panels and maintenance areas must remain clear and readily accessible.

Safety, compliance and inspection access

Safety must be designed into the layout rather than added after installation. The design should reflect the relevant warehouse racking standards, manufacturer guidance, workplace transport controls, fire safety requirements and the findings of a suitable risk assessment. It should also consider falling objects, impact damage, unauthorised access, overloading, unstable loads and interaction between people and vehicles.

There must be enough space to inspect frames, beams, guards, anchors and other components properly. Layouts that leave equipment inaccessible can delay the identification of damage and make repairs more difficult. The arrangement should support regular visual checks by trained staff and formal inspections by a competent person, with damaged equipment taken out of service or controlled promptly where necessary.

Protection measures may include frame guards, end-of-aisle protection, barriers, pallet supports, back protection and protection for vulnerable building services. These measures should be selected according to the risks identified on site. They should not obstruct emergency routes, reduce required clearances or create new trip and collision hazards.

Fire protection and emergency arrangements

The layout can affect fire detection, suppression, smoke movement and evacuation. Storage height, load type, aisle arrangement and the position of obstructions should be reviewed with the building’s fire strategy and the advice of the responsible fire safety specialists. Sprinkler heads, fire doors, hydrants, alarm equipment and escape routes must not be blocked or compromised by the storage design.

Fire risk can also be influenced by the materials stored, packaging used and the separation of incompatible goods. The layout should provide clear emergency routes and allow emergency services or trained personnel to reach relevant areas where required.

Workflow and operational efficiency

Warehouse racking should support the movement of goods from receipt through storage, picking and despatch. Placing frequently accessed stock near the appropriate picking or despatch area can reduce unnecessary travel, while reserve stock may be better positioned in less accessible locations. However, product placement should also account for weight, handling risk, stock rotation and the likelihood of congestion.

Receiving and despatch zones need enough space for temporary staging without allowing goods to encroach on traffic routes or escape paths. The layout should identify where pallets are checked, wrapped, labelled, quarantined or returned. Poorly defined staging areas often lead to blocked aisles and unsafe informal storage outside the designed system.

Future change and maintainability

A good design allows for reasonably foreseeable changes in product range, stock levels, handling equipment and throughput. It may be appropriate to retain adaptable locations or allow for future extensions, provided that any later changes are assessed and approved before implementation. Unplanned alterations, additional beams or changes in load type can invalidate the original design assumptions.

Maintenance access should be considered alongside daily operations. The layout must allow damaged components to be isolated, repaired or replaced without exposing people to unnecessary risk. It should also support cleaning, lighting maintenance, fire system testing and periodic reviews of the warehouse racking arrangement.

Design verification and implementation

Before installation or modification, the proposed design should be checked against the site survey, load information, handling equipment, risk assessments and relevant guidance. Drawings should show bay positions, aisle widths, access routes, protected areas, emergency exits and any restrictions on use. Installation should follow the approved design and manufacturer instructions, with deviations reviewed rather than made informally on site.

After installation, the warehouse racking should be inspected to confirm that it has been assembled correctly, anchored where required, labelled accurately and protected against foreseeable impact. Staff should understand the permitted loads, operating rules, reporting process and restrictions on unauthorised changes. The layout should then be reviewed when the building, equipment, stock profile or working practices change.

In practice, the key test is whether the design provides the required storage capacity while preserving safe access, clear movement routes, reliable stock handling and effective inspection and maintenance. A documented, site-specific approach gives the warehouse a layout that is safer to operate and more likely to remain suitable as the business develops.
