What types of damage can occur to warehouse racking systems?

Warehouse racking systems can be damaged by vehicle impacts, falling or mishandled loads, overloading, corrosion, loose fixings, unauthorised alterations and poor installation. Damage may affect uprights, beams, bracing, footplates, anchors, protectors or load-supporting accessories, and even a defect that appears minor can reduce the system’s stability or safe working capacity. Any damaged area should be isolated where necessary and assessed promptly by a competent warehouse racking professional.

Impact damage

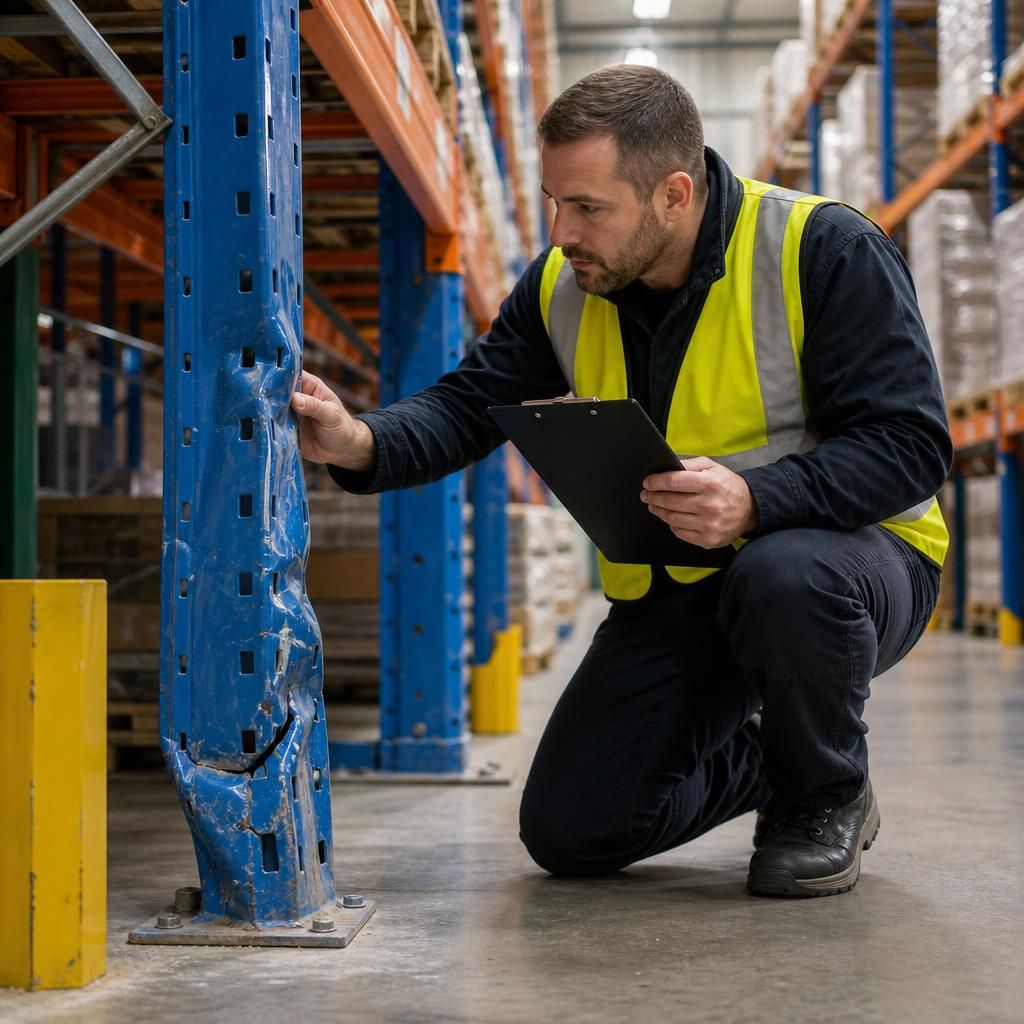

Impact from forklift trucks, pallet trucks and other handling equipment is one of the most common causes of warehouse racking damage. A collision can bend an upright, distort a beam connector, dislodge an anchor or damage a frame protector. The impact may also affect components that are not immediately visible, including bracing, floor fixings and adjacent bays.

Typical signs include dents, buckling, scraped paint, twisted components, displaced beams and damaged guards. Upright damage is particularly important because the frame transfers loads through its full height. A bent or cut section should not be straightened, welded or reused without a suitable technical assessment. Depending on the extent of the damage, the appropriate response may be unloading the affected bay, installing temporary controls, replacing components or carrying out an engineered repair.

Bent, twisted or fractured components

Components can become permanently deformed through impact, excessive loading, mishandling during installation or repeated stress. Uprights, beams, braces, supports and connectors may all be affected. A component can be unsafe even when it remains in position, because its original strength and geometry may have been compromised.

Cracks, splits, tears, sharp bends and buckled sections require particular attention. Do not assume that a component is safe because it has not completely failed. Visible distortion can indicate that the load path has changed, placing additional stress on other parts of the system. Repairs should use approved methods and compatible replacement components rather than improvised reinforcement.

Loose, missing or damaged fixings

Anchors, bolts, locking pins, safety clips and other fixings keep the structure connected and correctly positioned. They may loosen through vibration, impact, incorrect installation or maintenance activity. Fixings can also be omitted when a system is altered or components are replaced.

Missing beam locking devices, loose bolts and damaged floor anchors can allow movement or reduce resistance to accidental impact. During an inspection, fixings should be checked for presence, condition, correct fit and signs of movement. Replacing a missing item with a visually similar but unsuitable part may not provide the required performance, so replacement fixings should be specified for the particular system.

Corrosion and deterioration

Moisture, condensation, chemicals, salt, cleaning products and damaged protective coatings can cause corrosion. Rust may develop on uprights, beams, bracing, footplates, anchors and other exposed components. Corrosion reduces material thickness and can weaken connections, particularly where it is extensive, deep or located around a fixing point.

Surface discolouration is not always evidence of serious structural deterioration, but it should be recorded and monitored. Flaking coatings, pitting, perforation and corrosion around welds or anchors need a more detailed assessment. The cause should also be addressed where possible, such as controlling moisture or preventing contact with corrosive substances. Painting over corrosion without removing the cause does not restore the component’s structural capacity.

Overloading and load-related damage

Warehouse racking can be damaged when loads exceed the stated capacity, are concentrated unevenly or are stored in an unsuitable position. Overloading may cause beams to deflect, connectors to deform, frames to bow or floor anchors to experience excessive forces. Repeatedly placing heavy pallets into the wrong locations can create cumulative stress even when individual loads appear manageable.

Load notices should be available and kept accurate after any alteration. Operators should know the permitted load for each relevant beam level and bay arrangement, taking account of pallet size, load distribution and the condition of the system. If a beam is visibly sagging, a frame is leaning or a load has caused distortion, the affected location should be unloaded safely and assessed before being returned to service.

Damage caused by pallets and stored goods

Broken pallets, protruding boards, unstable goods and poorly wrapped loads can strike components or fall into adjacent locations. Pallets that are too large, damaged or incorrectly positioned may rest against frames or beams, imposing forces for which the system was not designed. Loads can also be pushed into the back of a bay, dislodging spacers, guards or rear restraint components.

Storage practices should prevent goods from contacting structural components and should maintain the required clearances. Damaged pallets and unstable loads should be removed or made safe rather than stored in a location where they could fall or impose unintended pressure on the structure.

Unauthorised alterations and installation defects

Removing braces, changing beam levels, mixing incompatible components or adding accessories without technical approval can alter the system’s load path and stability. Installation defects may include incomplete locking devices, incorrectly positioned anchors, inadequate bracing, poor levelling or components that are not properly seated.

Alterations should be planned, recorded and checked by a suitably competent person. The original design information, load requirements and floor conditions should be considered before work begins. A system that has been modified without assessment may require a detailed inspection and confirmation of its safe configuration.

Damage to protection and accessories

End-of-aisle guards, upright protectors, row spacers, pallet supports, anti-collapse devices and mesh panels can be bent, detached or missing. These items may not carry the primary load, but they help protect the structure, retain goods or control foreseeable risks. Damaged protection can leave uprights exposed to further impacts, while missing restraint components may allow goods to fall or move through the frame.

Protection should be replaced when it no longer provides the intended coverage or is no longer securely fixed. It should not be treated as a substitute for safe driving practices, suitable aisle management and effective operator training.

What to do when damage is found

Anyone who identifies damage should report it immediately, prevent further use of the affected location where appropriate and avoid moving a potentially unstable load without a safe plan. The area should be clearly identified so that it is not accidentally reloaded. A competent warehouse racking inspector can determine whether the defect requires monitoring, prompt repair or immediate action.

Photographs and inspection records can help establish what happened, but they do not replace a physical assessment. Repairs should be completed using suitable components and documented so that the system’s condition, configuration and load information remain traceable. Regular inspections, prompt reporting, good housekeeping and controlled alterations are the most effective ways to prevent small defects developing into more serious warehouse racking failures.
