What are the common signs that indicate my warehouse racking needs repairs?

The most common signs that warehouse racking needs repairs are bent or cracked frames, damaged beams, loose or missing components, corrosion, instability, misalignment, and visible deflection under load. Any impact, unexplained movement or change in condition should be reported promptly. The affected section should be isolated from use until it has been assessed by a competent warehouse racking specialist.

Damage is not always obvious from a distance. A storage system can remain upright while having reduced load-bearing capacity, weakened connections or components that are no longer correctly secured. Regular checks by warehouse staff, combined with formal inspections and prompt repairs, help identify defects before they develop into a more serious safety issue.

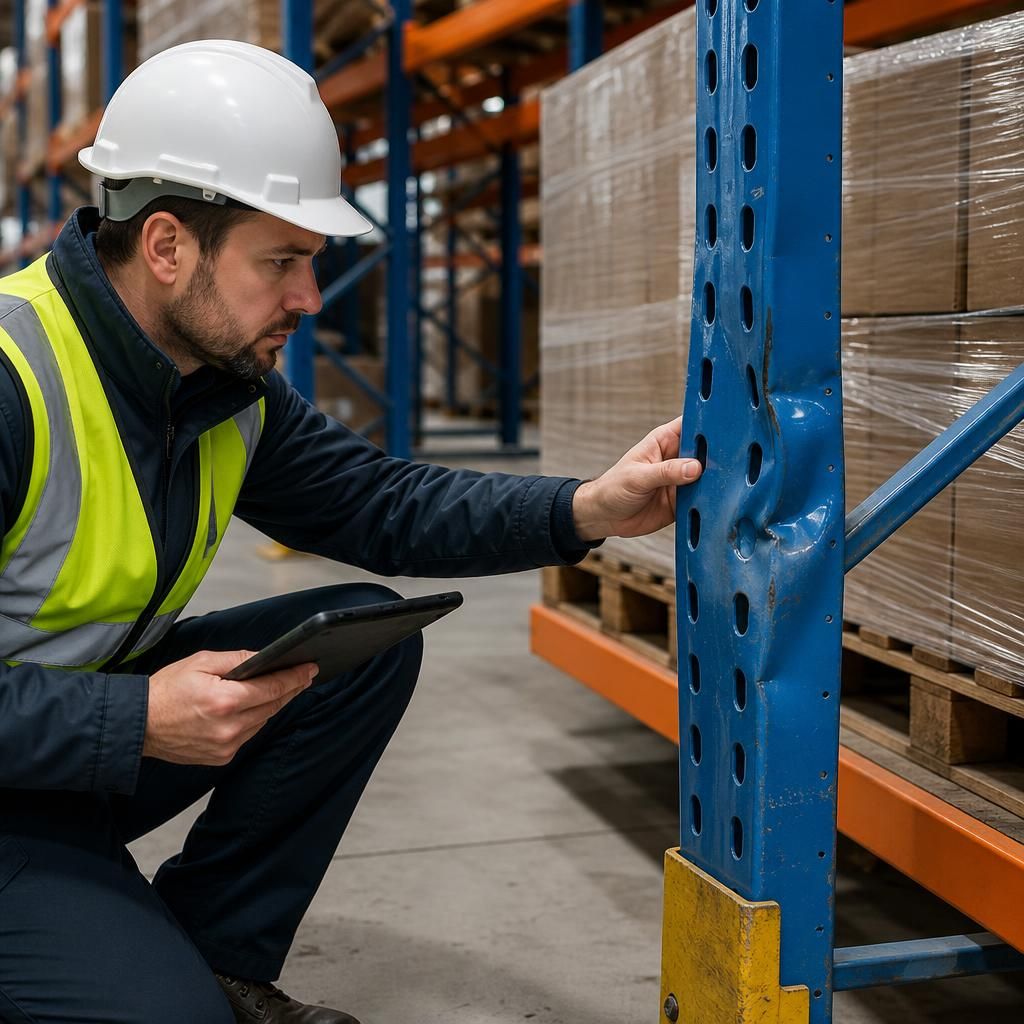

• 1. Bent, twisted or cracked frames: Upright frames should remain straight and stable. Bends, dents, splits, cracks or distortion in the uprights, bracing or frame feet can indicate impact damage or overloading. Even a small deformation can affect the way loads are transferred through the structure. Do not attempt to straighten a damaged frame or conceal the defect with paint; arrange an assessment and use an approved repair method where repair is appropriate.
• 2. Damaged, bent or visibly deflected beams: Beams may be damaged by forklift contact, incorrect loading or excessive force during handling. Warning signs include dents, twists, cracking around connections, damaged beam ends and a beam that is no longer level. Some downward deflection can occur when a beam is loaded, but unusual, permanent or increasing deflection requires investigation. Loads should be removed or reduced only where this can be done safely and in accordance with the relevant risk assessment.
• 3. Loose, missing or incorrectly fitted components: Warehouse racking depends on correctly fitted safety components, including locking pins, clips, bolts, bracing, footplates, guards and load supports. A missing locking pin, loose connection or displaced component can allow a beam or frame member to move unexpectedly. Components should not be substituted with improvised parts, welding or other unauthorised alterations. Replacement parts must be suitable for the system and installed correctly.
• 4. Impact marks or damage caused by handling equipment: Fresh scrapes, chipped paint, crushed sections, tyre marks and dents near the base of a frame often indicate contact from a forklift or other warehouse vehicle. Damage can also occur at higher levels where it is less visible from the floor. Every impact should be reported, even if the warehouse racking appears stable. The affected area should be identified, protected from further contact and examined by a competent person.
• 5. Corrosion, rust or deterioration: Corrosion can reduce the thickness and strength of steel components, particularly where warehouse racking is exposed to moisture, chemicals, cleaning processes or poor environmental conditions. Look for flaking surfaces, rust around joints and feet, pitting, bubbling paint and weakened or perforated sections. Surface discolouration is not always evidence of structural failure, but progressive corrosion should be assessed so that the cause can be addressed and suitable repair or replacement specified.
• 6. Instability, movement or misalignment: Warehouse racking should not sway, rock, lean or move when it is loaded or lightly contacted during normal operations. Frames that are out of plumb, aisles that have narrowed, beams that are not aligned or runs that have shifted may indicate impact, inadequate anchoring, damaged connections or an installation problem. Unexplained movement is a reason to stop using the affected area and obtain professional advice rather than simply tightening visible fixings.
• 7. Loads no longer sit correctly or the system shows unusual strain: Products that lean, fall forward, overhang unexpectedly or no longer sit evenly may indicate damaged supports, altered clearances or a change in the condition of the structure. Other warning signs include pallets resting on damaged beams, load supports that have moved and components showing unusual bending under normal loads. Check that the stored load remains within the stated configuration and capacity, and report any change that cannot be explained by the way goods were placed.

Additional warning signs can include damaged floor fixings, sheared anchors, missing end-of-aisle protection, broken row spacers and changes made to the system without a documented design review. Altering beam levels, adding components, changing pallet sizes or increasing load weights can affect the original design assumptions. The system should be reassessed whenever its configuration, use or operating conditions change.

What to do when damage is found

1. Stop using the affected warehouse racking location if there is a risk of collapse, falling goods or further damage.
2. Prevent access with suitable controls and keep people and handling equipment away from the hazard.
3. Report the defect to the responsible manager and record its location, type and apparent cause.
4. Where it is safe to do so, take clear photographs from a safe position and identify the affected frame, beam or bay.
5. Arrange an assessment by a competent warehouse racking specialist. The appropriate response may be immediate unloading, temporary restriction, component replacement, a designed repair or full replacement.
6. Do not return the area to normal use until the repair or control measure has been completed and its condition has been confirmed.

A temporary restriction or warning label is not a permanent repair. Damaged components should be replaced or repaired using a suitable, documented method, and the underlying cause should be considered. For example, repeated forklift impacts may require improved protection, revised traffic routes, operator training or changes to working practices as well as structural repairs.

Warehouse staff should carry out routine visual checks and report defects as soon as they are noticed. These checks support, but do not replace, a formal inspection by a competent person. A professional inspection considers the condition of the complete system, including frames, beams, connections, fixings, guards, bracing, load signs, floor condition and the way the warehouse racking is being used.

If you have noticed any of these signs, provide details of the affected location and stop using it where necessary. Able Racking can assess the damage, advise on the appropriate repair or replacement approach, and help you restore a safe and compliant storage system with minimal disruption to warehouse operations.
