What is the process for installing warehouse racking systems?

Installing warehouse racking systems is a planned, staged process that begins with a site survey and design review, then progresses through preparation, delivery, assembly, securing, inspection and handover. The installation must reflect the building, intended loads, handling equipment and working practices, with each stage checked by competent installers before the system is placed into service.

A professional installation is not simply a matter of assembling frames and beams. The finished warehouse racking system must be correctly configured, stable, protected from foreseeable impact and suitable for the loads it is intended to carry. Able Racking’s experienced operatives coordinate the technical work with your operational requirements, helping to ensure the completed installation is safe, practical and ready for inspection and ongoing maintenance.

Site survey and information gathering

The process normally starts with a detailed survey of the proposed installation area. Installers assess the available floor space, clear height, access routes, columns, doors, lighting, fire protection equipment, sprinkler arrangements and any other building services that could affect the layout. The condition and suitability of the floor are also considered, including its level, strength and ability to accept the specified fixings.

The survey also establishes how the warehouse operates. The installer will usually need information about the products being stored, pallet dimensions, unit weights, stock rotation, handling equipment, vehicle movements and the required storage capacity. These details influence the bay dimensions, aisle widths, beam levels, protection requirements and the type of warehouse racking system selected.

Design confirmation and load assessment

Once the site information is available, the proposed design is reviewed against the intended use. This includes confirming frame heights, bay widths, beam positions, working clearances and the maximum loads for each level. Load information must be clear and consistent; a system designed for one pallet type or loading arrangement may not be suitable if the stored goods, pallet condition or handling method changes.

The design review should also consider the building structure and the likely forces created during normal use. Where required, the installation design is checked by an appropriately competent person and set out in drawings or installation information. Any restrictions, such as maximum load per level, permissible pallet overhang or specific loading arrangements, should be identified before work begins.

Risk assessment and installation planning

Before the installation team arrives, the work is planned to control risks to installers, warehouse staff, visitors and other contractors. The plan should cover delivery arrangements, unloading, lifting operations, work at height, exclusion zones, manual handling, equipment movements and emergency procedures.

The warehouse operator may need to provide a clear work area, temporary access restrictions or a suitable time when nearby activities can be paused. Separating the installation zone from live warehouse operations is particularly important where forklifts, pallet trucks or other vehicles are in use. A competent installation team will explain the required controls and confirm responsibilities before starting.

Preparing the installation area

The floor and surrounding area are prepared before components are assembled. Existing stock, equipment and obstructions should be removed from the work zone, and the floor should be clean enough for accurate setting out. Installers check that the agreed dimensions remain available and that changes to the building or nearby services have not affected the design.

Setting out marks are then established to identify the position of frames, aisles and end runs. Accuracy at this stage is important because small errors can affect clearances, alignment and the relationship between the system and doors, columns or handling equipment. Any unexpected site condition should be reported and resolved rather than worked around without approval.

Delivery and component checks

Components are delivered in a sequence that supports safe and efficient assembly. On arrival, the installation team checks the frames, beams, braces, connectors, baseplates, fixings, protection and accessories against the design and delivery information. Items that are damaged, missing or visibly distorted should be isolated and reported for assessment before they are used.

Correct handling during unloading and storage is essential. Components should not be dragged across the floor, thrown down or left where they can become a trip hazard or obstruct emergency routes. Keeping parts organised also reduces the risk of fitting an incorrect component or delaying the installation.

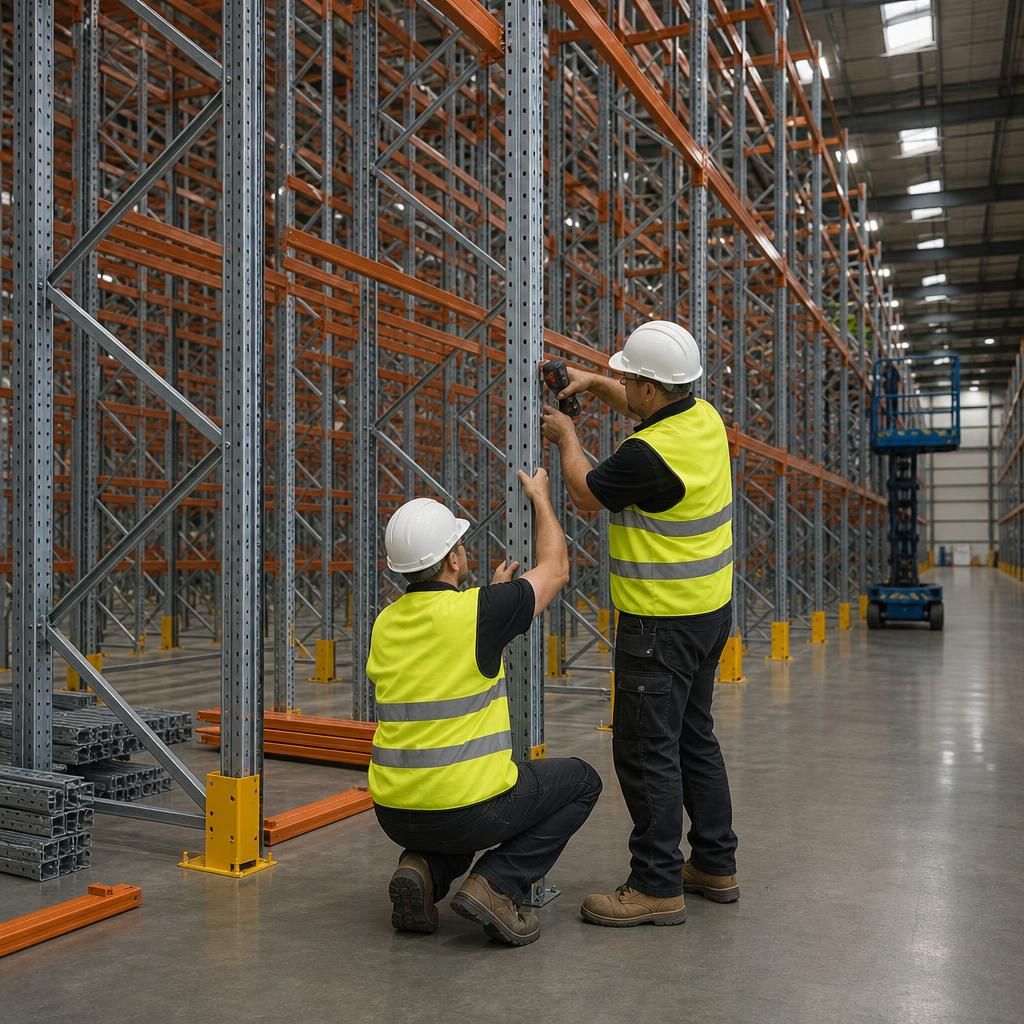

Assembling the structure

Installers assemble the upright frames and associated bracing in accordance with the approved design and the component manufacturer’s instructions. Beams are fitted at the specified levels, with connectors fully engaged and locking devices installed where required. The team checks that frames are plumb, bays are correctly spaced and components are not being forced into position.

As the installation progresses, temporary stability measures may be needed until sufficient sections have been connected and secured. Suitable access equipment and lifting methods are used for work at height. Installers should never rely on pallets, forks or improvised platforms as a substitute for proper access equipment.

Anchoring, protection and accessories

After the structure has been positioned and aligned, the uprights are secured to the floor using the specified fixings. The fixing method must suit the floor construction and the design requirements. Installers check that anchors are installed correctly and that the required tightening, spacing and edge clearances have been achieved.

Protection and accessories are then fitted where specified. These may include upright guards, end-of-aisle protection, frame protection, back protection, wire mesh, pallet supports, row spacers and safety barriers. Their suitability depends on the layout, vehicle movements, stored goods and the risks identified during the assessment. Protection should not reduce the clearances needed for safe loading or interfere with the warehouse’s normal operation.

Alignment and installation checks

Before the system is handed over, the installers carry out detailed checks on the completed work. They confirm that the warehouse racking is positioned in accordance with the design, that frames and beams are aligned, that connections and fixings are secure and that the structure is free from installation damage.

The checks should also confirm that aisles, access points and operating clearances are suitable for the intended handling equipment. Any deviation from the design, damaged component or problem with the floor or fixings must be assessed and corrected before the system is used. A visual check alone is not a substitute for confirming the details that affect structural stability and safe loading.

Load notices, documentation and handover

Once the installation has passed its checks, the required load information is displayed in a position where warehouse staff and equipment operators can see it. The notice should make the permitted configuration and loading limits clear. Loads must not be increased, repositioned or stored differently without checking the effect on the design.

Handover information may include installation drawings, inspection records, product information, load details, maintenance guidance and recommendations for protecting the system during use. The warehouse team should understand the loading rules, reporting arrangements and the action to take if a component is struck or damaged.

Inspection and putting the system into use

The completed installation should be inspected by a suitably competent person before normal warehouse operations begin. This provides an independent check that the system is correctly installed and suitable for its intended use. Any outstanding items should be recorded, assigned and closed out before access is unrestricted.

After handover, the system remains the responsibility of the warehouse operator. Staff should report damage, overloading, missing components or changes to the layout promptly. Regular visual checks and scheduled expert inspections help identify problems before they affect safe operation. If the warehouse racking is altered, relocated or used for different loads, the design and safety arrangements should be reviewed before the change is made.

Using an experienced installation team for every stage helps provide a clear audit trail from the initial survey to final handover. It also ensures that practical issues are identified early, the structure is assembled as designed and the warehouse can begin using its new storage system with the appropriate safety information and controls in place.
