How do I determine the correct load capacity for selective pallet racking in my warehouse?

The correct load capacity for selective pallet racking is determined by assessing the complete installation rather than calculating the beam capacity alone. You must confirm the maximum loaded pallet weight and dimensions, the number and position of storage levels, the beam and upright specifications, the floor and anchorage conditions, and the original manufacturer’s design information. Where that information is unavailable or the system has been altered, a competent structural specialist should verify the capacity before the installation is used.

Start with the actual loads to be stored. Establish the maximum gross weight of each pallet, including the goods, pallet, packaging and any wrapping or containment. Use the heaviest realistic load rather than an average pallet weight. Also record the pallet length, width, height and type, together with how the load is supported. A pallet that is suitable for floor storage may not be suitable for storage on beams if its boards, runners or underside do not provide adequate support.

Consider how the load is distributed across the beams. A uniformly distributed pallet load is assessed differently from a concentrated or uneven load. Loads that overhang the beams, have a narrow contact area or are liable to shift can create forces that are not reflected by the pallet’s total weight. If goods are stored on stillages, containers or timber boards, include the weight and design of those items in the assessment.

Confirm the proposed storage layout. Capacity depends on more than the weight of an individual pallet. The assessment should identify:

• the number of beam levels in each bay;
• the clear height between levels;
• the beam span and beam profile;
• the number of pallets stored per level;
• the position of each level within the upright frame;
• the width and depth of the bays;
• the planned loading and unloading method; and
• any restrictions on mixed pallet sizes or load arrangements.

Moving a beam level, adding a storage level or changing the pallet arrangement can alter the forces within the frame. The capacity shown for one configuration must not automatically be applied to another configuration, even where the same beams and uprights appear to have been used.

Check the manufacturer’s design information. The most reliable starting point is the original technical documentation, including beam and frame specifications, permissible load tables, installation drawings and the intended bay layout. The load capacity must relate to the exact components and configuration installed. Components that look similar can have different capacities, and combining parts from different systems without approval can make the manufacturer’s rating invalid.

Do not rely on a capacity label from an adjacent bay, an old quotation or an assumption based on the size of the steel. If the manufacturer’s information cannot be traced, the system has been modified, or damage and corrosion are present, arrange an assessment by a suitably competent person. A structural engineer or other specialist with relevant pallet storage experience may need to calculate the capacity from measured dimensions, component details and site conditions.

Assess the beams and upright frames together. Beam capacity is usually affected by span, beam profile, connection details, loading arrangement and the amount of deflection permitted. The upright frames must also be capable of carrying the combined loads from the beams above them. Their capacity can be affected by frame height, depth, bracing, bay arrangement, baseplates, anchors and the way the frames are connected.

The lowest beam level is not necessarily the governing part of the system. Higher levels may increase the load carried by the uprights, while a tall or heavily loaded frame may be more sensitive to stability and impact. The assessment should therefore consider the full run or bay arrangement, not just an isolated beam pair.

Verify the warehouse floor and anchorage. The floor must be capable of supporting the reactions transferred through the upright baseplates. Check the concrete specification and condition, slab thickness where relevant, joints, cracks, drainage channels and any restrictions on drilling. Anchors must be suitable for the floor and installed correctly. A beam and upright design cannot be treated as safe if the floor or anchorage cannot transfer the resulting forces.

Account for the operating environment as well. Forklift impact, poor visibility, restricted aisles, uneven floors and frequent changes to the stored goods can increase the risk of damage or overloading. Protection such as upright guards may reduce impact damage, but it does not increase the rated capacity of the storage system unless the design specifically allows for it.

Allow for operating loads and safe clearances. Pallets should be placed centrally and securely, with sufficient clearance from beams, uprights, adjacent loads and overhead obstructions. The required clearances depend on the equipment, pallet dimensions and handling method. They must allow the operator to deposit and retrieve loads without striking the structure or placing loads on beams, bracing or unsuitable supports.

Capacity calculations should reflect the way the system will actually be used. For example, a design based on evenly distributed pallets may not be suitable where loads are placed off-centre, stacked unevenly or handled with attachments. Any change in pallet type, load weight, forklift arrangement or storage level should trigger a review of the original assessment.

Use the load notice as a control, not as the calculation. Once the capacity has been confirmed, provide a durable and clearly visible load notice for each relevant installation. It should state the approved configuration and the maximum permitted loads in terms that warehouse operators can understand, including any restrictions on beam levels, bay loading or pallet positions. The notice must match the actual layout and remain visible after operational changes.

Staff should know that a load notice is not permission to exceed the stated limits. They should also be instructed not to place damaged pallets, unstable loads or goods that obstruct the safe operation of the system into storage. If a load cannot be identified or its weight is uncertain, it should not be treated as compliant simply because it fits within the bay.

Reassess after changes or damage. Obtain a fresh capacity review if you:

• replace beams, frames, bracing, baseplates or anchors;
• alter beam levels or bay dimensions;
• extend a run or connect it to another system;
• change the pallet type or maximum load;
• introduce new handling equipment or attachments;
• relocate the installation; or
• find impact damage, distortion, corrosion or loose components.

Damaged components should be unloaded or isolated according to the severity of the damage and the site’s safety procedure. Repairs must use approved replacement components and follow the system designer’s or manufacturer’s instructions. Straightening damaged steel on site or substituting an apparently compatible component can change the structural performance and should not be used as an informal solution.

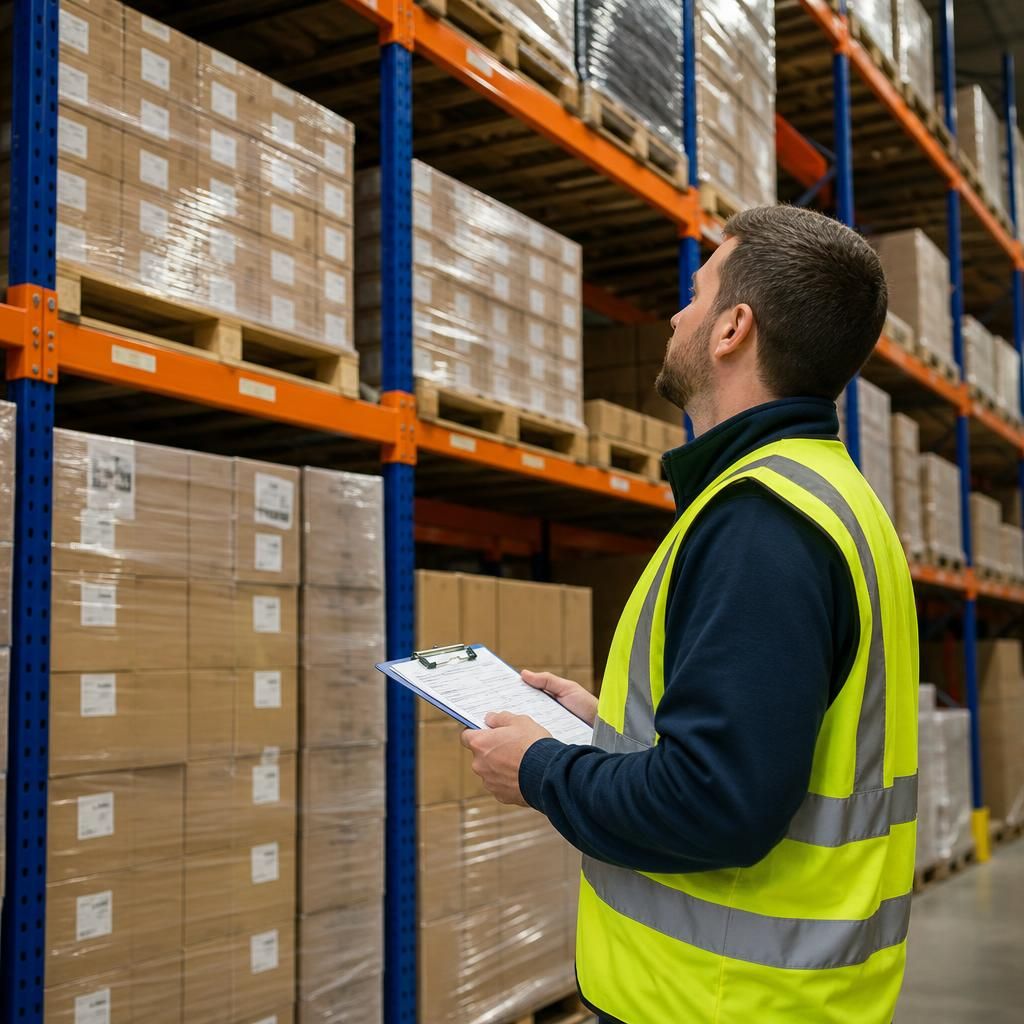

In practice, the safest process is to survey the installation, record the components and dimensions, confirm the intended pallet loads and layout, check the manufacturer’s design data, and obtain a competent engineering assessment where any part of the information is uncertain. The completed system should then be inspected at appropriate intervals, with regular visual checks by trained staff and a documented expert inspection in line with the manufacturer’s instructions and recognised guidance such as BS EN 15635. This provides a defensible basis for the displayed capacity and helps ensure that the selective pallet racking remains suitable for the warehouse operation.
