What factors determine the choice of warehouse longspan uprights for optimal storage performance?

The choice of warehouse longspan uprights is determined by the loads they must support, the required bay dimensions, beam compatibility, available floor space, operating conditions and the safety requirements applying to the installation. Uprights should be selected as part of a complete warehouse racking system, rather than treated as interchangeable components, because their profile, height, depth, spacing and connection details all affect stability, capacity and day-to-day usability.

Load capacity and stored goods

The starting point is the total load each bay and level must carry. This includes the weight of the products, shelving or support components, pallets or containers where applicable, and any handling equipment that places loads into the system. The load should be assessed in its actual distribution, as a uniformly spread load creates different demands from concentrated or unevenly positioned items.

Longspan uprights must have sufficient strength and stiffness for the proposed configuration. The selected section should account for the height of the upright, the number and position of beams, the bay width and the way loads are transferred through the frame. Heavy, dense or awkwardly shaped goods may require a stronger upright profile or additional support components. Capacity information should come from the system manufacturer or a suitably qualified warehouse racking specialist, not from visual comparison with another installation.

Upright height, depth and bay dimensions

Upright dimensions need to suit both the available building space and the storage objectives. Height is affected by the clear height of the building, obstructions such as lighting and sprinkler services, safe clearance above stored goods, and the practical reach of the handling equipment. Selecting the tallest possible frame is not automatically the most efficient option if it restricts access or reduces operating clearances.

Upright depth should provide suitable support for the stored items without creating unnecessary loss of aisle or floor space. Bay width influences the span of the beams and the load transferred to each frame. It should reflect the dimensions of the products, pallets, containers or shelving decks, while allowing safe placement and retrieval. Tight clearances can increase the likelihood of impact damage, whereas excessive clearances may waste capacity.

Beam and component compatibility

Longspan uprights must be compatible with the beams, clips, braces, feet, decking and other components used in the proposed warehouse racking layout. Connection geometry is particularly important: a beam may appear to fit an upright but still be unsuitable if its locking mechanism, connector or load-transfer arrangement is not designed for that frame.

When extending or modifying an existing installation, confirm the original manufacturer, component specification, section profile, hole pattern and connection type wherever possible. Mixing components from different systems without technical approval can alter the rated capacity and may prevent the installation from being assessed as a complete, engineered system. A competent specialist should verify compatibility before additional bays or replacement frames are ordered.

Warehouse layout and available space

The surrounding layout affects the most suitable upright arrangement. Consider aisle widths, pedestrian routes, loading and unloading areas, emergency access, doors, columns, fire protection equipment and the movement of handling equipment. The frame position should not obstruct services or create avoidable collision risks.

Upright spacing should support the required storage density without compromising access or stability. A layout based solely on maximum capacity may be inefficient if it slows picking, limits stock visibility or makes inspections and repairs difficult. The best arrangement balances usable storage volume with safe operation, clear access and the ability to adapt the system as stock profiles change.

Building and floor conditions

The supporting floor must be suitable for the imposed loads and the proposed base arrangement. The assessment should consider slab condition, level, thickness, joint locations, local damage and the method used to anchor the uprights. Uneven or damaged flooring can affect frame alignment and may place additional stress on connections.

Site measurements should be checked before installation, particularly in older buildings or areas that have been altered. Uprights must be positioned so that anchors can be installed correctly and do not conflict with floor joints, services or damaged concrete. Where the floor condition or loading is uncertain, obtain appropriate technical advice before proceeding.

Operating environment

The environment can influence the required finish, protection and inspection frequency. Factors include humidity, temperature changes, dust, corrosive substances, wash-down procedures and exposure to outdoor conditions. In demanding environments, the upright specification may need additional corrosion protection or a design that allows practical cleaning and inspection.

The type of handling activity is also relevant. Areas served by forklift trucks or other powered equipment may need suitable end-of-aisle protection, upright guards and a layout that reduces impact exposure. Protective equipment does not replace careful operation or routine inspections, and damaged frames should be isolated and assessed promptly.

Safety, design and legal requirements

The selected uprights must form part of a properly designed warehouse racking installation. The design should include the intended loads, configuration, anchorage, bracing, beam levels, floor conditions and any required protection. It should also reflect the way the system will be loaded, unloaded, inspected and maintained in normal use.

Applicable British and European standards, manufacturer guidance, workplace safety duties and site-specific risk assessments should be considered. A competent person should confirm the design and provide the relevant load information, including any restrictions on beam levels or configuration changes. Load notices should accurately describe the approved arrangement and should be updated if the system is altered.

Future requirements and adaptability

Current stock is not the only consideration. Review likely changes in product dimensions, inventory weight, handling methods and storage volume before selecting the uprights. A system with some capacity for controlled adjustment may provide better long-term value than one designed only around today’s stock.

However, adjustability has limits. Moving beams, adding levels or changing bay widths can affect the structural behaviour of the frames and may invalidate existing capacity information. Any proposed modification should be checked by the manufacturer or a qualified warehouse racking professional before work begins.

Condition of existing components

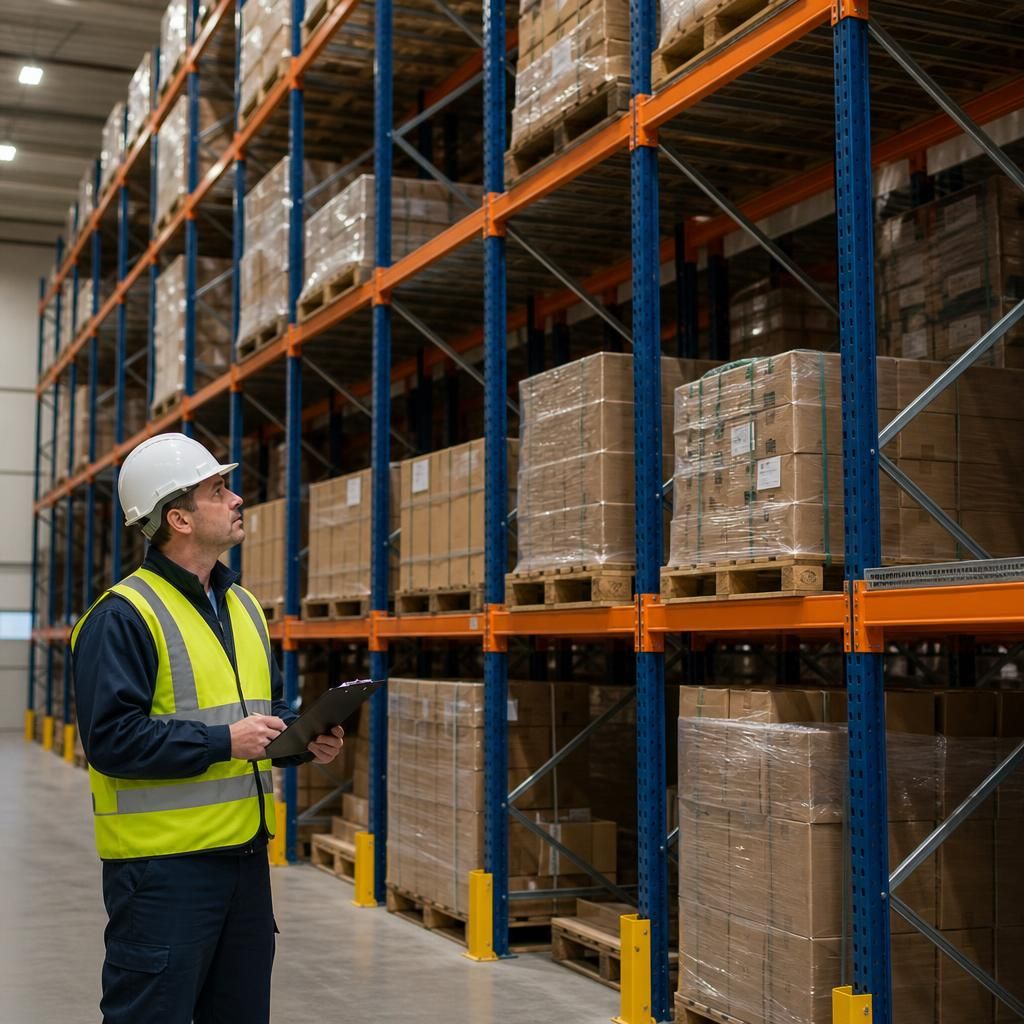

For replacement or extension work, inspect the existing uprights for dents, bends, corrosion, split welds, damaged bracing, loose anchors and signs of impact. The condition of neighbouring bays and connected components is also relevant because a new frame may be affected by weaknesses elsewhere in the run.

Do not select replacement uprights based only on matching appearance or dimensions. Confirm that the replacement has the correct structural specification and is suitable for the existing beams and accessories. Where damage is present, the affected area should be made safe and assessed in line with the site’s warehouse racking inspection procedure.

Practical selection process

1. Record the products, containers and handling equipment the system will support.
2. Calculate the intended bay and level loads, including how each load will be distributed.
3. Measure the building, floor area, clear height, obstructions and access routes.
4. Confirm beam, connector, bracing, base and anchorage compatibility.
5. Check floor suitability and identify environmental or impact risks.
6. Obtain a documented design and capacity information from a competent specialist.
7. Review the completed installation and arrange ongoing inspections and maintenance.

In practice, the optimal longspan upright is the one that provides the required structural capacity while fitting the building, the existing warehouse racking components and the way the site operates. A documented assessment by experienced operatives helps prevent unsuitable substitutions, protects storage performance and ensures that any future changes are made safely.
