How can warehouse racking uprights be adapted for different load requirements?

Warehouse racking uprights can be adapted for different load requirements by selecting an appropriate upright profile, frame depth, bracing arrangement and beam configuration, then checking the complete installation against the manufacturer’s load data. The uprights must be assessed as part of the whole warehouse racking system, because changes to pallet weight, load distribution, bay width, beam levels or operating conditions can affect the frame’s capacity and stability.

Choose the correct upright profile

Upright profiles are available in different sections, gauges and steel grades. A heavier-duty profile may be required where the system carries heavier pallets, greater loads at lower levels or a higher proportion of concentrated loads. The profile must also suit the frame height, beam span, bay arrangement and anticipated impact forces.

Increasing the apparent thickness of an upright is not, by itself, proof that the system is suitable for a revised load. Capacity depends on the complete design, including the profile geometry, perforations, bracing, connections, anchorage and the condition of the steel. The manufacturer’s specifications or a competent structural assessment should therefore be used when selecting replacement or upgraded uprights.

Review frame depth and load distribution

Frame depth affects how loads are supported and how forces are transferred through the uprights and bracing. The depth should match the pallet dimensions, clearance requirements and the way goods are positioned within each bay. Loads that overhang, sit unevenly or are placed too close to the front or rear of a frame can create forces that were not allowed for in the original design.

Where goods have different weights or dimensions, load distribution should be planned rather than relying on the heaviest items being placed wherever space is available. Heavier loads are commonly positioned at lower levels where the system design permits this, while upper levels must remain within their stated beam and frame capacities. The load should be supported evenly, with no unsupported pallet edges or unstable overhangs.

Adapt beam levels and bay arrangements

Changing beam positions can alter the forces within the uprights and affect the capacity of both the beams and the complete frame. A lower beam level may reduce the effective height of an upright, while a different arrangement of beam levels can change the way loads are distributed through the frame. These changes must be confirmed against the manufacturer’s design information.

Bay width is also important. A wider bay may provide more storage space but can place greater demands on the beams and their connections. Narrower bays can change the number of frames required and may affect the overall stability of a run. Upright spacing, beam length and frame bracing should be considered together rather than adapted independently.

Allow for the type of load

The stated weight of a pallet is only one part of the assessment. The load may be uniformly distributed, concentrated over small contact areas, flexible, unstable or liable to shift during handling. These characteristics influence the required beam capacity, pallet support arrangements and the forces transferred into the uprights.

Loads that are unusually dense, narrow, long or difficult to position may require additional support components or a different storage configuration. Pallets should be compatible with the beam arrangement, and any use of support bars, decking or specialist accessories should be approved for the intended loading. Accessories must not obstruct the connections, bracing or inspection of the uprights.

Strengthen stability and anchorage

Higher or heavier loads can increase the need for effective bracing, secure baseplates and suitable floor anchorage. Uprights should be plumb, correctly connected and fixed to a floor capable of accepting the design loads. The surrounding floor condition, slab strength and any unevenness should be checked before increasing capacity.

Additional bracing or ties may be appropriate in some designs, but these should only be introduced in accordance with the manufacturer’s instructions or an engineered design. Drilling, cutting, welding or otherwise altering an upright on site can weaken the component and may invalidate its load data. Damaged uprights should normally be replaced with compatible components, not repaired through unauthorised modification.

Use protection to preserve the designed capacity

Upright protection does not increase the rated capacity of the frame, but it can help reduce damage from handling equipment. Protection should be selected to suit the location, traffic pattern and likely impact forces, while maintaining required clearances and access for inspection. A protection system that transfers impact into the frame or obstructs baseplates may create additional problems if it is poorly fitted.

Where the load requirement has increased, protection should be reviewed at the same time as the structural arrangement. Clear aisle layouts, suitable handling procedures and visible load notices also help prevent the system being used beyond its intended limits.

Confirm the revised configuration before use

1. Record the proposed pallet weights, dimensions, storage levels and loading method.
2. Identify the existing upright profile, frame depth, bracing arrangement, beam sizes, connections and anchorage.
3. Check the condition of the components, including corrosion, dents, distortion, loose fixings and damaged bracing.
4. Obtain the relevant manufacturer’s load tables, drawings and component compatibility information.
5. Ask a competent warehouse racking specialist to assess any change that is not directly covered by the original design.
6. Install only approved compatible components and ensure the revised arrangement is correctly assembled and anchored.
7. Update load notices, layout drawings and operating instructions before the system is put back into service.

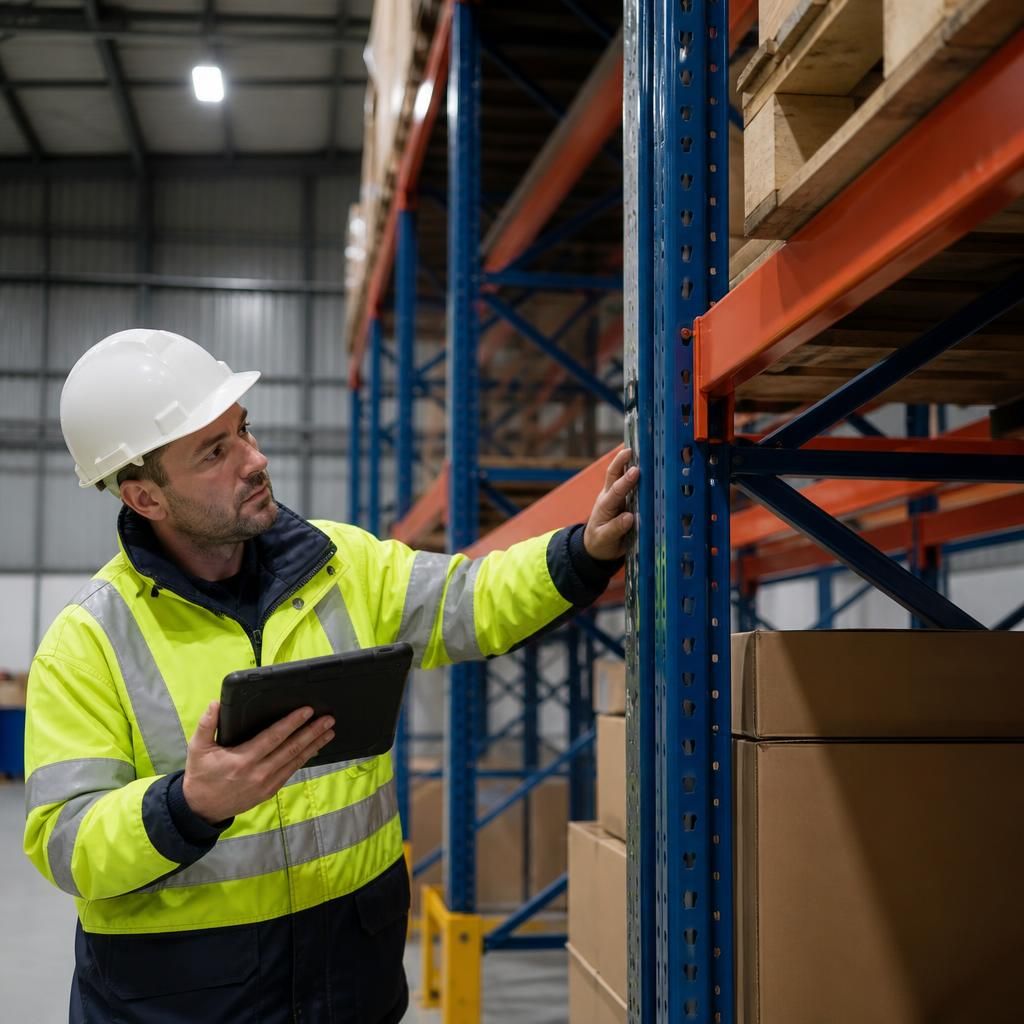

Once adapted, the warehouse racking should be inspected to confirm that the uprights are plumb, the bracing and connections are secure, the beams are correctly seated, the anchors are effective and the stated loads are clearly displayed. Routine visual checks by trained staff should continue, with a formal expert inspection carried out at suitable intervals and after any significant alteration, impact or change in use.

The safest approach is to treat an upright adaptation as a design change rather than a simple component replacement. A competent assessment can establish whether the existing frame can accommodate the revised requirements or whether uprights, beams, bracing, anchorage or the complete bay arrangement need to be changed. This protects the structure, supports compliance and helps ensure the warehouse racking performs reliably under its actual working loads.
