How can I ensure compatibility between warehouse longspan uprights and existing racking systems?

Compatibility between warehouse longspan uprights and an existing warehouse racking system must be confirmed through a technical comparison of dimensions, connections, load capacity, structural condition and manufacturer requirements. Components that appear similar are not automatically interchangeable. Before installation or alteration, a competent person should verify that the proposed uprights work with the existing beams, bracing, decking, protection and other connected components as a complete system.

Start with the original system information

Identify the manufacturer, system type, component references and original design information wherever possible. The most useful records include layout drawings, load notices, installation instructions, inspection reports and details of any previous repairs or alterations. Manufacturer information may confirm whether the longspan uprights were designed for the existing beam profiles and connection method.

If records are unavailable, the system should be surveyed carefully rather than identified by appearance alone. Measure and record the upright profile, section dimensions, hole pattern, bay width, frame depth, beam levels and the position of bracing. Photograph connection points and any identification labels. These details allow an experienced assessor to compare the proposed components with the installed system and identify incompatibilities that may not be visible during a basic visual check.

Check the physical connections

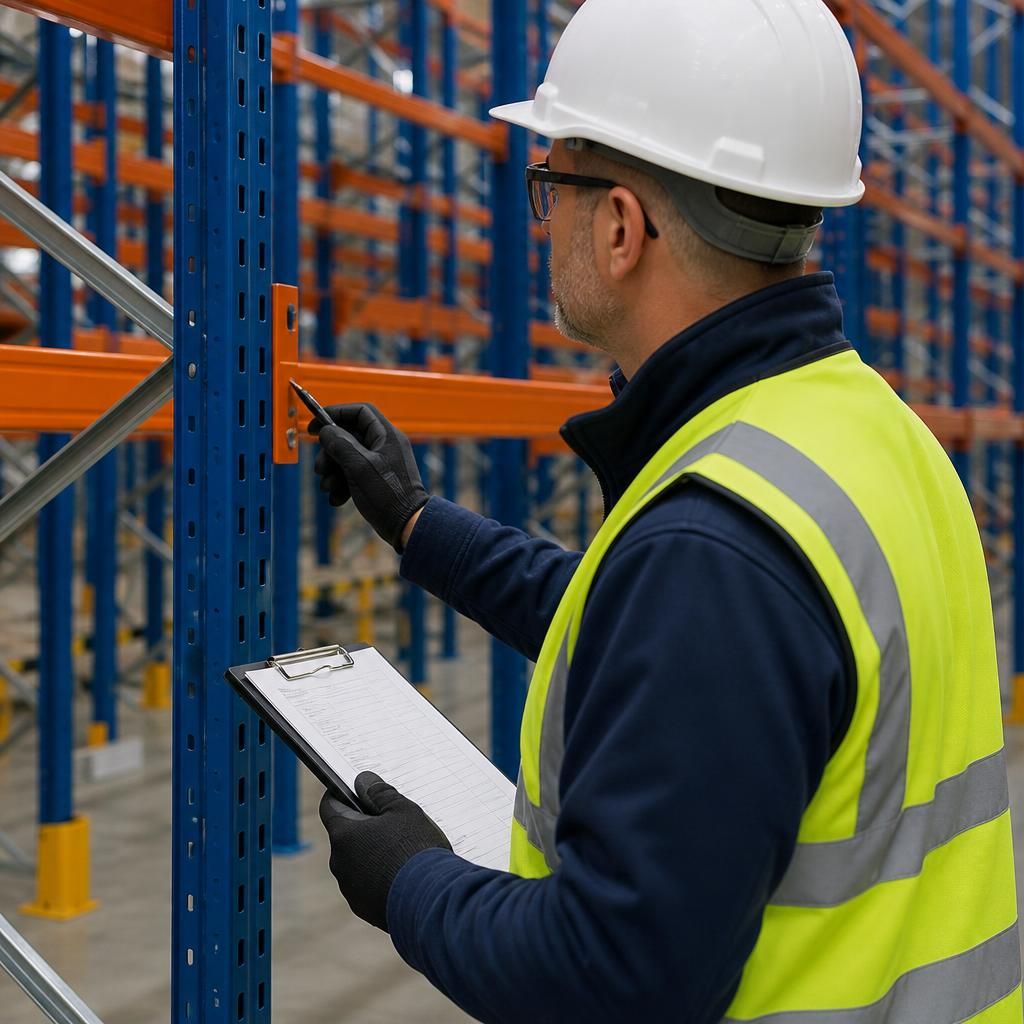

The connection between the beam and upright is a critical compatibility point. Confirm that the beam end connector fits the upright profile, that its locking feature engages correctly and that the connection is seated in the intended position. The hole pitch and shape must also match. A connection should never be made by forcing components together, enlarging holes, cutting parts or using improvised fixings.

Check whether the proposed upright requires a particular beam connector, locking pin, brace attachment or base arrangement. Small differences in profile thickness, aperture shape or connector geometry can affect how loads are transferred through the frame. A beam that physically enters an upright is not necessarily providing a compliant or adequately restrained connection.

Compare dimensions and layout

Compatibility also depends on the geometry of the complete warehouse racking bay. Compare the following characteristics:

• Upright height, width, depth and profile shape.
• Distance between frame centres and the available bay width.
• Frame depth and the bearing requirements of the beams, decking or other load supports.
• Beam elevations, adjustment positions and the available clearances.
• Brace locations, frame configuration and the direction in which loads are transferred.
• Baseplate dimensions, floor fixings and the condition of the supporting floor.
• Clearances for handling equipment, building elements, sprinklers, doors and escape routes.

A change in upright dimensions can alter the usable storage space, beam span, stability and aisle clearances. It may also affect the position of load notices and the suitability of existing protection. The layout should therefore be checked as an assembled structure, not just as a collection of individual parts.

Confirm load capacity and structural behaviour

The replacement or additional uprights must have sufficient capacity for the loads imposed by the intended configuration. This includes the weight of stored goods, pallets or containers, beams, decking and other permanent components, together with relevant forces from loading activity and the surrounding structure.

Do not transfer a load rating from one upright to another simply because both are described as longspan components. Capacity can depend on the steel grade, profile thickness, unsupported height, bracing arrangement, beam levels, frame depth, base restraint and connection design. The capacity of the complete frame may be limited by the weakest component or by the way the components interact.

Check that the existing load notice remains accurate after any change. If the upright profile, beam arrangement, bay width or bracing is altered, the original design assumptions may no longer apply. A competent structural assessment may be required before the system is put into service.

Assess the condition of the existing components

New warehouse longspan uprights should not be combined with damaged or unsuitable existing components. Inspect the connected frames for impact damage, bends, twists, corrosion, cracked welds, displaced beams, missing locking devices, loose anchors and damaged bracing. Pay particular attention to the upright bases and the areas around beam connections, where damage can affect stability and load transfer.

Components with permanent deformation or uncertain history should be assessed by a competent person. Straightening, welding, drilling or other unauthorised modification can change the strength and behaviour of a component. Repair or replacement should follow a documented method approved by the relevant manufacturer or a suitably qualified engineer.

Consider standards, instructions and site controls

The completed installation should be assessed against the applicable warehouse racking safety requirements, the manufacturer’s instructions and the design information for the system. In the UK, inspection and safe-use arrangements are commonly considered alongside recognised guidance such as BS EN 15635, where applicable to the installation. The precise assessment depends on the system type, use, environment and design.

Installation should be carried out by trained, competent operatives using the correct sequence and tools. The work area should be controlled so that warehouse traffic, stored loads and other activities do not expose people to avoidable risk. Once complete, update the layout and load information, record the components used and arrange an inspection before normal operation.

Use a documented compatibility check

A practical compatibility review should record the proposed component references, measurements, connection findings, load assumptions, condition assessment and any restrictions. It should state whether the components are suitable, what remedial work is needed and whether further design verification is required. This creates a clear record for future inspections and prevents unapproved substitutions during later repairs.

Where the manufacturer cannot confirm compatibility, or where the existing system has been modified over time, obtain an assessment from a competent warehouse racking specialist before combining the components. Able Racking can support this process through detailed inspections, identification of damage or non-standard alterations, and practical advice on safe repairs and maintenance. The aim is to confirm that the complete storage structure is stable, compliant and suitable for its intended loads before it is used.
