What factors should be considered when planning the installation of narrow & high-bay longspan warehouse racking systems?

Planning the installation of narrow and high-bay longspan warehouse racking systems involves coordinating the building, storage requirements, handling equipment, load capacity, access arrangements and safety controls before any components are ordered or installed. A suitable design must use verified load information, reflect the warehouse’s actual operating conditions and be reviewed by a competent specialist so the finished system is safe, practical and compliant.

Assess the building and available space

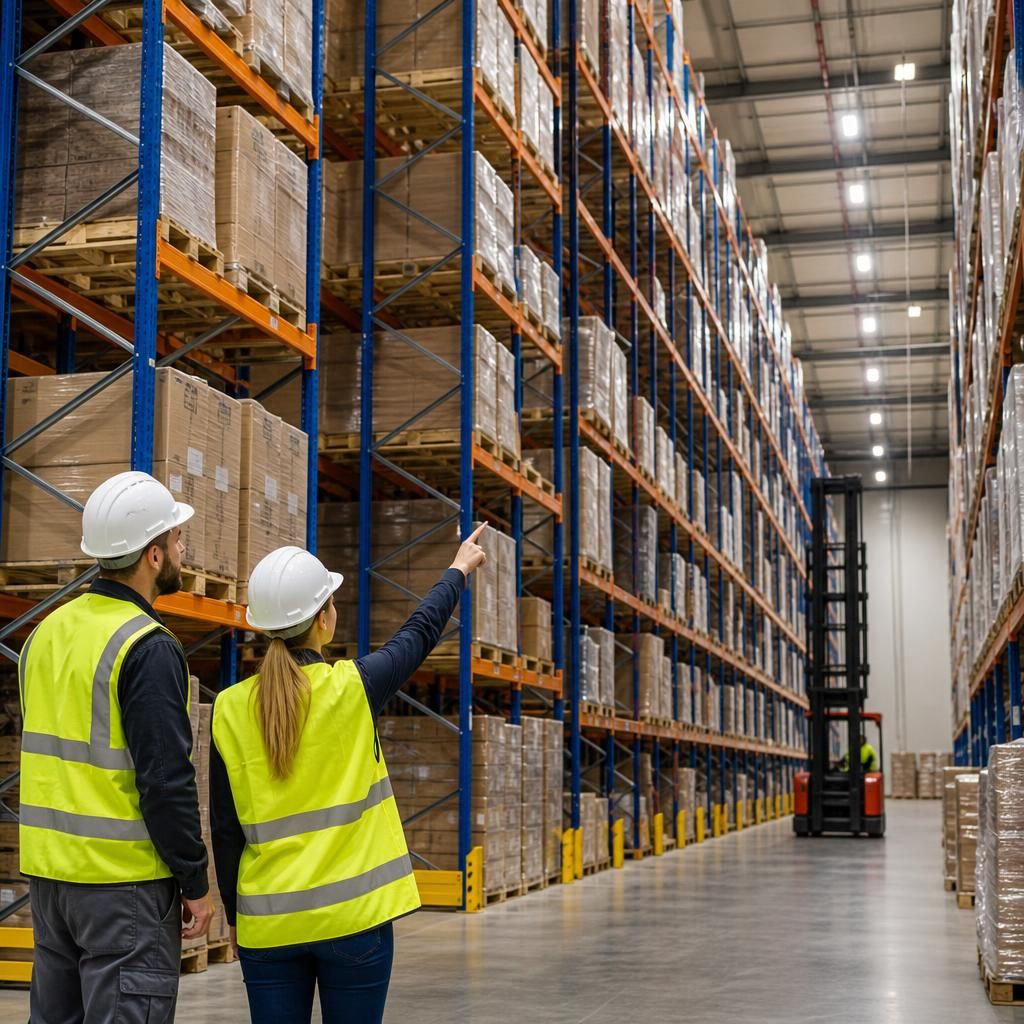

Begin with a detailed survey of the proposed installation area. Record the clear internal height, floor condition, column positions, doors, loading bays, lighting, sprinklers, fire exits, emergency routes, services and any obstructions. High-bay warehouse racking makes use of vertical space, so the design must allow for roof structure, overhead services, lighting and firefighting provisions rather than simply using the greatest possible height.

The survey should also identify floor levels, damaged concrete, joints, drainage channels and areas where the slab may be unsuitable for rack loads or floor fixings. The building’s structural information should be checked where the system is close to walls, roof members or other supporting elements. Warehouse racking must not be attached to, or allowed to interfere with, building components unless the arrangement has been specifically designed and approved.

Define the storage requirement

Establish what will be stored, how it will be presented and how frequently it will be accessed. The design may need to accommodate cartons, containers, bins, packaged goods or other unit loads, each with different dimensions, weights and handling requirements. Capture the maximum load rather than relying on an average item size, and allow for variations in product range and packaging.

Consider whether goods will be stored directly on beams, on pallets, on shelves or in containers. Confirm the required clearances for loading and retrieval, including space above each load, between adjacent loads and at the rear or sides of the system. These clearances should support safe handling without reducing the stated capacity of the warehouse racking.

Calculate load capacity correctly

Load capacity should be assessed for the complete system, not just individual beams. The calculation may include upright capacity, beam capacity, shelf or deck capacity, base plates, floor fixings, connections and the effect of the proposed bay configuration. Unevenly distributed loads, concentrated loads and repeated handling can affect performance, so the design must reflect how the system will actually be used.

Obtain reliable information for every stored load, including its weight, dimensions, centre of gravity and support points. Do not assume that a component from an existing installation can be reused in a new layout without checking its specification and condition. Load notices should be provided and kept visible once the system is installed, and operational procedures should prevent loads exceeding the stated limits.

Plan the aisle and access arrangement

Narrow layouts require particularly careful coordination between the warehouse racking and the equipment used to service it. Confirm the type and dimensions of forklift trucks, order pickers, reach trucks or other handling equipment, including turning requirements, lift height, mast configuration and operating clearances. Aisle widths must support the intended manoeuvres and should not be based solely on the footprint of the stored load.

Map pedestrian routes, vehicle routes, crossing points, charging areas and maintenance access. Separate people and vehicles wherever reasonably practicable, using barriers, marked walkways and controlled crossing points where the risk assessment identifies a need. The layout must also preserve access to fire exits, emergency equipment, electrical panels and other essential facilities.

Consider fire protection and workplace safety

Check the proposed layout against the site fire risk assessment and the requirements of the responsible fire safety professional. Warehouse racking can affect sprinkler coverage, smoke movement, escape routes and access for emergency response. The design should therefore be coordinated with the building’s fire strategy, sprinkler contractor and other relevant specialists where necessary.

Include protection against foreseeable impact from handling equipment. Depending on the risk assessment, this may involve upright guards, end-of-aisle protection, barriers, bollards, mesh panels or controlled vehicle routes. Protection should not obstruct inspection, reduce required clearances or create new trip and access hazards.

Check the design and component compatibility

All components should be suitable for the proposed bay configuration and compatible with one another. Check the condition, dimensions, connection type, beam profile, upright section, bracing, decking and fixings before incorporating existing components into an altered installation. Mixing components without confirmation from a suitably competent designer can invalidate capacity information and make the system difficult to inspect safely.

The design should be documented so that the installer can follow the intended arrangement. This should include the layout, elevations, component specifications, load information, fixing details, protection measures and any restrictions on use. Changes made during installation should be recorded and reviewed rather than being treated as informal adjustments.

Prepare the installation method

Installation planning should cover delivery, unloading, storage of components, assembly sequence, lifting equipment, exclusion zones and the control of work at height. The method statement and risk assessment should reflect the actual warehouse, including restricted aisles, live operations, other contractors and nearby vehicles.

Where work takes place in an operating facility, agree how areas will be isolated and how stock, pedestrians and vehicles will be kept away from the installation zone. Temporary stability must be maintained throughout the build, and components should not be left partly assembled or unsecured at the end of a shift. The completed warehouse racking should be inspected before it is put into service, with defects corrected and records retained.

Allow for future changes

A good plan considers how the storage system may change as stock profiles, equipment or operational methods develop. Identify whether future beam levels, bays, protection or accessories may be required, while recognising that alterations can change the system’s capacity and stability. Any modification should be assessed and approved before work begins.

Leave sufficient access for inspection, cleaning, repairs and the replacement of damaged components. Avoid designing the system so tightly around current stock that routine inspection or safe maintenance becomes difficult. Future changes to forklifts, fire protection, lighting or building services should also be considered where they could affect the installation.

Confirm compliance and handover information

The design, installation and subsequent use of warehouse racking should be managed in line with applicable UK health and safety duties and recognised technical guidance, including the principles set out in BS EN 15629 for specification and BS EN 15635 for the use and maintenance of storage equipment. The exact requirements depend on the system, building and working methods, so a competent person should confirm the appropriate design and inspection arrangements.

At handover, retain the design information, load notices, installation records, inspection findings, repair details and instructions for use. Make sure operators understand load limits, safe loading methods, reporting procedures and the action to take if damage is found. Planned inspections should then be arranged at suitable intervals, with immediate reporting of impact, deformation, missing components or other conditions that could affect safety.

In practice, the most reliable approach is to complete a site survey, confirm the storage and handling requirements, verify the floor and building constraints, develop a documented layout, assess fire and workplace risks, and use trained installers under controlled conditions. Reviewing these factors before procurement reduces redesign, installation delays and unsafe adaptations, while providing a warehouse racking system that supports efficient daily access and long-term safe use.
