What is the weight capacity of a longspan racking system?

The weight capacity of a longspan racking system is not a universal figure. Its safe working load is determined by the system’s design, the manufacturer’s specifications, beam and shelf capacity, bay configuration, load distribution, installation quality and the condition of the components. The stated safe working load must always be followed, rather than relying on the apparent strength or size of the system.

Capacity may be specified for an individual shelf, a pair of beams, a complete level or an entire bay. These limits are not interchangeable. A shelf may support a particular load when it is evenly distributed, while a concentrated item or a total bay load may exceed the system’s design capacity. Check the load notice, design documentation and manufacturer’s information to confirm exactly what each figure represents.

Several factors affect the permissible load:

• Beam design: Beam length, section profile, material and connection details influence how much weight each level can safely support.
• Shelf type: Steel panels, timber-based shelves and other decking materials have different load characteristics and may require specific support arrangements.
• Bay width and height: Larger spans and taller configurations can change the forces placed on beams and uprights.
• Load distribution: Loads should be spread across the intended shelf area. Heavy items placed at one point or close to an unsupported edge can create excessive local stress.
• Upright capacity: The frames must be capable of carrying the combined loads from all levels, including any additional forces caused by uneven loading or impact.
• Configuration: Changing the number of levels, beam positions, shelf types or bay arrangement can alter the original capacity assessment.
• Installation conditions: The floor, anchorage, frame alignment and the suitability of the installation area all affect stability and performance.
• Component condition: Dents, corrosion, bent beams, damaged connectors or missing safety components can reduce the safe capacity, even where the original design was suitable.

Safe working loads normally assume that the system has been installed as designed and that loads are placed and handled correctly. The load should be stable, suitable for the shelf dimensions and positioned so that it does not overhang or obstruct access. Do not assume that a higher capacity can be achieved by adding extra shelves, replacing components or using stronger-looking boards without a formal assessment.

Before changing the arrangement or introducing heavier stock, compare the proposed loads with the original design information. A competent person should review any changes to beam levels, bay dimensions, shelf materials, anchorage, operating conditions or handling equipment. If the original documentation is unavailable, an inspection and technical assessment can help establish whether the existing configuration remains suitable.

Load notices should be clear, visible and consistent with the installed arrangement. They should identify the relevant limitations for the system, such as shelf, level or bay capacity where applicable. Staff should understand that these limits apply to the stored goods and must not be exceeded during normal use. Training should also cover safe loading, unloading and the reporting of damage.

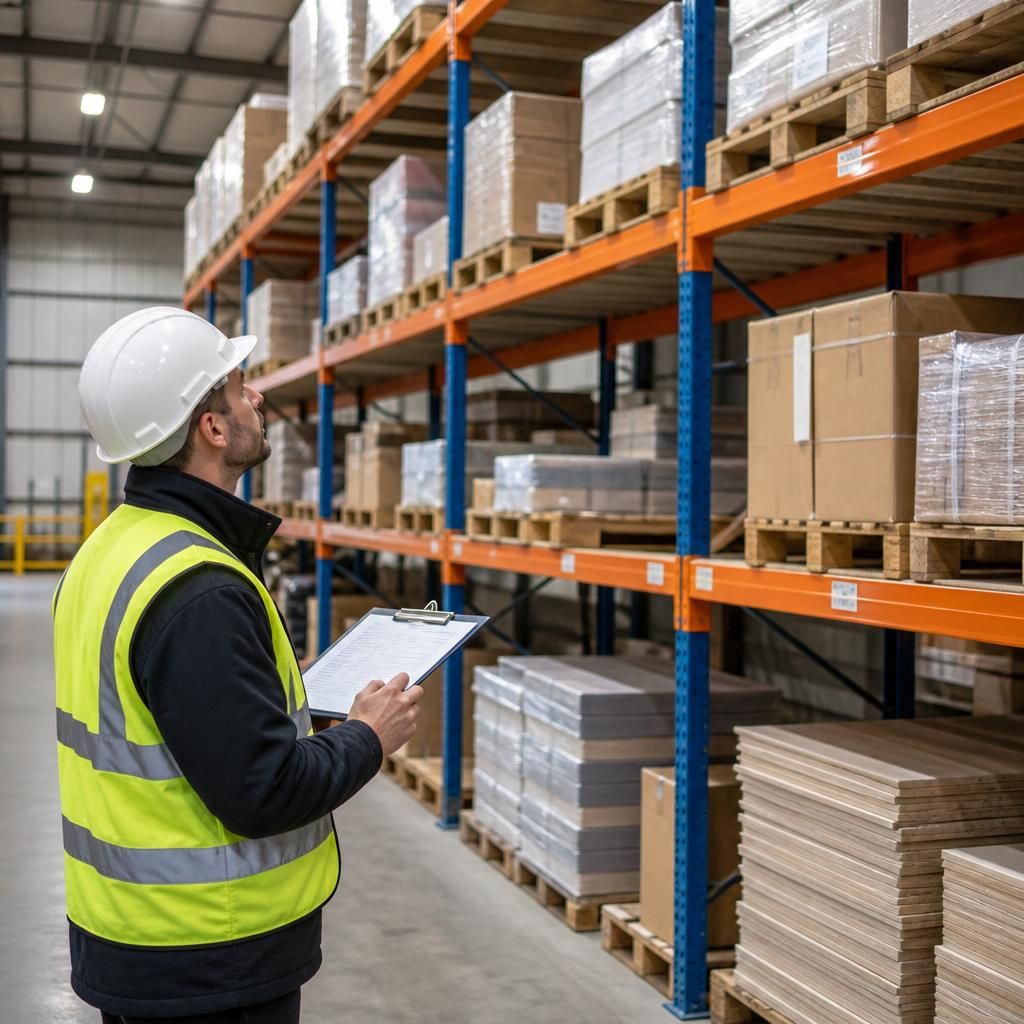

Regular inspections are essential because capacity is affected by condition as well as design. In accordance with the principles of BS EN 15635, warehouse storage equipment should be subject to ongoing visual checks, formal inspections at appropriate intervals and prompt reporting of damage. An inspection should consider upright frames, beams, connectors, shelves, protection, floor fixings, load notices and the way goods are being stored.

Any impact damage, visible deformation, unstable loading or uncertainty about the permitted load should be treated seriously. Remove or reduce the affected load where necessary, isolate unsafe areas and obtain competent advice before returning them to use. Repairs and replacements should use suitable components and follow the system manufacturer’s requirements; improvised alterations can invalidate the original capacity assessment.

In practical terms, the correct capacity is the lowest applicable limit within the complete system, not simply the rating of its strongest individual component. For an accurate answer about a particular longspan racking installation, refer to its design records and load notices, then arrange an expert inspection if the documentation, layout, stock profile or condition has changed. Able Racking can assess the installed system, identify factors that may affect its safe working load and advise on appropriate corrective action.
