What factors should be considered when selecting a longspan racking system for warehouses?

Choosing a longspan racking system for a warehouse requires a combined assessment of load capacity, stock dimensions, available space, access methods, building conditions, safety requirements and future storage needs. The system should accommodate the loads safely, make stock easy to identify and handle, use the available floor and vertical space efficiently, and remain practical to inspect, adjust and maintain.

Load capacity and stock characteristics

Start by establishing the weight of each stored item, the typical load placed on each shelf and the maximum load that may be stored in the bay. Longspan racking components are designed for defined load limits, so the proposed configuration must be checked against the actual intended use rather than selected on shelf size alone.

Consider whether loads are evenly distributed or concentrated in particular areas. Heavy items may require stronger beams, additional support or a different storage arrangement, while lighter cartons and smaller products may benefit from more closely spaced shelf levels. The weight, shape, fragility and packaging of the stock will also influence the most suitable shelf surface and access arrangement.

Do not rely on an estimated capacity where stock varies significantly. A competent supplier or racking specialist should assess the proposed configuration, confirm the applicable load ratings and provide clear information for safe use. Any changes to beam positions, shelf levels or component types should be checked before they are made.

Bay dimensions and storage density

Measure the available length, width and height accurately, including obstructions such as columns, doors, lighting, fire equipment, sprinklers, ventilation systems and building services. The dimensions of the longest, widest and tallest items should be recorded, together with the space needed to place and remove them safely.

Longspan racking can be configured with different bay widths, depths and shelf intervals. Wider bays may store more items but can be less suitable where loads are heavy or difficult to handle. Narrower bays may improve accessibility and organisation, although they can increase the number of frames and affect the overall layout.

Allow sufficient clearance between stored goods, adjacent bays and the building structure. Storage should not obstruct emergency routes, fire protection equipment, electrical installations or access to inspection points. The aim is to maximise usable capacity without creating a congested or unsafe working area.

Handling methods and access

The system must match how stock is put away, picked and replenished. If goods are handled manually, shelf heights should support safe and comfortable access, with frequently used items positioned where operatives can reach them without excessive stretching, bending or lifting above shoulder height.

Where trolleys, steps or other handling equipment are used, check that aisle widths, turning areas and floor surfaces are suitable. The layout should allow equipment to move without striking frames, beams or stored goods. If mechanical handling equipment is proposed, the system and operating clearances must be designed for that equipment and its method of use.

Consider stock rotation and picking frequency as well. Fast-moving products may need to be positioned close to dispatch or preparation areas, while less frequently accessed items can be stored in less accessible locations, provided they remain safe to retrieve.

Flexibility and future requirements

Longspan racking is often selected because shelf levels and bay configurations can be adapted as stock changes. Before installation, consider whether future goods may be heavier, larger or stored in different packaging. Adjustable levels can provide useful flexibility, but the system must remain within its approved configuration and load limits after every alteration.

Plan for likely changes in product range, order volumes, business operations and storage layout. A system that meets the immediate requirement but leaves no room for adjustment may create avoidable replacement or relocation costs later. Conversely, specifying excessive capacity or unused accessories can increase the initial cost without improving the operation.

Building and floor conditions

Check that the warehouse floor is suitable for the proposed frame arrangement and imposed loads. The floor should be assessed for level, condition, strength and any areas affected by joints, damage or uneven settlement. Existing defects may need to be addressed before installation.

Building height, roof structures, walls, columns and fixed services can all affect the positioning and maximum height of the system. The installation plan should account for access during assembly and for the clearances required during normal operation. Where the layout is close to walls or other equipment, maintain appropriate inspection and maintenance access.

Safety, stability and compliance

Safety should be considered at the design stage rather than added after installation. The selected system should be appropriate for the intended loads and use, installed by competent operatives and supplied with suitable instructions, load information and protection where necessary.

Relevant UK workplace requirements and recognised guidance should be considered, including the principles set out in BS EN 15635 for the use and maintenance of steel static storage systems. The precise requirements will depend on the system, site activities and risk assessment. A responsible person should be identified to oversee safe use, reporting and follow-up action.

Frame protection, end-of-aisle protection, back protection, safety pins and other accessories may be appropriate depending on the handling equipment, traffic routes and risk of impact. These features should be selected for the actual hazards present rather than applied automatically to every layout.

Clear load notices should be provided where required, and operatives should understand the permitted loads, safe loading arrangements and procedure for reporting damage. Any impact, distortion, missing component or other defect should be reported promptly and assessed by a competent person.

Inspection and maintenance access

Select a configuration that can be inspected properly throughout its service life. Frames, beams, connectors, supports and protection should remain visible enough for routine checks, and stored goods should not conceal damage or prevent access to critical areas.

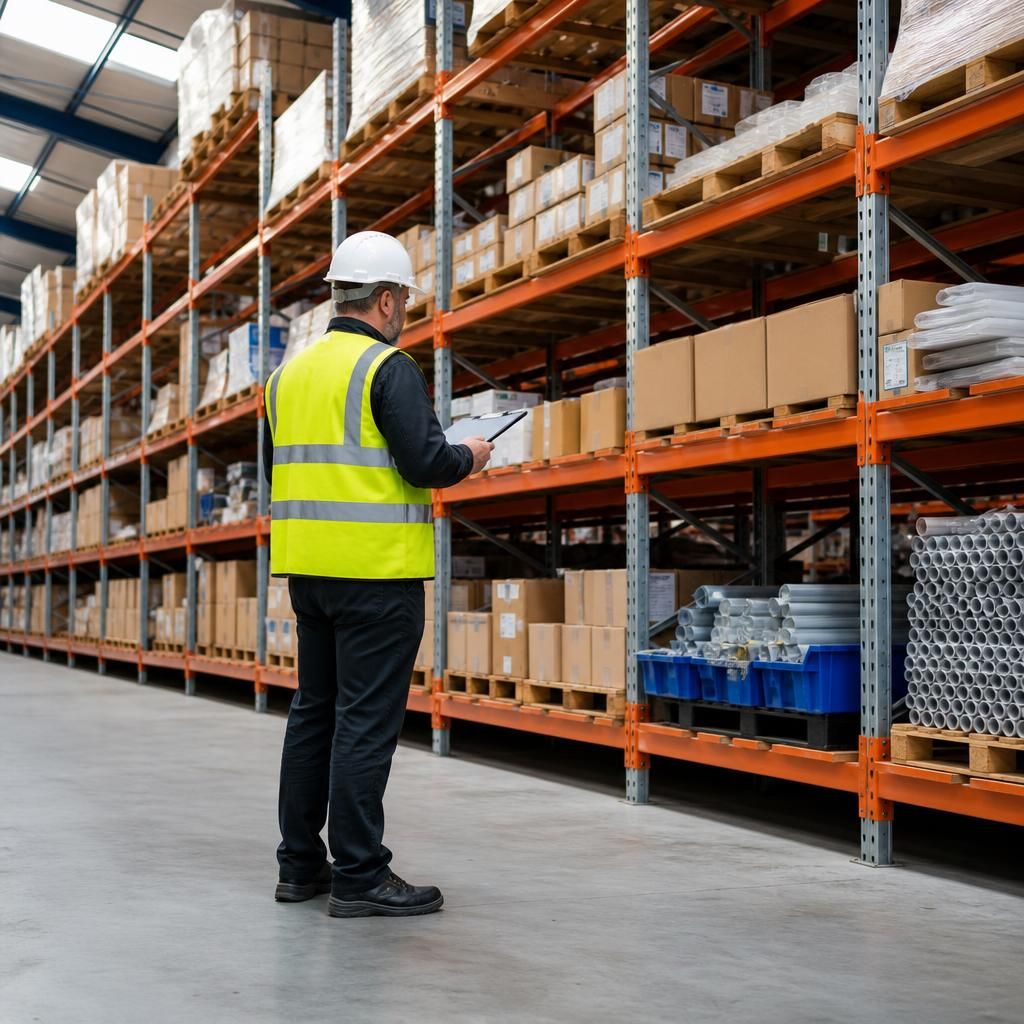

Regular visual checks by trained site personnel should be supported by a formal inspection process carried out at suitable intervals by a competent racking inspector. The frequency should reflect the working environment, traffic levels, handling methods and previous damage history. Inspection findings should be recorded, prioritised and followed through to completion.

Consider how easily damaged components can be isolated, repaired or replaced without disrupting the entire storage operation. Unauthorised straightening, welding, drilling or modification can affect structural performance and should not be undertaken. Repairs and alterations should be assessed and completed using suitable components and competent installation methods.

Warehouse environment

Environmental conditions can influence the choice of materials and finishes. Areas exposed to moisture, condensation, temperature changes, dust, chemicals or corrosive substances may require additional protection or a different specification. The likely effect of cleaning regimes and contact with stored products should also be considered.

For cold or temperature-controlled areas, assess how low temperatures, condensation and changes in working practices may affect components, access and inspection. The selected finish and construction should be suitable for the environment, and the maintenance plan should account for conditions that may accelerate deterioration.

Installation and operational disruption

Review how the system will be delivered and installed, including delivery routes, temporary storage areas, working-at-height requirements and separation from ongoing warehouse activities. Installation should be planned to protect operatives, existing stock, building services and nearby equipment.

Agree the installation sequence, site responsibilities and handover information in advance. The completed system should be checked against the approved design, with load information, usage instructions and any outstanding actions clearly documented. Staff should be briefed before the bays are brought into normal use.

Whole-life value

Compare systems on more than their purchase price. The assessment should include installation, protection, future adjustment, inspections, repairs, replacement components, operational disruption and the expected service environment. A system that is easy to inspect and adapt may provide better long-term value than a cheaper arrangement that is difficult to maintain or unsuitable as requirements change.

The final choice should therefore be based on a documented review of the stock, building, handling methods, safety risks and future plans. A site survey and design review by an experienced warehouse racking specialist can confirm whether the proposed longspan racking layout is suitable, safe and maintainable before equipment is ordered or installed.
