What are the installation steps for modular mezzanine floors?

Installing a modular mezzanine floor is a controlled process that normally covers site assessment, structural design, approvals, preparation, frame assembly, deck installation, access and edge protection, followed by inspection and handover. Each stage must match the approved design, the intended use of the floor and the applicable UK safety and building requirements.

A modular system is assembled from standard structural components, but installation is not simply a matter of bolting sections together. The floor must be suitable for the building, correctly supported, safely accessed and capable of carrying its specified loads. A competent installation team should therefore manage the work from the initial survey through to the final checks.

1. Site survey and initial assessment

The process begins with a detailed assessment of the proposed installation area. The survey considers the building’s dimensions, clear height, existing columns or obstructions, floor condition, access routes, lighting, fire systems and nearby equipment. The installer also needs to understand how the space will be used, including the activities taking place above and below the floor.

Information about intended loads is essential. This may include people, shelving, equipment, stored materials, partitions or handling activity. The design load should reflect the heaviest expected use rather than the average day-to-day load. The condition and capacity of the supporting slab must also be assessed, as the floor may need to transfer substantial point loads through its base plates.

2. Design development and approval

Survey information is used to develop the modular mezzanine design. This normally identifies the floor size, platform height, column positions, beam arrangement, deck specification, stairs, guarding, loading areas and any required openings. The design should also consider headroom, workflow, emergency escape and how the new structure interacts with the existing building.

Structural calculations and drawings should be reviewed by an appropriately competent person. Depending on the location, size, use and proposed alterations, planning permission, building control approval or other consent may be required. Fire precautions, accessibility, means of escape and any changes to the building’s services should be considered before work starts. Approval should be obtained before ordering materials or beginning installation.

3. Installation planning and preparation

Before the installation team arrives, the work area should be cleared and the installation sequence agreed. The project plan normally covers delivery arrangements, unloading, storage of components, lifting equipment, exclusion zones, work at height controls and emergency procedures. A risk assessment and method statement should be available to the installation team, with responsibilities clearly allocated.

The base floor must be clean, accessible and suitable for setting out. Any services, doors, lighting, sprinklers or ventilation equipment affected by the installation should be identified in advance. Where the floor will be installed in a live operational environment, suitable segregation is needed to protect workers and other site users from falling objects, moving materials and installation equipment.

4. Delivery and component checks

Components should be delivered in a planned sequence and checked against the approved drawings and materials specification. The team should look for transport damage, missing fixings, incorrect sections or discrepancies between the delivered components and the design.

Materials should be stored safely so that they do not obstruct walkways, emergency routes or operational areas. Components must not be altered on site without design approval. Cutting, drilling or substituting structural parts can affect the integrity of the finished floor and may invalidate the design assumptions.

5. Setting out the structure

The installer marks the column and support positions on the building floor using the approved drawings. Accurate setting out is important because even small changes can affect beam spans, access points, stair locations and clearances around existing equipment.

At this stage, the team confirms that the marked positions are compatible with the building and that there are no previously unidentified obstructions. Any issue should be resolved before the frame is assembled, rather than corrected by making unapproved changes during the build.

6. Assembling the structural frame

Columns, base plates, primary beams and secondary beams are assembled in the specified sequence. Temporary bracing or other temporary stability measures may be required while the structure is being built. Connections are installed using the correct fixings and tightened or secured in accordance with the design and manufacturer’s instructions.

The frame is checked for alignment, level and stability as assembly progresses. Permanent bracing, ties or connections to the existing structure are installed where specified. The installer should not rely on the deck or guarding to provide structural stability unless the design expressly allows for it.

7. Installing the deck

Once the structural frame is stable, the decking is fitted over the supporting beams. The deck may consist of materials such as engineered panels, steel decking or another specified system, depending on the intended use and design requirements.

Deck panels must be correctly supported, joined and fixed. Openings for stairs, goods transfer points, services or other equipment should be formed exactly as shown on the approved drawings. Unprotected gaps, loose panels and unsupported edges must be addressed before anyone uses the platform.

8. Fitting stairs, guarding and access equipment

Permanent access is installed once the platform is ready for safe access. This may include stairs, handrails, gates, pallet gates or other transfer arrangements. Stair dimensions, guarding and access points must be suitable for the intended use and positioned so they do not create avoidable collision or fall risks.

Edge protection is fitted around exposed sides and openings. Guardrails, toe-boards and loading gates should be installed in accordance with the design and relevant safety requirements. Where goods are transferred to the upper level, the access system must prevent people from entering an open edge while materials are being moved.

9. Services, fire protection and finishing work

Lighting, sprinklers, fire detection, ventilation, power and other services may need to be repositioned or extended around the new floor. These works should be completed by suitably competent specialists and coordinated with the mezzanine design. Service penetrations must not weaken structural members or compromise fire separation.

Any required fire-resisting construction, signage, protective coatings or finishing details should be completed before handover. The area beneath and above the floor should be checked for sharp edges, trip hazards, unfinished fixings and obstructions to escape routes or fire-fighting equipment.

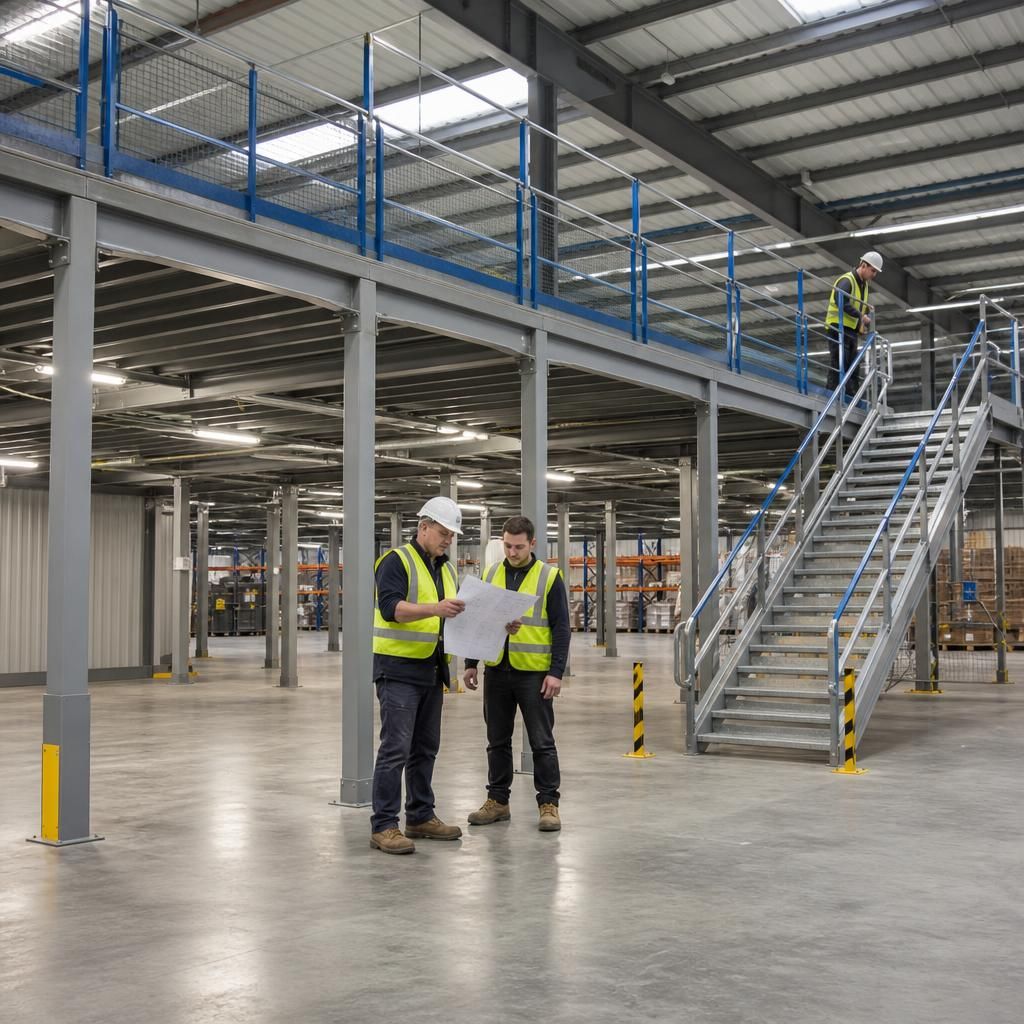

10. Inspection, testing and handover

After installation, the completed structure is inspected against the approved drawings and specification. Checks normally include column positions, beam connections, bracing, deck fixings, load signage, stairs, gates, handrails, toe-boards and the condition of the supporting floor.

The finished mezzanine should also be reviewed for safe access, clear escape routes and compatibility with the activities planned for the space. Any defects or incomplete items must be recorded and corrected before the floor is brought into service. Where required, building control or other approving bodies will complete their own inspection.

Handover information should include the final drawings, stated load capacity, inspection or completion records, maintenance guidance and details of any restrictions on use. Load notices should be displayed clearly and must not be exceeded or altered without a suitable design review.

11. Putting the floor into use

The floor should only be loaded after the installation has been signed off by the responsible competent parties. Staff using the area should understand the permitted loads, access arrangements, loading gates, emergency procedures and any restrictions on moving equipment across the deck.

Regular inspections should then be incorporated into the site’s safety arrangements. The structure should be checked for impact damage, loose connections, deck deterioration, damaged guarding, unauthorised alterations and changes in use. A review is also appropriate if the floor will carry heavier loads, support new equipment or undergo layout changes.

Using an experienced installation team helps ensure that the modular system is assembled as designed and that safety-critical details are not overlooked. Careful planning, accurate construction and documented final checks provide the basis for a safe, compliant and durable mezzanine floor.
