What factors should be considered when choosing the decking material for a mezzanine floor?

The right decking material for a mezzanine floor is determined by the loads it must support, how the space will be used, the working environment, fire and slip performance, durability, installation requirements and total cost. The decking should be selected as part of the complete floor design, rather than treated as a separate surface choice, because its weight, stiffness and fixing method affect the supporting structure and overall performance.

Start by defining the intended use of the floor. A light storage area, office, production zone, plant platform or picking area will place different demands on the decking. Consider both evenly distributed loads and concentrated loads, such as equipment feet, shelving legs, wheeled loads, pallets or stored materials. Where heavy items may be moved across the surface, the design should account for impact and point loading as well as the stated working load.

The main factors to assess are:

• Load capacity and stiffness: The decking must support the expected imposed loads without excessive deflection, movement or local damage. The supporting beams, joists, connections and columns must also be designed to transfer these loads safely.
• Traffic and handling equipment: Foot traffic has different requirements from hand trucks, trolleys or other wheeled equipment. Wheels can create concentrated loads and repeated impact, so the surface, joints and fixings must be suitable for the equipment in use.
• Environmental conditions: Temperature, humidity, water, dust, oils, chemicals and cleaning methods can affect the performance and service life of a decking material. Areas exposed to moisture or harsh substances may require a sealed, treated or corrosion-resistant solution.
• Fire performance: The decking specification must support the building’s fire strategy and any requirements identified through the design and approval process. Reaction to fire, fire resistance, smoke considerations and the treatment of joints or penetrations may all be relevant.
• Slip resistance: A smooth surface may be unsuitable where spills, dust, wet footwear or regular cleaning could create a slipping risk. The level of slip resistance should reflect the task, footwear, contamination and drainage arrangements.
• Durability and maintenance: Consider resistance to abrasion, impact, moisture and wear. A material that is inexpensive to install may have a higher whole-life cost if it needs frequent repairs or replacement.
• Acoustic performance: Some applications require control of noise from footsteps, moving equipment or operations below the floor. The decking, insulation, floor finish and ceiling construction should be considered together where noise is important.
• Installation and future changes: The material should be practical to transport, cut, fix and replace within the available building access. If layouts are likely to change, a system that allows sections to be removed or adapted may provide greater flexibility.

Chipboard decking is commonly selected for general-purpose storage, office and light industrial applications. It can provide a practical, relatively economical surface when correctly specified and supported. Moisture-resistant grades may be appropriate in suitable environments, but standard board should not be assumed to withstand persistent damp, standing water or aggressive cleaning. Board joints, edge support, fixings and protection around openings require particular attention.

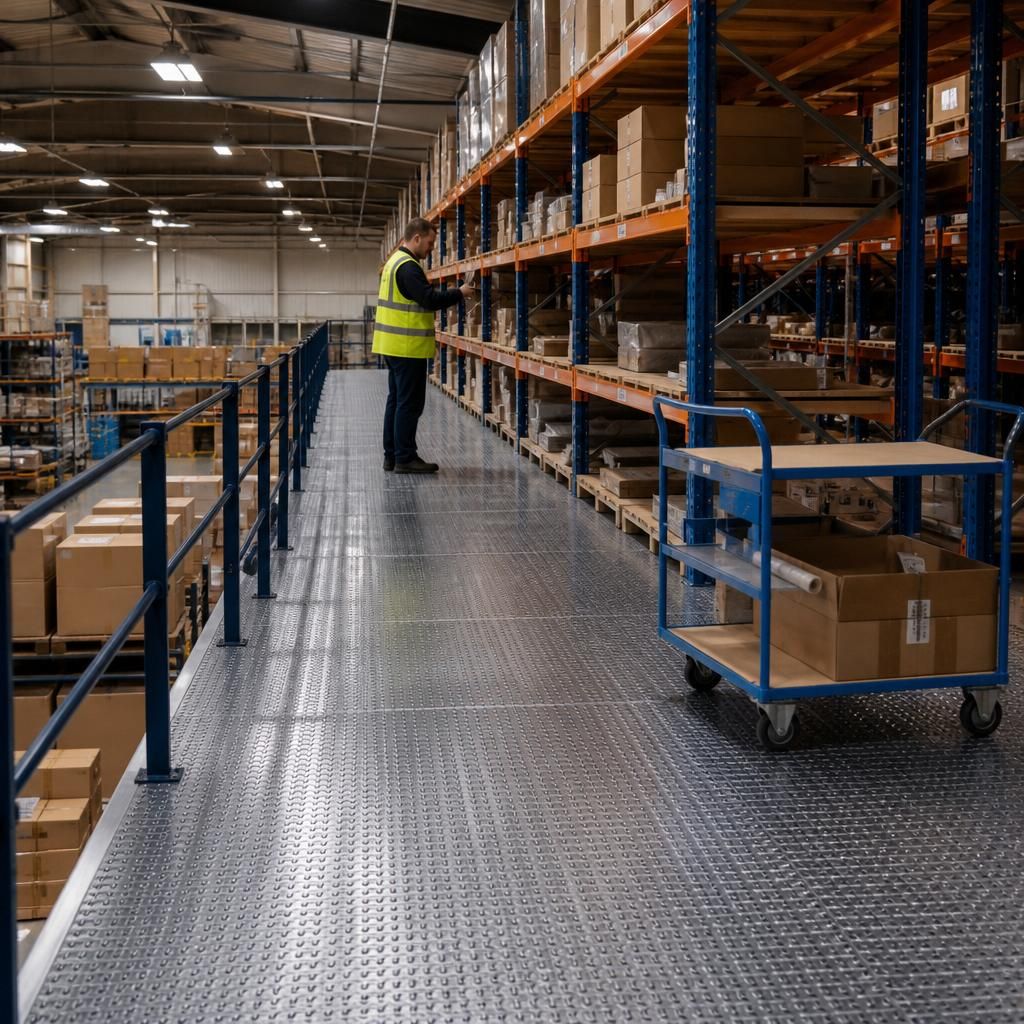

Steel decking is often considered where high durability, fire performance or resistance to impact is important. It can be suitable for demanding industrial environments and may provide a robust working surface. However, its weight, acoustic characteristics, surface finish, corrosion protection and installation method need to be assessed as part of the structural design. Perforated or profiled panels may offer different ventilation, drainage or slip characteristics from solid panels.

Composite decking can combine structural performance with a finished upper surface and may be useful where appearance, cleanability, fire performance or acoustic control is required. The exact properties vary significantly between systems, so the manufacturer’s technical documentation should be checked rather than relying on the general term “composite”.

Concrete or cement-based solutions may be considered where substantial mass, acoustic separation, fire performance or a highly durable surface is required. They add considerable dead load and may increase installation time, access requirements and the size of the supporting structure. The design must allow for curing, movement, joints and the implications of introducing additional weight into the building.

A separate floor finish may be needed above the structural decking. Options can include resin, rubber, vinyl, carpet tiles or a specialist industrial coating. The finish should be compatible with the base material and suitable for the expected traffic, cleaning regime, fire strategy and slip requirements. It should not conceal damaged boards, loose panels or poorly protected openings.

Before confirming a specification, establish the following information:

1. What activities will take place on the floor, and what items will be stored or operated there?
2. What are the maximum distributed, point and rolling loads?
3. Will powered or manually operated equipment travel across the surface?
4. Could the decking be exposed to water, chemicals, oils, dust, heat or low temperatures?
5. What fire, escape, access and guarding requirements apply to the building?
6. Does the surface need to be slip-resistant, washable, low-noise or resistant to impact?
7. How will damaged sections be inspected, repaired and replaced?
8. What are the full costs of materials, supporting structure, installation, finishes, maintenance and future alterations?

Technical information should be verified against the proposed design. This includes load tables, span limits, deflection criteria, fixing details, fire classification, corrosion protection, slip data and maintenance instructions. A product’s maximum load rating is not sufficient on its own: the supporting structure, span, bearing arrangement, fasteners and interfaces must be checked together by a competent designer.

UK projects may also need to address Building Regulations, fire safety, workplace safety and the requirements of the building’s approval process. The relevant obligations depend on the building, use, location and design. Early coordination between the client, building designer, structural engineer, installer and fire-safety professionals helps prevent unsuitable material choices and late changes.

In practice, the best decking material is the one that meets the required structural and safety performance while remaining appropriate for the environment and affordable over its service life. Able Racking can help assess the proposed use, identify practical risks and coordinate the decking specification with the wider mezzanine floor design, access arrangements, guarding and maintenance requirements.
