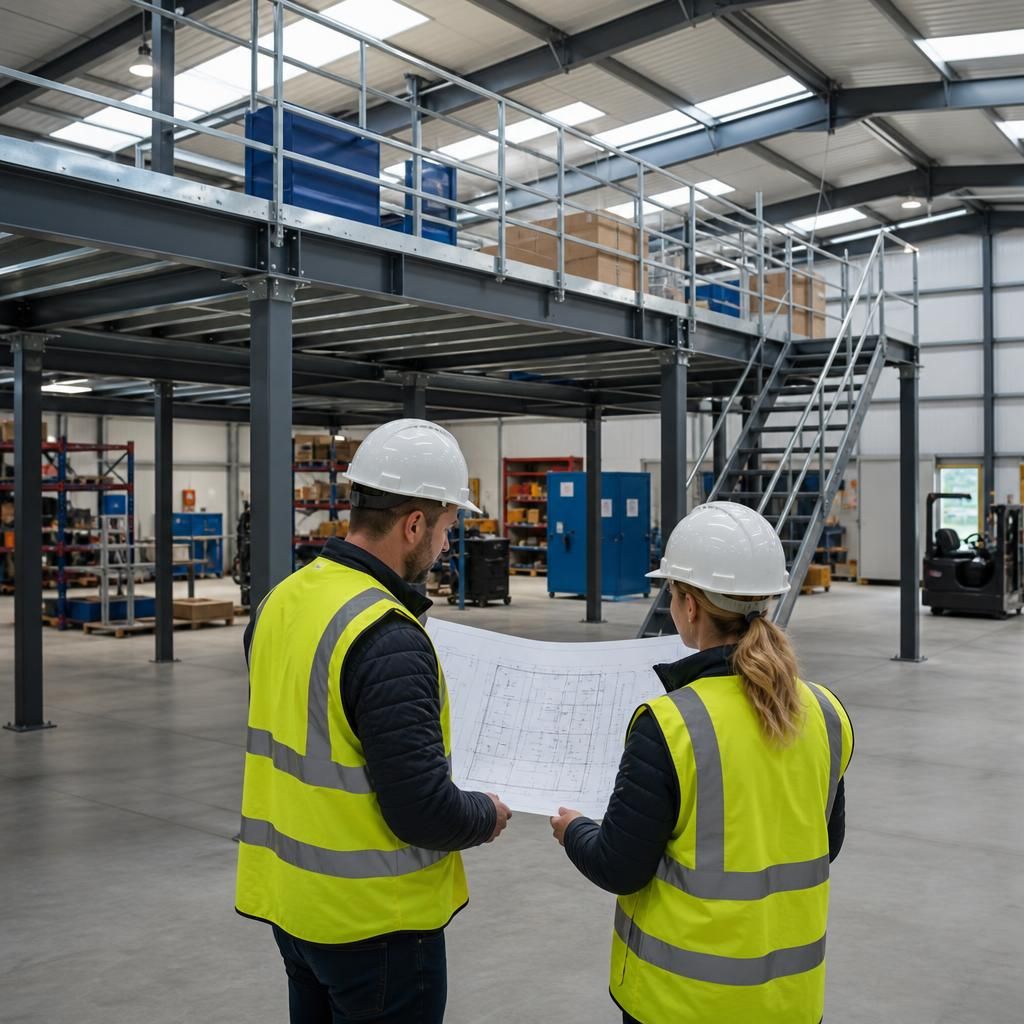

What factors should be considered when planning the structural design of a mezzanine floor?

The structural design of a mezzanine floor must be based on its intended use, the loads it will carry, the existing building structure, available headroom, access arrangements, fire strategy and the conditions of the installation site. A qualified structural engineer should assess these factors together and produce calculations and drawings suitable for approval, manufacture and installation.

A mezzanine should not be designed as an isolated platform. Its columns, beams, floor deck, connections and supporting ground must work as one structural system, while remaining compatible with the host building and the activities planned above and below it.

Intended use and operational requirements

The proposed use is the starting point for the design. A platform used for light office accommodation will have different requirements from one used for manufacturing, storage, plant support or frequent movement of goods and personnel. The design brief should establish:

• What activities will take place on and beneath the mezzanine
• Whether people, equipment, materials or vehicles will operate on the floor
• How often the platform will be accessed and how goods will be moved
• Whether machinery, conveyors, partitions, processing equipment or services will be installed
• Whether the layout may change during the building’s working life

Allowing for foreseeable changes at the design stage can prevent costly strengthening or alterations later. Equipment positions should be confirmed early because concentrated loads can affect beam sizes, column locations and connection details.

Dead, imposed and point loads

The engineer must calculate the permanent dead load of the structure, including beams, columns, decking, stairs, handrails, partitions, finishes and fixed services. Imposed loads arise from people, movable equipment, stored goods and normal operational activity. Point loads may be created by machinery legs, pallet supports, wheels, lifting equipment or other concentrated contact areas.

Loads must be assessed for both the floor system and the supporting ground. A uniformly distributed load alone may not represent actual working conditions. The design should also consider dynamic effects, impact, vibration and the possibility of loads being moved across the platform. Load limits should be clearly communicated to the end user and reflected in operating procedures.

Span, column layout and support arrangement

The required clear space beneath the mezzanine influences the span between columns. Longer spans can improve circulation and preserve working areas, but they may require deeper or heavier beams and can increase deflection. More closely spaced columns may reduce structural demand but could interfere with vehicles, doors, plant, escape routes or existing operations.

Column positions should therefore be coordinated with the building layout, floor slab, services and any restrictions on access. The design must also establish whether the platform will be free-standing or connected to the existing building. Connections to walls, frames or other structural elements require evidence that those elements can safely resist the additional forces; a wall should not be assumed to provide suitable support without assessment.

Existing building and ground conditions

A site survey should record the building’s dimensions, internal clearances, floor levels, obstructions and structural form. The condition and capacity of the existing concrete slab or other supporting surface must be checked for column reactions, local punching, cracking and settlement. Slab thickness, reinforcement, joints, drainage channels and embedded services can all affect foundation or base-plate positions.

The survey should also identify roof structures, walls, suspended ceilings, fire systems, electrical installations, ventilation and other services that could restrict the proposed arrangement. Where information about the existing building is incomplete, opening-up surveys or further investigation may be needed before the design is finalised.

Materials and structural performance

Steel is commonly used for primary beams and columns because it provides high strength and can be fabricated to suit the available space. Composite or profiled steel decking, timber-based panels and other floor systems may be appropriate depending on the use, required finish, fire performance and environmental conditions.

Material selection should consider strength, stiffness, corrosion protection, durability, connection design and maintenance access. The engineer will check bending, shear, buckling, vibration and deflection, rather than relying only on the material’s nominal strength. Excessive movement can damage finishes, affect equipment or make the platform uncomfortable even where the structure remains technically safe.

Connections and stability

Beam-to-column connections, column bases, bracing and any ties to the existing building are essential parts of the design. The structure must resist vertical loads as well as horizontal forces caused by people, equipment, accidental impact and building movement. It must have a defined load path from the floor deck through the beams and columns into the supporting slab or foundations.

Bracing may be placed within the structure or provided through suitable frames and connections. Its position must be coordinated with walkways, doors, escape routes and the use of the space. Protection against vehicle impact may also be required around exposed columns, with the design considering the likely type and direction of impact.

Headroom, access and movement of goods

Available floor-to-ceiling height must be checked at both levels. The design should provide practical clearance for people, equipment, lighting, ventilation and any services while retaining adequate usable space above the platform. Changes in floor level, low obstructions and restricted sightlines should be identified during planning.

Stairs, gates, loading points and other access features must be integrated into the structural layout. Their position affects openings in the floor, local strengthening, guardrail continuity and the movement of people and materials. Where goods are transferred between levels, the selected arrangement should prevent falls and avoid creating unsafe manual handling or traffic conflicts.

Fire safety and compartmentation

The mezzanine design must be coordinated with the building’s fire strategy and the applicable requirements of UK Building Regulations. Matters may include fire resistance of structural members, protection to columns and beams, the floor construction, escape capacity, travel distances, stairs, guardrails, fire detection, lighting and sprinkler or suppression systems.

Fire protection can affect section sizes, finishes, service routes and available headroom. It should be considered before fabrication rather than added as an afterthought. The responsible designer should confirm the required performance with the building control body and, where relevant, the fire risk assessor and other design team members.

Guarding, loading gates and workplace safety

Open edges, stairs, openings and loading areas require suitable protection. Guardrails, toe boards, gates and other protective measures should be designed for the activities taking place and should not be removed or bypassed during normal operation. Loading gates need a safe interlocking or controlled arrangement where appropriate, so that an open edge is not left exposed when goods are being transferred.

The design should also consider lighting, visibility, slips and trips, access for inspection, maintenance of services and the risk of objects falling to the level below. These details are structural and operational considerations, not merely finishing choices.

Services, drainage and future maintenance

Electrical cabling, lighting, ventilation, fire protection pipework, data systems and other services can add weight and require openings or fixing points. Their routes should be agreed before beams and decking are fabricated. Unplanned drilling, cutting or welding can weaken structural members and should never be carried out without approval from the designer.

Where the platform is used in an environment involving water, chemicals, dust or temperature variation, the design should address corrosion, drainage, cleaning and material durability. Access should be provided for inspecting connections, protective coatings, floor panels and fire protection throughout the structure’s service life.

Regulatory approval and design verification

The completed design should be supported by structural calculations, drawings, specifications and installation information. Depending on the project, approval may involve building control, planning considerations, fire authorities, insurers, the principal designer, the principal contractor and the building owner. The design team should establish which requirements apply before work begins.

Design should follow the relevant UK legislation, Building Regulations, recognised structural design standards and workplace safety duties. The final documents should state design loads, restrictions, materials, connection details, fire requirements and any assumptions about the existing building. Changes made during manufacture or installation should be reviewed and recorded by a competent person.

Installation and handover considerations

Temporary stability during installation can differ from the completed structure’s stability. The method statement should address lifting, sequencing, temporary supports, exclusion zones, working at height and protection of people and equipment below. Site conditions should be checked against the approved design before components are installed.

At handover, the owner should receive the relevant drawings, calculations, load information, inspection and maintenance guidance, fire protection records and operating restrictions. Clear documentation helps the mezzanine remain safe when the layout, equipment or occupier changes.

In practice, the most reliable approach is to define the use accurately, survey the building and slab, calculate every relevant load, coordinate access and services, and verify the complete design before fabrication. Able Racking’s experienced team can support the planning process with practical site knowledge, installation coordination and safety-focused advice, while the appointed structural engineer remains responsible for the structural calculations and design approval.
