What are the step-by-step procedures for ensuring a successful warehouse racking installation?

A successful warehouse racking installation is a controlled process that starts with a verified design and suitable site conditions, continues through safe assembly and fixing, and ends with documented inspection and handover checks. Every stage should be completed by competent personnel in accordance with the approved design, the manufacturer’s instructions, the relevant workplace safety requirements and the agreed loading information.

The installation process should normally follow these steps:

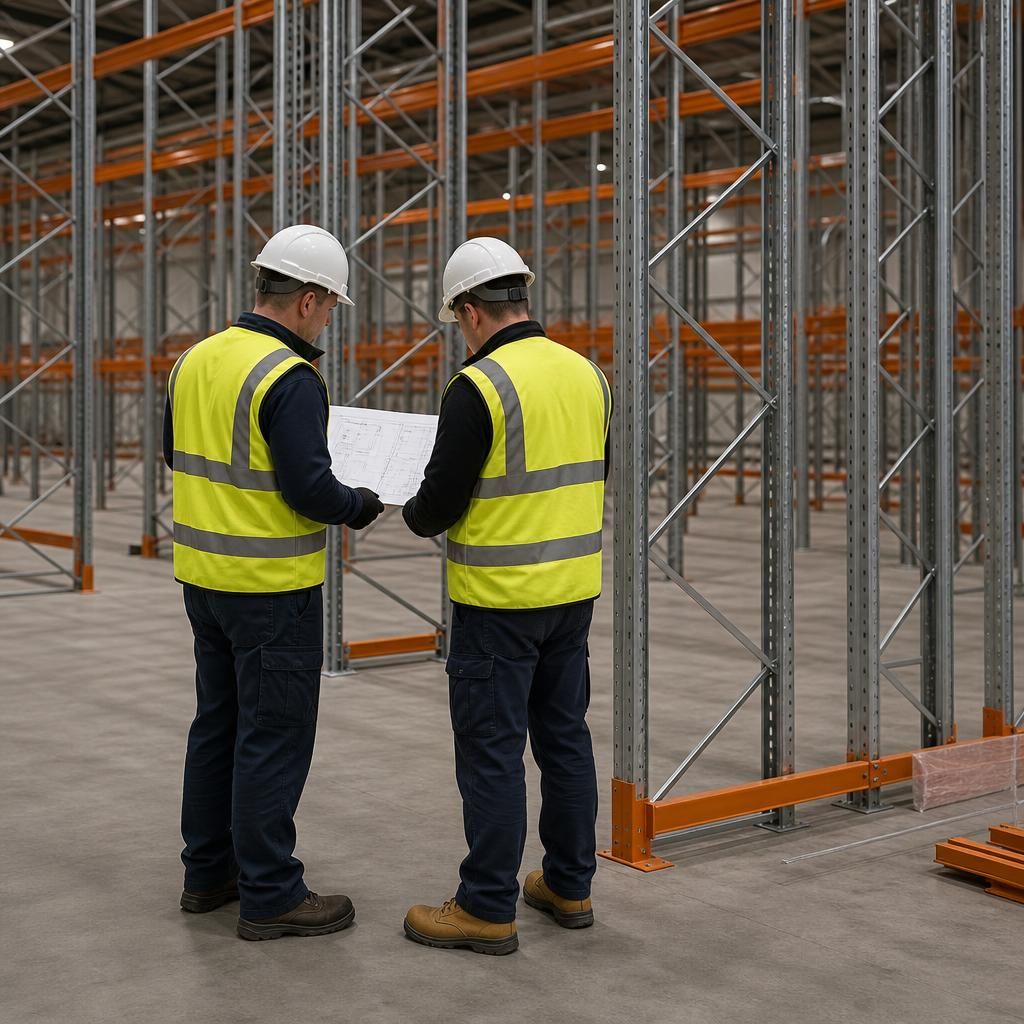

1. Confirm the design and specification. Before work begins, review the warehouse racking layout, elevations, bay dimensions, aisle widths, beam levels, load capacities and any access requirements. Check that the design reflects the intended pallets, loads, handling equipment and operating methods. The design should also identify ties, anchors, guards, barriers and other protective measures required for the site.
2. Verify the site conditions. An installation team should inspect the floor, building structure, lighting, doors, columns, services, fire protection and access routes. The floor must be suitable for the proposed warehouse racking loads, with adequate strength, level tolerances and condition. Any cracks, uneven areas, obstructions or changes to the building should be recorded and resolved before installation proceeds.
3. Complete the risk assessment and method statement. The work should be planned before components are moved into the working area. The method statement should explain the installation sequence, delivery arrangements, lifting methods, exclusion zones, work at height controls, personal protective equipment and emergency procedures. It should also set out how the work will be coordinated with warehouse staff and other contractors.
4. Prepare and segregate the work area. Remove stock and unnecessary equipment from the installation zone. Establish clear pedestrian and vehicle controls, using suitable barriers and signs to prevent unauthorised access. Confirm that the floor is clean and free from trip hazards, and provide a safe route for transporting components. Deliveries should be checked against the specification and stored so that components cannot fall, roll or obstruct escape routes.
5. Inspect the components before assembly. Check frames, beams, bracing, connectors, base plates, anchors, guards and accessories for damage, distortion, corrosion or missing parts. Components that are bent, cracked or otherwise unsuitable should be quarantined and replaced. Do not modify, drill, weld or substitute warehouse racking components unless the change has been formally approved by the responsible designer or manufacturer.
6. Set out the warehouse racking positions. Mark the first bay and all subsequent lines from the approved layout. Confirm aisle widths, clearances from walls and building features, vehicle turning areas, escape routes and access to fire equipment. Accurate setting out is important because a small error at the first position can affect the alignment of the complete installation.
7. Assemble the first bays. Build the initial frames and install the specified bracing, footplates, connectors and temporary stability measures. The first bays establish the reference for the remainder of the system, so their position, plumb, level and dimensions should be checked carefully before extending the installation.
8. Extend the installation in a controlled sequence. Continue assembling frames, beams and bracing in accordance with the approved method statement. Install every connection fully and ensure locking devices are engaged. Do not leave partially assembled sections in a condition where they could become unstable, and do not remove temporary supports until the permanent stability measures are complete.
9. Install anchors and protective equipment. Fix base plates to the floor using the specified anchor type, size, position and installation method. Where required, fit upright guards, end-of-aisle protection, frame protection, guide rails, back protection and other safeguards. Protection must not reduce required clearances or interfere with pallet placement, load handling or emergency access.
10. Check alignment and tolerances. Inspect the completed structure for vertical alignment, level beams, correct bay spacing, secure connections and consistent aisle clearances. Measurements should be taken using suitable equipment and compared with the approved design and manufacturer’s tolerances. Any movement, misalignment, missing bracing or damaged component must be corrected before the system is released for use.
11. Fit load information and operating controls. Install clearly visible load notices showing the permitted unit loads, bay loads and any restrictions that apply to the warehouse racking. The information must match the final installed configuration. Mark any areas that require special handling, and ensure operators understand the limits for pallet condition, placement, access and changes to the layout.
12. Carry out a formal completion inspection. A competent person should conduct an independent or suitably separate check of the installation. This inspection should cover the layout, components, fixings, anchors, bracing, beam connections, protection, clearances, load notices and general stability. Record defects and assign corrective actions. The warehouse racking should not be put into service while safety-critical defects remain outstanding.
13. Complete the handover documentation. Provide the final layout, design information, load specifications, inspection records, installation instructions, maintenance requirements and details of any approved changes. Keep records of replaced components, unresolved limitations and corrective work. These documents support future inspections, alterations and maintenance.
14. Brief the warehouse team before use. Operators should be told how to load and unload the warehouse racking safely, how to identify damage, what load limits apply and who to contact when a defect is found. Staff should understand that unauthorised alterations, overloading, impact damage and the removal of protection can affect structural safety.
15. Introduce ongoing inspection and maintenance. Installation is not the end of the safety process. Arrange routine visual checks by warehouse personnel and periodic expert inspections at an appropriate frequency for the site conditions and operating risks. Damage should be reported immediately, affected areas isolated where necessary and repairs completed using suitable approved components. Changes to the warehouse racking layout or loading requirements should be reviewed before implementation.

Key completion checks should confirm that the warehouse racking is installed in the correct location, all structural members and connections are present, anchors are secure, protection is fitted, aisles and escape routes remain clear, load notices are accurate and the final records have been issued. Photographs and marked-up drawings can provide useful evidence of the completed installation, particularly where the system will be inspected or modified later.

Common causes of installation problems include working from an outdated layout, failing to check the floor, using damaged components, omitting bracing or anchors, allowing unauthorised design changes and starting operations before the final inspection. These issues are avoidable when design verification, competent installation, progressive quality checks and formal handover are treated as separate stages rather than one final check.

Where the installation involves unusual loads, restricted access, building constraints or changes to an existing warehouse racking system, obtain advice from a suitably qualified designer or specialist before work starts. A documented, manufacturer-compliant process gives the warehouse team a clear basis for safe operation and future maintenance.
