What are the signs that indicate a warehouse racking cross beam needs replacement?

A warehouse racking cross beam needs replacement when it has structural damage, permanent deformation, failed welds, severe corrosion, damaged connectors or locking devices, or any other defect that could reduce its load-carrying capacity or prevent it from being securely connected to the upright frames. A beam that is bent, twisted, cracked, sagging under a normal load or no longer fits its connection correctly should be unloaded, isolated and assessed by a competent warehouse racking inspector without delay.

Cross beams are designed to transfer pallet loads between the supporting connections and upright frames. Damage can affect both the beam itself and the way loads are distributed through the warehouse racking system. The following signs require particular attention:

• Visible bending or twisting: A beam that is bowed, kinked or rotated out of its original alignment may have been struck by handling equipment or overloaded. Even apparently minor deformation can affect its strength and connection security.
• Permanent sagging: A beam that remains visibly deflected when unloaded, or shows substantially more deflection than expected during normal use, may have yielded. It should not be returned to service until it has been assessed.
• Cracks or splits: Cracks in the beam section, end connection, welds or surrounding metal are serious defects. They can extend under repeated loading and may indicate that replacement is necessary.
• Weld failure: Broken, separated or visibly cracked welds can compromise the beam’s structural integrity. Weld damage should not be repaired or concealed without an assessment of the complete component and the manufacturer’s approved repair requirements.
• Severe corrosion: Rust that has caused pitting, flaking, perforation or measurable loss of metal can reduce the beam’s strength. Surface discolouration alone may be cosmetic, but advanced corrosion requires competent examination.
• Damaged end connectors: Bent, cracked, distorted or partially detached end connectors may prevent the beam from seating correctly in the upright. A beam with a damaged connection should be treated as unsafe, even if the main beam section appears straight.
• Loose or missing locking devices: Locking pins, safety clips and other retention devices must be present, correctly fitted and secure. A missing device may sometimes be replaced with an approved component, but damage to the locking hole, connector or upright may mean that the beam requires replacement.
• Impact damage: Dents, sharp creases, gouges and localised crushing often indicate a forklift or other handling-equipment impact. The location and severity of the damage determine whether the beam can remain in service; this decision should be made by a competent inspector rather than by visual judgement alone.
• Unauthorised alterations: Drilled holes, cut sections, added welds or other modifications can change the beam’s load-bearing behaviour. Such alterations should be investigated against the original design and manufacturer information.
• Evidence of overloading: Excessive deflection, distorted beam ends, damaged load supports or repeated failure of locking devices may indicate that the beam has been used outside its intended capacity. Load notices and the system design should be checked before continued use.

Not every visible mark means that a cross beam must be replaced. Scratched paint, light surface rust or a small area of non-structural coating damage may be suitable for monitoring or approved maintenance. However, a defect should never be dismissed because it appears minor, particularly where it is close to a connector, weld, load-bearing section or previous impact.

When damage is found, the affected beam should be clearly identified and the load removed in a controlled manner, where this can be done safely. The area should then be isolated to prevent further use or impact. Do not straighten a bent beam, hammer a connector back into position, drill new holes or fit an improvised locking device. These actions can hide the original damage or create further weaknesses.

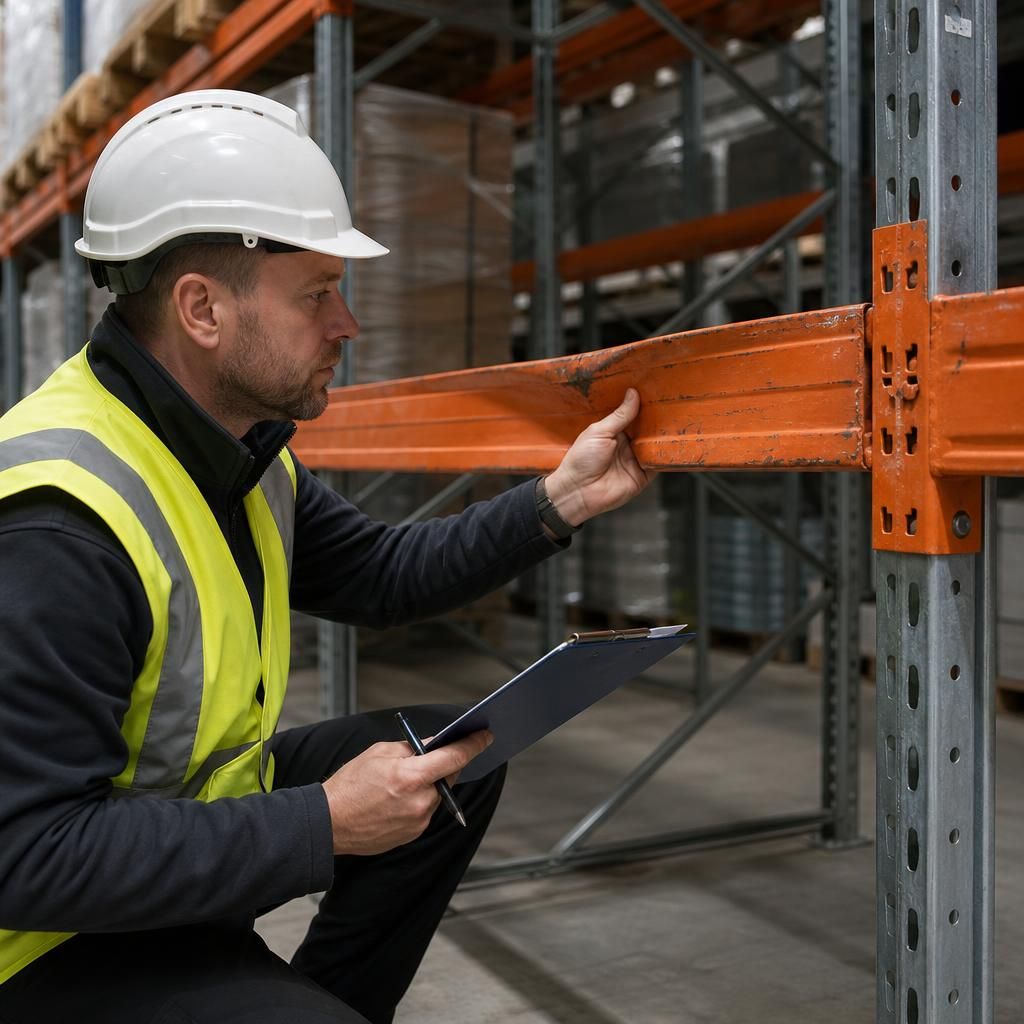

A competent warehouse racking inspector will examine the beam, its end connectors, locking arrangements, supporting uprights and adjacent components. The assessment should consider the type, location and extent of the damage, the beam’s condition when unloaded, the intended load, the original system design and any available manufacturer guidance. Photographs, measurements and inspection records can help establish whether replacement, an approved repair or continued monitoring is appropriate.

Replacement should use a compatible beam with the correct section, length, connector type, locking arrangement and specified load capacity. A visually similar component is not necessarily suitable. The replacement must be installed in accordance with the warehouse racking manufacturer’s instructions and the system’s design requirements. Load notices should also be checked, particularly where the replacement changes the configuration or capacity of the storage position.

After installation, the connection and locking devices should be checked, the beam should be confirmed as correctly seated and the affected bay should be inspected before it is placed back into service. The reason for the replacement should be recorded so that recurring impacts, unsuitable operating practices or loading problems can be addressed through preventative maintenance and staff training.

If there is uncertainty about whether a defect is structural, treat the cross beam as damaged until it has been assessed. Prompt isolation and professional inspection protect people, stock and the wider warehouse racking system while providing a defensible record of the action taken.
