What are the key elements to inspect during a warehouse racking cross beam check?

A warehouse racking cross beam check should assess the beam’s condition, position, connections, locking devices, load information and interaction with the surrounding storage system. The inspection must identify damage or instability that could reduce the beam’s safe load-bearing capacity, then record the finding and specify whether the beam can remain in service, requires monitoring or must be taken out of use until repaired.

Beam damage and deformation

Inspect the full length of each cross beam for defects that could affect its strength or stability. Look for:

• bends, twists, dents or kinks in the beam profile;
• local crushing or impact damage, particularly at the front edge and near the beam ends;
• cracks, splits or distortion around connection points;
• damage to welded components, beam end connectors or safety features;
• cuts, drilled holes or unauthorised alterations; and
• signs that the beam has been overloaded or struck by handling equipment.

A beam that appears only slightly bent should not be judged safe by appearance alone. Deformation can alter the way loads are transferred through the frame and may reduce the designed capacity. Suspected structural damage should be assessed by a competent inspector, with the affected location clearly recorded and controlled while a decision is made.

Corrosion and deterioration

Check for rust, flaking coatings, pitting and other corrosion across the beam, especially in areas exposed to moisture, chemicals or repeated abrasion. Surface discolouration is not always structurally significant, but deep pitting, section loss or corrosion around a connection can weaken the component. The inspection should also consider whether damaged paintwork is allowing deterioration to progress.

Beam-to-frame connections

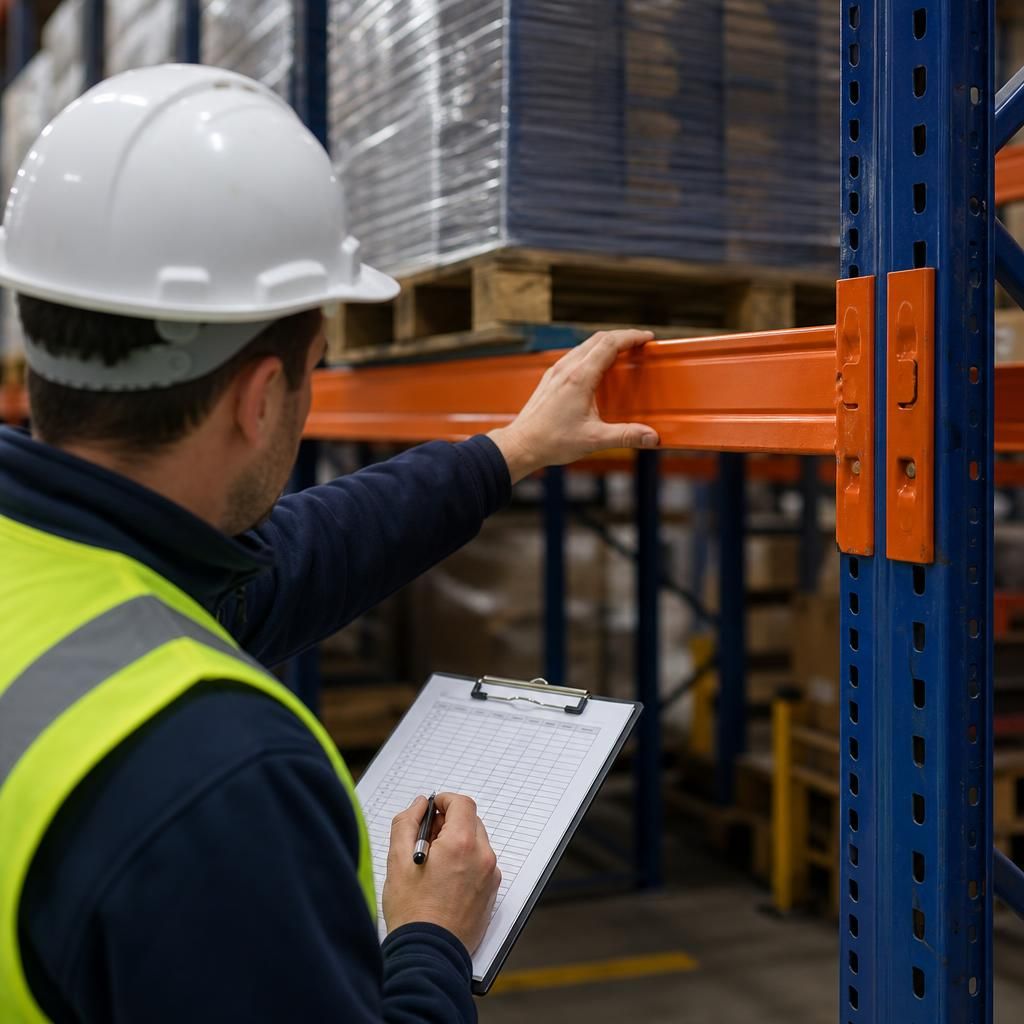

Each beam end should be checked to confirm that it is fully engaged with the upright frame and has not lifted, moved or pulled away from its intended position. Inspectors should look for:

• separation between the connector and upright;
• distortion or cracking of the connector;
• displaced, damaged or missing connection components;
• evidence that the beam has been struck or dislodged; and
• inconsistent beam positions that may indicate movement or incorrect installation.

Connections are essential because they transfer the stored load into the upright frames. A beam that is present but not properly engaged should be treated as a safety concern and prevented from carrying a load until it has been assessed.

Locking pins and safety devices

Check that every required locking pin or other retention device is present, correctly fitted and undamaged. The device should prevent the beam from being accidentally lifted out of the connection during normal warehouse activity. Inspectors should not accept improvised substitutes, loose components or devices that have been fitted in a way that does not match the system design.

Where a locking device is missing or cannot be confirmed as effective, the beam should be reported for prompt corrective action. The inspection record should identify the precise location so that the issue can be rectified without ambiguity.

Beam alignment, level and position

Check that the beam remains level, correctly seated and positioned at the intended height. Compare the beam with adjacent bays and the original layout information where available. Misalignment, uneven seating or an unexplained change in beam position can indicate impact, connection failure, frame movement or incorrect adjustment.

The inspection should also consider whether the beam spacing remains suitable for the stored goods and pallets. A change to beam levels can affect clearances, load placement and the way forces are applied to the system. Any adjustment should be carried out by an appropriately trained person and should not compromise the manufacturer’s design.

Load capacity and identification information

Confirm that the visible load-capacity information is present, legible and appropriate for the installed arrangement. The information should allow users to understand the permitted loads, beam levels and relevant configuration limits. Check that the sign has not been obscured, damaged or replaced with information for a different layout.

Load information should be compared with the actual installation, including beam type, span, level arrangement and frame configuration. A change in components or layout can affect capacity, so the presence of a sign alone does not prove that the current arrangement is suitable. If the configuration cannot be verified, loading should be controlled until the design information has been checked.

Surrounding upright frames and components

A cross beam check should not be limited to the beam itself. Inspect the connected upright frames, baseplates, anchors, bracing, protection and adjacent components for conditions that could affect beam performance. Relevant findings may include:

• bent or damaged uprights;
• loose, missing or damaged anchors;
• displaced bracing or frame components;
• damaged floor protection or evidence of movement;
• impact damage in the same bay or neighbouring bays; and
• unsafe gaps, obstructions or clearances around the stored load.

Damage to a frame can change the alignment and load path of its connected beams. The inspector should therefore record related defects together rather than treating each component as an isolated item.

Evidence of overloading, impact or misuse

Look for signs that the beam or its bay has been subjected to conditions outside normal use. These can include bent components, pallet damage, contact marks, displaced loads, repeated forklift impacts and storage that exceeds the stated limits. The cause of a defect is important because repairing one beam may not address an ongoing risk created by vehicle movements, poor load placement or inadequate protection.

Where impact is suspected, inspect the affected beam, both connections, the supporting uprights and nearby bays. Do not assume that damage is confined to the point where a visible mark appears.

Load placement and clearances

Confirm that pallets and other loads are supported as intended, positioned within the bay and not bearing improperly against the beams or frames. Check for overhanging loads, uneven loading, damaged pallets and insufficient clearance for safe handling. Incorrect placement can impose concentrated or unplanned forces on a cross beam even when the beam itself appears undamaged.

Storage practices should be considered alongside the physical condition of the system. If users are routinely placing loads outside the permitted arrangement, the inspection findings should include a practical corrective action, such as revised loading controls, improved protection or additional operator guidance.

Inspection records and follow-up actions

Every significant finding should be recorded against an identifiable bay, level or component. A useful record describes the defect, its location, likely cause where known, any immediate restriction and the action required. Photographs can support the record, but they should not replace a close physical assessment.

Any defect that may affect stability or load capacity should be controlled immediately in accordance with the inspector’s assessment. This may involve removing loads, preventing access to the affected location, fitting temporary controls or arranging repair or replacement. Repairs should use suitable components and follow the system manufacturer’s requirements; damaged beams should not be straightened, welded or modified without appropriate technical approval.

A thorough warehouse racking cross beam check therefore combines visual examination, confirmation of connections and load information, assessment of the complete bay and accurate follow-up. Able Racking’s inspectors can help distinguish minor deterioration from defects requiring urgent action, while providing a clear record of the condition of the installation and the steps needed to keep it safe and compliant.
