What are the critical signs of damage to look for during warehouse racking cross beam inspections?

Critical damage to warehouse racking cross beams includes any defect that changes the beam’s shape, weakens its material, affects its connection to the frame or reduces its ability to support the stated load. During an inspection, particular attention should be given to bending, twisting, cracking, severe dents, corrosion, damaged welds, displaced connectors and signs that a beam has moved within or away from its supports. Suspected serious damage should be reported immediately, and the affected bay should be isolated until a competent person has assessed it.

Visible bending, bowing or sagging

A cross beam should remain straight and properly seated in its designed position. A beam that is bowed, visibly sagging or permanently bent may have been overloaded, struck by handling equipment or weakened by previous damage. Compare its position with adjacent beams where appropriate, but do not rely solely on visual comparison. A competent inspector should assess whether the beam’s condition affects its safe working capacity.

Localised bending near a frame upright or connector is especially important because this area transfers load into the supporting structure. Even if the beam remains attached, distortion around the connection can reduce the effectiveness of the support.

Twisting, buckling or rotation

Twisting occurs when a cross beam has rotated along its length or no longer sits squarely between the uprights. Buckling may appear as a kink, flattened section or irregular change in the beam profile. These defects can result from impact, uneven loading or a connection that has become displaced.

A twisted or buckled beam should not be straightened on site unless this is part of an approved repair method carried out by a suitably competent specialist. Applying force to return the beam to shape can conceal damage, further weaken the steel or disturb the surrounding structure.

Cracks, splits and fractures

Look for cracks in the beam section, around holes, at the ends of the beam and near welded areas. Splitting or tearing of the steel is a serious defect, even where the opening appears small. Cracks can grow under repeated loading and may indicate that the beam has been subjected to excessive force or impact.

Paint damage can sometimes make cracks easier to see, but a clean painted surface does not confirm that the steel is sound. Where a suspected crack is found, the beam should be treated as damaged until it has been examined properly.

Severe dents, gouges and impact marks

Impact damage is commonly caused by forklifts, pallet trucks, loading equipment or falling goods. Inspect the front and rear faces of each beam, including the ends and the areas close to the uprights. A deep dent, sharp crease, torn section or gouge that removes material can reduce the beam’s strength.

Several smaller impact marks may also indicate repeated contact or an ongoing traffic-management problem. The inspection should therefore consider both the individual defect and the likely cause. Protecting the affected area from further impact is important while repairs or control measures are arranged.

Damaged, loose or displaced connectors

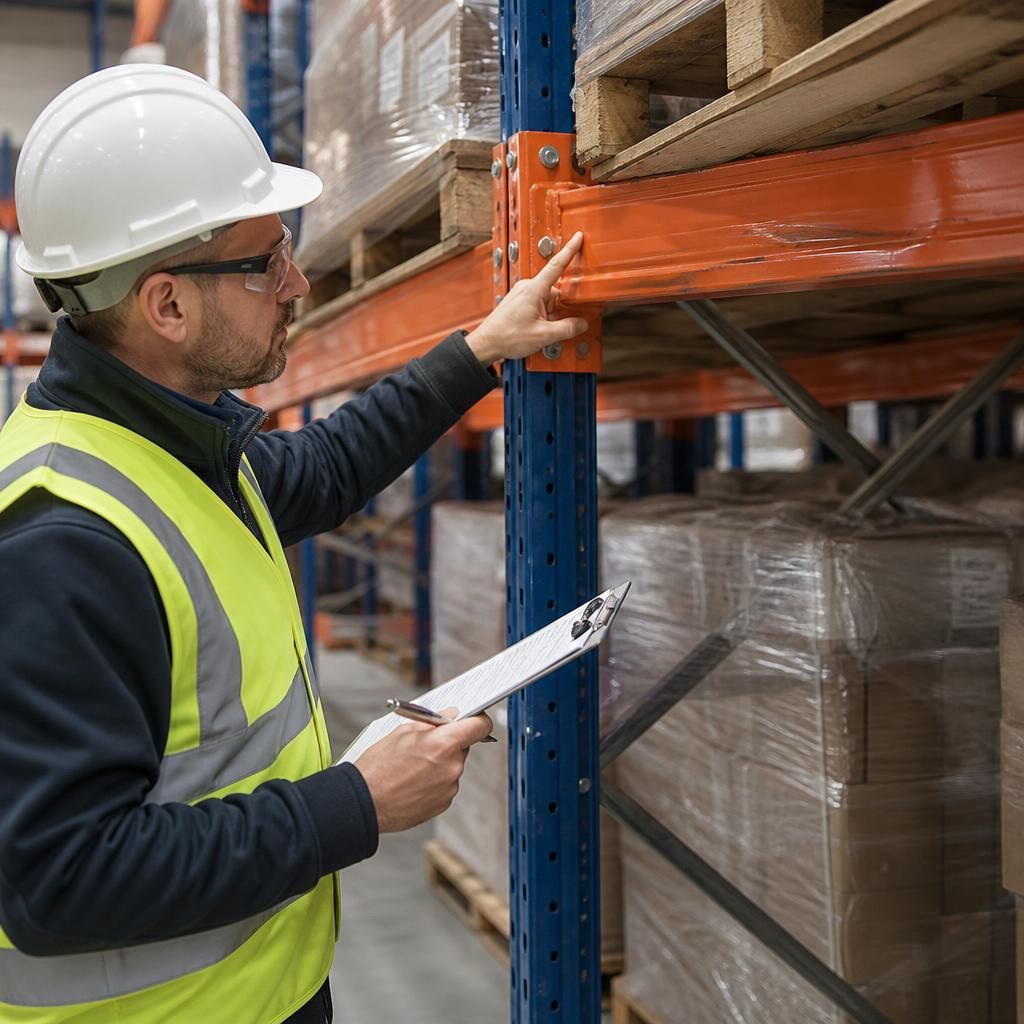

Cross beams rely on their connectors, locking devices and supporting interfaces to remain securely attached to the frame. Check for connectors that are bent, cracked, torn, loose, incompletely engaged or displaced from their intended position. Missing locking pins, damaged safety clips and signs of movement at the connection should also be recorded.

A beam can look undamaged while its connection is unsafe. Signs such as a visible gap, uneven seating, fresh scrape marks, movement, or a beam end that is not fully engaged with the upright should be treated seriously. Do not assume that a connector is secure simply because the beam has not fallen from the frame.

Damage to welds and end details

Inspect welded areas for cracking, separation, distortion, visible gaps or welds that appear broken or incomplete. Pay attention to the beam ends, connector plates and any load-bearing details. Damaged welds can compromise the transfer of force between components and may worsen when the beam is loaded.

Weld repairs should only be specified and completed using an appropriate method by suitably qualified personnel. Unauthorised welding, drilling or cutting can alter the design assumptions for the warehouse racking system and may invalidate the manufacturer’s requirements.

Corrosion, rust and section loss

Surface rust is not automatically evidence of structural failure, but corrosion requires closer examination. Look for flaking scale, pitting, swollen areas, perforation and any reduction in the thickness or profile of the steel. Corrosion around beam ends, joints and areas exposed to moisture can be particularly significant.

Where corrosion has removed material or weakened a connection, cleaning and repainting will not restore the original strength. The condition should be assessed by a competent inspector, with repair or replacement considered where necessary.

Holes, cuts and unauthorised alterations

New holes, drilled sections, cut-outs, ground areas or other alterations can weaken a cross beam, even if there is no obvious bending. Inspectors should compare the beam with the original design, manufacturer’s information or available installation records where possible. Any modification that has not been approved should be reported for technical assessment.

Fixings attached to a beam can also create local damage or interfere with its intended function. Items should not be welded, bolted or clamped to load-bearing components without confirming that the arrangement is suitable.

Changes in level, alignment or load position

A beam that has dropped, shifted, tilted or no longer aligns with neighbouring beams may have a damaged connector, upright or supporting component. Check for uneven beam levels, gaps between connected parts, altered pallet positions and signs that loads are no longer being supported as intended.

These changes can occur after an impact or after components have been removed and refitted incorrectly. They should not be dismissed as a cosmetic issue, particularly where pallets sit unevenly or loads are being carried closer to a beam end than intended.

Signs of overloading or excessive deflection

Permanent deformation, repeated sagging, damaged load labels or pallets that do not sit correctly may indicate that the warehouse racking cross beam has been overloaded or used outside its design conditions. Check the beam against the specified load information and the way goods are actually stored. A beam that appears sound can still be unsuitable if the load, span, pallet type or configuration has changed.

Do not increase the load or alter the beam level to compensate for a problem. Any change to the configuration should be reviewed against the system design and manufacturer’s guidance.

What to do when damage is found

• Stop placing loads in the affected location and prevent access where the defect could create an immediate risk.
• Do not unload a visibly unstable bay without a suitable risk assessment and safe working method.
• Record the precise location, type and apparent severity of the damage, supported by photographs where this can be done safely.
• Check adjacent beams, uprights, connectors, guards and floor areas for related impact or movement.
• Arrange assessment by a competent warehouse racking inspector or suitably qualified structural specialist.
• Do not straighten, weld, drill, paint over or reuse a damaged beam until the required action has been confirmed.
• Complete repairs or replacement using compatible components and an approved method, then verify the area before returning it to service.

Minor paint scuffs without distortion, cracking, corrosion or connection damage may not affect the beam’s capacity, but they should still be recorded where they could indicate contact. The significance of a defect depends on its location, depth, extent, cause and effect on the complete warehouse racking system. A thorough cross beam inspection therefore considers the beam itself, its connections, the supporting frames, the stored loads and any evidence of previous impact or alteration.

Inspection findings should be documented clearly, including the location, condition, recommended control measure and close-out action. This creates a reliable record for monitoring recurring damage and confirming that repairs have been completed. Where there is doubt about the severity of a defect, treat the beam as unsafe until a competent assessment has been completed.
