What are the key components inspected during a pallet racking inspection?

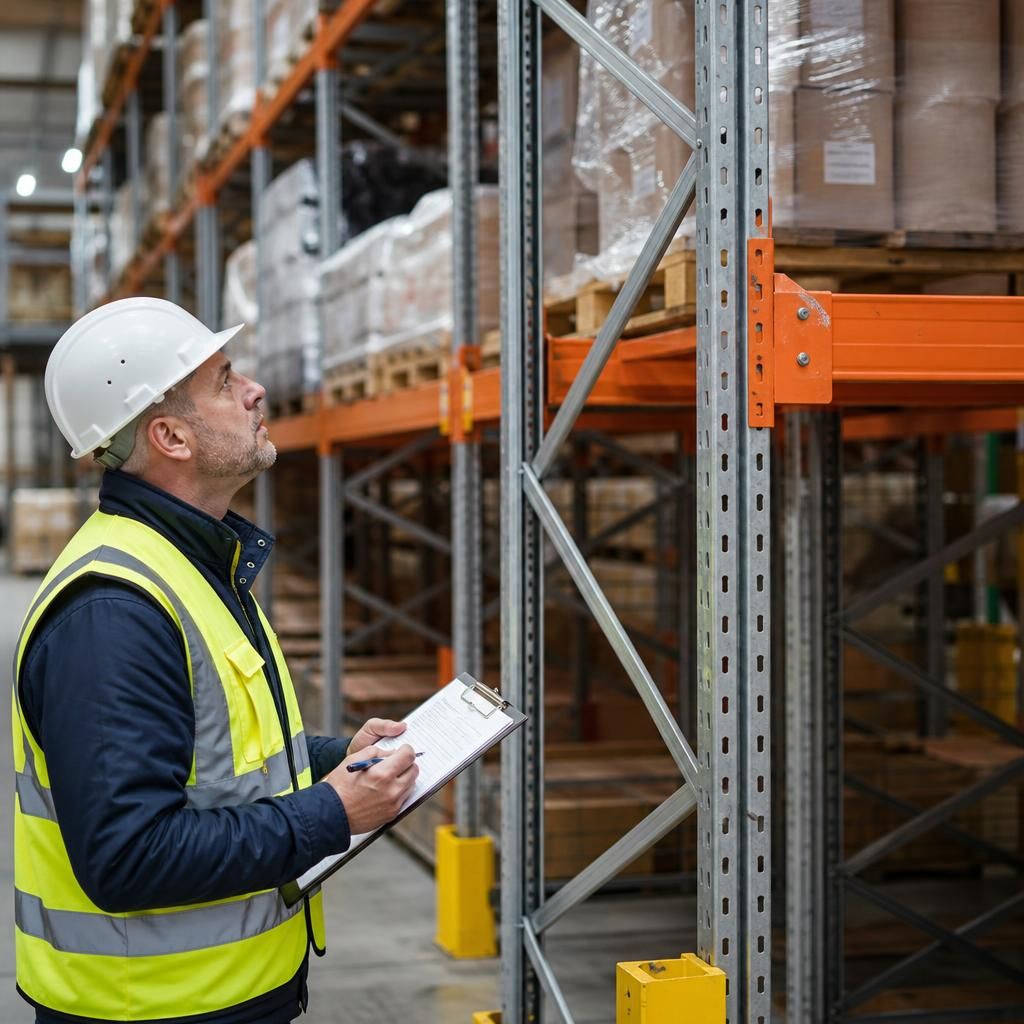

A pallet racking inspection examines every part of the storage system that could affect its strength, stability or safe use. This normally includes the frames, uprights, beams, bracing, connections, safety locks, floor fixings, protection equipment, load notices, aisle clearances and the surrounding warehouse conditions. The inspector also considers damage, overloading, unauthorised alterations and any changes to the way the installation is being used.

Frames and uprights

The vertical frames carry the loads from the beams down to the floor, so the inspection checks uprights for impact damage, bending, twisting, corrosion, splits, deformation and other signs of weakened steel. The baseplates, upright sections and frame geometry are examined to confirm that the structure remains plumb and correctly positioned. Damage near the bottom of an upright is particularly important because it can reduce the capacity of the entire frame.

Inspectors also check whether frame components are missing, incorrectly assembled or unsuitable for the current configuration. A frame that appears intact may still present a risk if its dimensions, components or spacing no longer match the original design or load information.

Beams and beam connections

Horizontal beams are assessed for bending, twisting, impact marks, cracking, corrosion and movement from their intended position. The inspector checks the beam-to-upright connections, including connector components, locking devices and securing arrangements. These connections must be properly engaged and free from damage; a beam that has lifted, become displaced or lost its safety lock can be unsafe even where there is no obvious damage to the steel.

The inspection also considers whether the beam levels and spans are consistent with the intended layout. Altered beam positions can change the capacity of a bay, affect pallet clearances and create a mismatch with the stated safe working loads.

Bracing and structural members

Diagonal and horizontal bracing helps frames resist movement and maintain their shape. These members are checked for bends, impact damage, loose or missing fixings, corrosion and signs of unauthorised modification. Any bracing that has been removed, cut, replaced incorrectly or obstructed may affect the stability of the installation.

Where a component has been repaired or replaced, the inspector considers whether it is the correct type and has been fitted in accordance with the system design. Improvised repairs should not be treated as an acceptable substitute for properly specified components.

Baseplates, floor fixings and the warehouse floor

The base of each frame is inspected for damage, correct seating and adequate contact with the floor. Floor anchors and fixings are checked for presence, tightness, damage and signs of movement. The condition of the concrete around the fixings is also relevant, as cracking, spalling or deterioration can reduce the effectiveness of the anchorage.

The floor itself is assessed for defects that could affect stability, including uneven surfaces, damaged concrete, obstructions or settlement. The inspection may also identify conditions around the installation that need attention, such as water ingress, poor housekeeping or vehicle routes that increase the likelihood of impact.

Safety locks and load-supporting accessories

Beam safety locks and other retaining devices are checked to confirm that they are present, correctly fitted and functioning as intended. Depending on the installation, the inspection may also cover pallet supports, decking, support bars, timber components, mesh panels, backstops and other accessories used to support or retain stored goods.

These items must be suitable for the loads and compatible with the system. Missing, damaged or poorly fitted supports can allow pallets to become unstable or fall through the structure. Accessories should not be altered or substituted without confirming their suitability.

Impact protection and protective equipment

End-of-aisle guards, upright protectors, column guards, barriers and other protective equipment are examined for impact damage, displacement, inadequate fixing and loss of effectiveness. Protection is considered in relation to the traffic routes and handling equipment operating nearby.

Protective equipment does not remove the need to repair damaged frames. It is intended to reduce the likelihood or severity of future impacts, while structural damage must be assessed and dealt with separately.

Load notices, labels and configuration information

The inspection checks whether safe working load notices are displayed, legible and appropriate for the installation. The information should correspond with the actual frame, beam arrangement, bay configuration and loading method. Any changes to beam levels, pallet sizes, equipment or storage practices may require the load information to be reviewed.

Labels and warning signs should be positioned where operators can see them and should not be obscured or misleading. An inspection is not only a check of the steel; it also verifies that users have the information needed to load the system safely.

Pallets, loads and clearances

The inspector observes how pallets and goods are stored, including pallet condition, load stability, overhang, damage, uneven distribution and compatibility with the beam levels. Unsafe practices may include placing loads beyond the intended capacity, storing goods that obstruct aisles, allowing pallets to rest incorrectly on beams or reducing the clearances needed for safe handling.

Aisle widths, vertical clearances and gaps between loads and structural components are considered in relation to the handling equipment and the approved layout. The assessment may identify risks caused by protruding goods, unstable loads, poor visibility or insufficient room for loading and unloading.

Damage, alterations and evidence of movement

Every accessible area is reviewed for damage caused by forklift trucks, pallet handling equipment or other activity. The inspector looks for dents, buckling, scratches through protective coatings, distorted components, displaced beams, damaged fixings and signs that the structure has been struck or moved.

Unauthorised changes are also recorded. Examples include removing bracing, changing beam levels without approval, extending bays, mixing components from different systems or attaching equipment that was not included in the original design. Signs of settlement, progressive deformation or repeated impact may indicate that further technical assessment or immediate control measures are required.

Housekeeping and the surrounding area

The condition of the area around the pallet racking is relevant to safe operation. Inspectors check for blocked aisles, stored items in traffic routes, spillages, waste, poor visibility, damaged floor markings and obstructions that could cause collisions. They may also note lighting, access and operational conditions where these affect the ability to inspect or use the installation safely.

Good housekeeping supports safe loading and reduces avoidable impact. It does not, however, compensate for structural defects or make damaged components safe to use.

How findings are recorded

Findings are recorded by location and component so that the responsible person can identify the affected bay or area and take proportionate action. The report should distinguish between damage requiring immediate isolation, defects requiring prompt repair and lower-risk issues that need monitoring or correction.

Where a defect could cause injury or collapse, the affected area should be taken out of use until it has been made safe. Loads may need to be carefully removed, the area may need to be cordoned off and repairs should be completed by suitably competent personnel. Components should not be straightened, welded or modified on site unless the repair method has been properly assessed and authorised.

Why each component matters

The components are interdependent: a damaged upright can affect frame capacity, a missing beam lock can allow displacement, a failed floor fixing can reduce stability and an incorrect load notice can lead to overloading. For that reason, a proper pallet racking inspection assesses the installation as a complete system rather than focusing only on visible damage.

After the inspection, corrective actions should be prioritised, completed and recorded. Repairs, replacements or changes to the layout should be followed by appropriate checks to confirm that the system is safe, correctly configured and being used within its stated limits.
