What criteria should be used to assess the current condition of warehouse racking components during inspections?

The current condition of warehouse racking components should be assessed against structural integrity, safe function, protection from impact, load suitability, installation requirements and the manufacturer’s guidance. An inspection should identify defects, determine their likely effect on stability or safe use, record their location and severity, and specify the action required. Components should not be judged on appearance alone: a small deformation at a critical connection may present a greater risk than more obvious superficial damage elsewhere.

Confirm the system and inspection criteria first

Before examining individual components, the inspector should establish what system is installed and how it is intended to operate. This includes checking the layout, component type, bay configuration, stated load capacities, operating conditions and any available design or installation information. The assessment should take account of the manufacturer’s tolerances, the original specification, relevant safety guidance and the way the system is actually being used.

• Check that the installed arrangement matches the approved or recorded layout.
• Confirm that load notices are present, legible and consistent with the current configuration.
• Identify any changes, extensions, removals or repairs since the previous inspection.
• Consider the use of handling equipment, traffic routes, pallet types and loading practices.
• Review previous inspection findings to establish whether defects have worsened or remained unresolved.

Assess uprights, frames and bracing

Uprights and frame bracing are primary structural components, so they should be checked for impact damage, bending, twisting, splits, buckling, corrosion and other deformation. Particular attention is required at the base of each frame, where contact with handling equipment is more likely, and at points where loads or bracing forces are transferred.

• Look for out-of-plumb frames, leaning sections or changes in alignment.
• Inspect upright faces, flanges and perforations for dents, tears, kinks or local buckling.
• Check horizontal and diagonal bracing for bending, distortion, loose connections or missing members.
• Examine baseplates and the area around them for displacement, cracking or signs of impact.
• Check that frame anchors are present, secure and suitable for the floor and installation.
• Look for corrosion that has reduced the section, weakened a connection or affected the floor fixing.

Damage to an upright should be considered in relation to its position, extent and effect on the frame. A defect close to the base or at a structural connection may require more urgent attention than an isolated mark that has not affected the component’s shape or strength.

Check beams and beam-to-frame connections

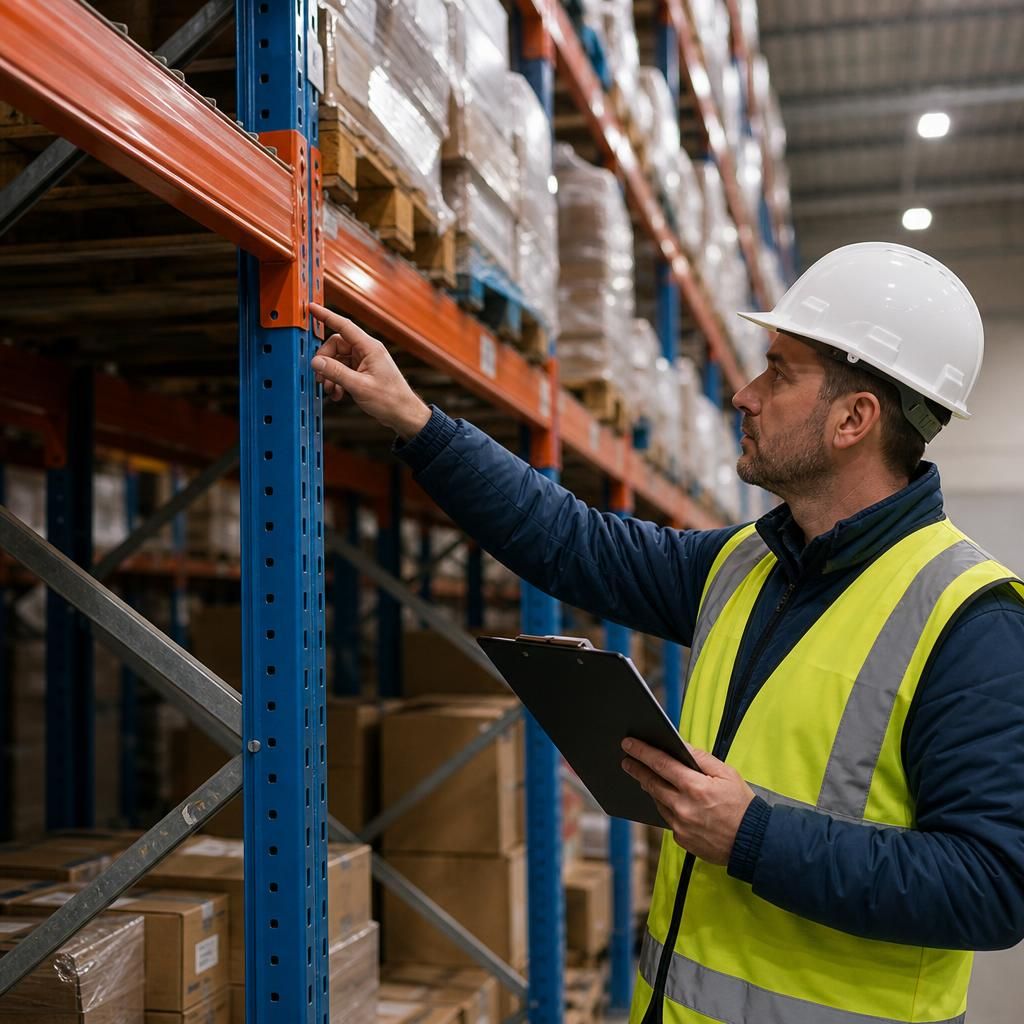

Beams should be inspected for bending, twisting, dents, cracking, corrosion and signs that they have been overloaded or displaced. The inspector should also examine the end connectors and locking arrangements, as a beam that appears correctly positioned may still be inadequately secured.

• Check that beams are fully engaged in the frame connectors and seated at the intended levels.
• Confirm that locking pins or equivalent retaining devices are fitted and effective.
• Look for permanent deflection, impact marks, crushed sections or damaged welds.
• Inspect beam ends and connectors for distortion, cracking, tearing or separation.
• Check for unauthorised alterations, drilled sections or repairs that could affect capacity.
• Compare beam levels and spans with the recorded configuration and load information.

Any beam that has moved, become detached, developed significant deformation or shows damage to its connector should be treated as a potential safety-critical defect until it has been assessed and made safe.

Examine decking, supports and load-bearing accessories

Decking and supporting accessories should be assessed for their ability to carry and retain the intended loads. This includes checking for broken boards, distorted panels, displaced supports, missing clips and gaps that could allow pallets or stored goods to fall.

• Inspect pallet supports, safety bars, mesh decks and other load-supporting items for damage or displacement.
• Check that accessories are compatible with the installed beams and frame arrangement.
• Look for excessive deflection, damaged welds, sharp edges and incomplete seating.
• Confirm that supports cannot easily move out of position during normal operation.
• Check that stored loads are suitable for the deck type and do not exceed the stated capacity.

Where decking has been modified or replaced, the inspector should verify that the replacement is appropriate for the system rather than assuming that a similar-looking component has equivalent performance.

Assess protection and safety components

Protective components should be checked for presence, condition and correct positioning. These items reduce the likelihood or consequence of impact and falling goods, but they cannot compensate for a damaged structural member.

• Inspect end-of-aisle and upright guards for impact damage, looseness and secure attachment.
• Check row spacers, anti-collapse measures and rear protection where these are part of the design.
• Confirm that mesh panels, barriers and pallet retention features are complete and undamaged.
• Look for missing, bent or incorrectly positioned protective components.
• Ensure that safety devices do not obstruct access, loading or emergency routes.

Protection should be assessed against the actual traffic pattern. A guard may be present but ineffective if it is positioned incorrectly, has become detached or does not protect the exposed part of the frame.

Check floors, fixings and the surrounding area

The condition of the supporting floor and the interface between the structure and the building should form part of the assessment. Inspectors should look for damaged or loose anchors, cracked concrete, settlement, uneven surfaces and obstructions that could affect alignment or safe operation.

• Check that baseplates remain fully supported and have not lifted or shifted.
• Inspect anchors for looseness, damage, corrosion or signs of pull-out.
• Look for floor deterioration that could affect frame stability or handling equipment movement.
• Check aisles and access routes for obstructions, spillages and conditions that increase impact risk.
• Assess whether lighting and visibility allow defects, load notices and damage to be identified safely.

Where movement, settlement or building damage is suspected, a suitably qualified person may need to carry out a more detailed structural or floor assessment.

Assess load suitability and operational condition

A component can be physically undamaged yet unsuitable if the system is being loaded differently from its design. The inspection should therefore compare actual use with the stated capacities and configuration.

• Check pallet dimensions, weights and condition against the intended storage arrangement.
• Look for overhanging, unstable, damaged or poorly positioned loads.
• Confirm that loads are distributed as intended and do not rest on unsupported areas.
• Check that beam levels, bay widths and loading methods have not changed without review.
• Identify signs of overloading, including beam deflection, frame distortion and damaged pallets.
• Ensure load notices remain visible and reflect the current arrangement.

Changes to pallet type, handling equipment, storage density or operating methods should trigger a review of capacity and configuration, even where no visible component damage has been found.

Consider corrosion, wear and environmental effects

Corrosion should be assessed by its location, depth and effect on the component or connection. Surface discolouration may be cosmetic, while flaking, pitting or section loss can reduce strength. Inspectors should also consider exposure to moisture, chemicals, temperature variation and cleaning processes.

• Inspect areas where water, chemicals or debris may collect.
• Check concealed or poorly ventilated connections where corrosion can develop unnoticed.
• Assess wear caused by repeated contact, pallet movement or handling equipment.
• Record any coating failure, sharp edges or deterioration that could affect safe handling.

Cleaning, painting or applying a protective coating should not be used to conceal damage. The underlying condition must be assessed first, and repairs should follow an appropriate technical recommendation.

Grade defects by risk and required action

Every finding should be evaluated according to its severity, location, likelihood of worsening and potential consequence. The grading should be consistent with the applicable guidance and the organisation’s inspection procedure. It should distinguish between defects requiring monitoring, defects requiring planned repair and defects requiring immediate control.

• Low concern: minor, non-progressive issues that do not currently affect structural integrity or safe operation, provided they are recorded and monitored.
• Significant concern: damage or deterioration that could worsen or affect safe use and requires prompt repair, isolation or reduced loading as appropriate.
• Critical concern: damage indicating an immediate risk to people, stability or stored goods, requiring the affected area to be made safe without delay.

The inspection record should state the exact location, component, defect, photographic evidence where useful, risk grade, recommended control and person responsible for closing the action. Vague descriptions such as “damaged frame” are less useful than a precise record identifying the bay, level, component and type of deformation.

Decide when further assessment is necessary

Visual inspection is essential, but it may not resolve every question. Further technical advice should be obtained where damage is complex, tolerances are unclear, the original design information is unavailable, unauthorised alterations are suspected or the defect may affect overall stability. The system should not be returned to normal use solely because a defect is difficult to measure or appears unchanged.

Following the inspection, actions should be prioritised and verified. Damaged components may require unloading, isolation, repair or replacement by competent personnel. Once work is completed, the affected area should be rechecked and the inspection records updated. This approach creates a clear link between condition assessment, risk control and continued safe operation of the warehouse racking system.
