What is the process for a standard warehouse racking installation?

A standard warehouse racking installation follows a planned sequence: site assessment, design confirmation, preparation, delivery, safe assembly, anchoring, protection fitting, inspection and handover. Each stage confirms that the warehouse racking is suitable for the building, intended loads and working conditions before it is put into service.

1. Site assessment and installation planning

Before work begins, the installation team reviews the warehouse and the proposed warehouse racking layout. This usually includes checking:

• Available floor space, working clearances and access routes.
• Floor condition, level and suitability for the proposed loads and anchors.
• Building columns, doors, lighting, fire systems, sprinklers and other fixed obstructions.
• Forklift routes, pedestrian walkways and areas where impact protection may be required.
• Emergency exits, escape routes and safe access for the installation team.
• The method of delivery, unloading and movement of components around the site.

The installation plan should also identify the work area, responsibilities, equipment requirements and controls for working at height or around site traffic. A suitable risk assessment and method statement is prepared so that the work can be completed in a controlled manner.

2. Confirming the design and load requirements

The warehouse racking design is checked against the goods to be stored and the equipment used to load and unload it. Important details include pallet dimensions, pallet weights, beam levels, bay widths, access aisles and the required storage capacity.

The design should specify the permitted configuration and load limits for the warehouse racking. These limits depend on the frame height, beam type, bay arrangement, materials, floor conditions and the way loads are placed into the system. The intended forklift or handling equipment must be compatible with the aisle widths and operating clearances.

Any changes to the agreed layout should be reviewed before installation. Moving a row, changing a beam level or altering the load arrangement can affect clearances, capacity and stability, so these changes should not be made informally on site.

3. Preparing the warehouse

The installation area must be clear, accessible and safe before components arrive. Stock, packaging, vehicles and unrelated work should be removed or controlled around the work zone. Floor markings and setting-out points are then established to show the exact position of each warehouse racking row.

The installer checks that the floor is suitable for the specified system and that the setting-out dimensions can be achieved. If there are concerns about damage, unevenness or obstructions, these should be resolved before assembly starts. The work area is segregated from other warehouse activities, with suitable controls for pedestrians and moving equipment.

4. Receiving and checking the components

Warehouse racking components are unloaded using appropriate handling equipment and stored where they cannot create a trip hazard or become damaged. The installer checks the delivery against the approved design and looks for missing, incorrect or damaged parts.

Frames, beams, bracing, baseplates, fixings, safety accessories and load notices should all be identified before assembly. Damaged structural components should be quarantined and assessed rather than installed. Using an unsuitable or altered component can affect the performance of the complete warehouse racking system.

5. Setting out and assembling the frames

Installation starts by positioning the first frames and establishing a reliable reference point for the rest of the layout. Uprights, bracing and baseplates are assembled in accordance with the design and the component manufacturer’s instructions.

The frames are erected progressively, with temporary stability maintained throughout the work. Beams are fitted at the specified levels and secured using the correct locking devices. Connections must be fully engaged, and components should not be modified by drilling, cutting, welding or other unauthorised methods.

As rows are assembled, installers check alignment, spacing, verticality and aisle dimensions. These checks help identify errors early, before the warehouse racking is fully built and anchored.

6. Anchoring and fitting safety equipment

Once the layout and alignment have been checked, the warehouse racking is fixed to the floor using the specified anchors and installation method. The fixing arrangement must suit the floor construction and the design requirements. Anchors are installed in accordance with the relevant instructions, including any requirements for hole preparation and tightening.

Protective equipment is then fitted where specified. This may include upright guards, end-of-aisle protection, row spacers, anti-collapse devices, beam safety locks and other accessories. The correct protection depends on the warehouse layout, handling equipment and foreseeable impact risks.

7. Final inspection and remedial work

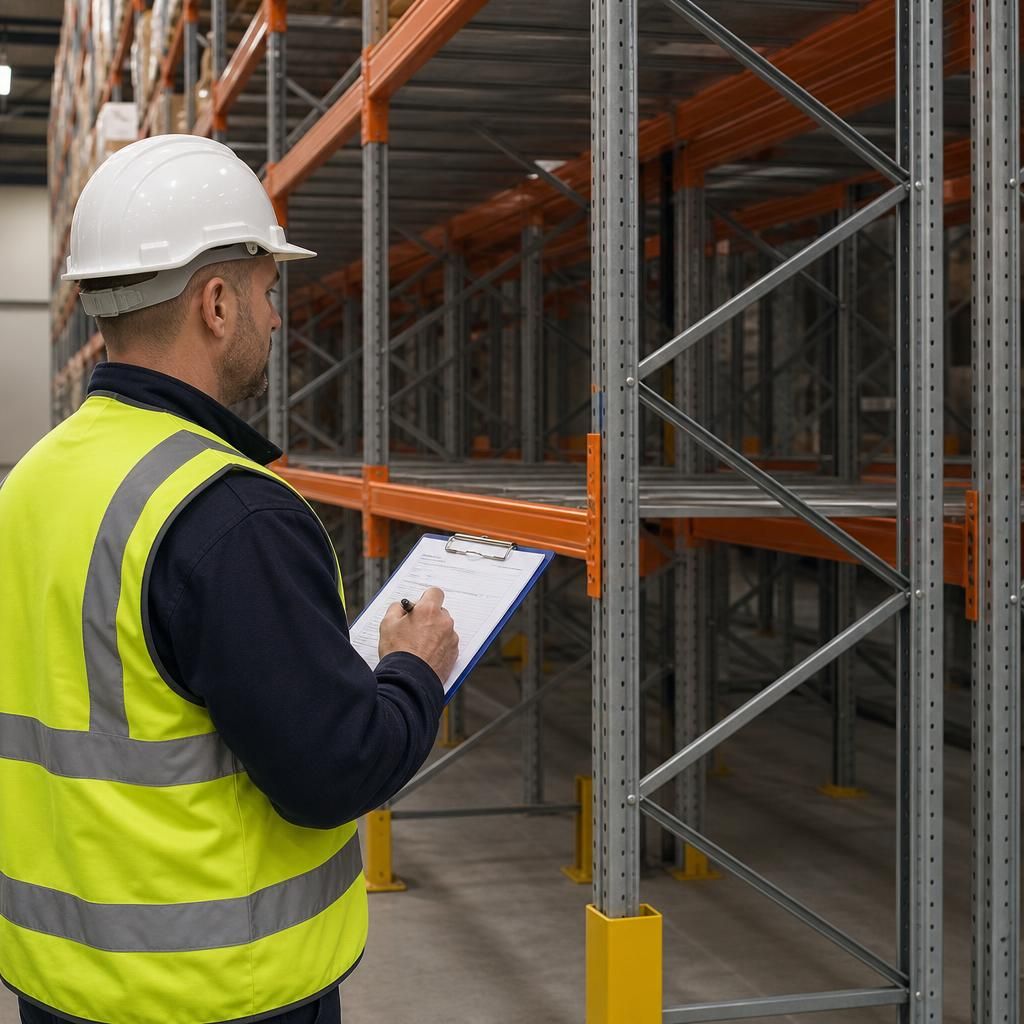

A competent installer carries out a detailed inspection after assembly. This checks that:

• The warehouse racking matches the approved layout and design.
• Frames, beams, bracing and connections are correctly installed.
• Anchors and baseplates are properly fitted.
• Rows are aligned and frames are sufficiently vertical and stable.
• Required clearances and access routes are maintained.
• Safety locks, guards and other protective components are in place.
• There is no visible damage, unauthorised modification or missing component.
• Load notices are displayed clearly and correspond with the installed configuration.

Any defects or deviations should be recorded and corrected before the warehouse racking is released for use. Where the installation differs from the agreed design, the change should be reviewed by the appropriate competent person rather than simply accepted on site.

8. Handover and putting the warehouse racking into service

At handover, the customer should receive the relevant installation and load information, inspection records, layout drawings or other agreed documentation. The warehouse team should understand the permitted loads, operating restrictions and reporting procedure for damage.

The warehouse racking should only be loaded after the installation has passed its final checks. Loads must be placed within the stated limits and positioned as intended. Operators should avoid impacts, dragging loads across beams and storing damaged pallets where they could compromise stability.

What happens after installation?

Installation is the starting point of warehouse racking safety management. The system should be visually monitored for damage and kept clear of unauthorised alterations. Any impact, missing component or change in use should be reported promptly and assessed by a competent person.

Regular warehouse racking inspections should also be arranged in line with the system’s risk assessment and applicable workplace requirements. A formal inspection can identify damage, displacement, corrosion, overloading and other conditions that may not be noticed during routine operations. Prompt repairs and documented follow-up help preserve the warehouse racking’s stability, capacity and safe operation.
