What are the common types of warehouse racking systems used in installations?

The common types of warehouse racking systems used in installations are adjustable pallet racking, drive-in racking, drive-through racking, push-back racking, pallet live racking, carton live racking, cantilever racking and mobile racking. Each system is designed for different load types, access requirements, stock rotation methods, handling equipment and available floor space, so the correct choice should be based on the way the warehouse operates rather than storage capacity alone.

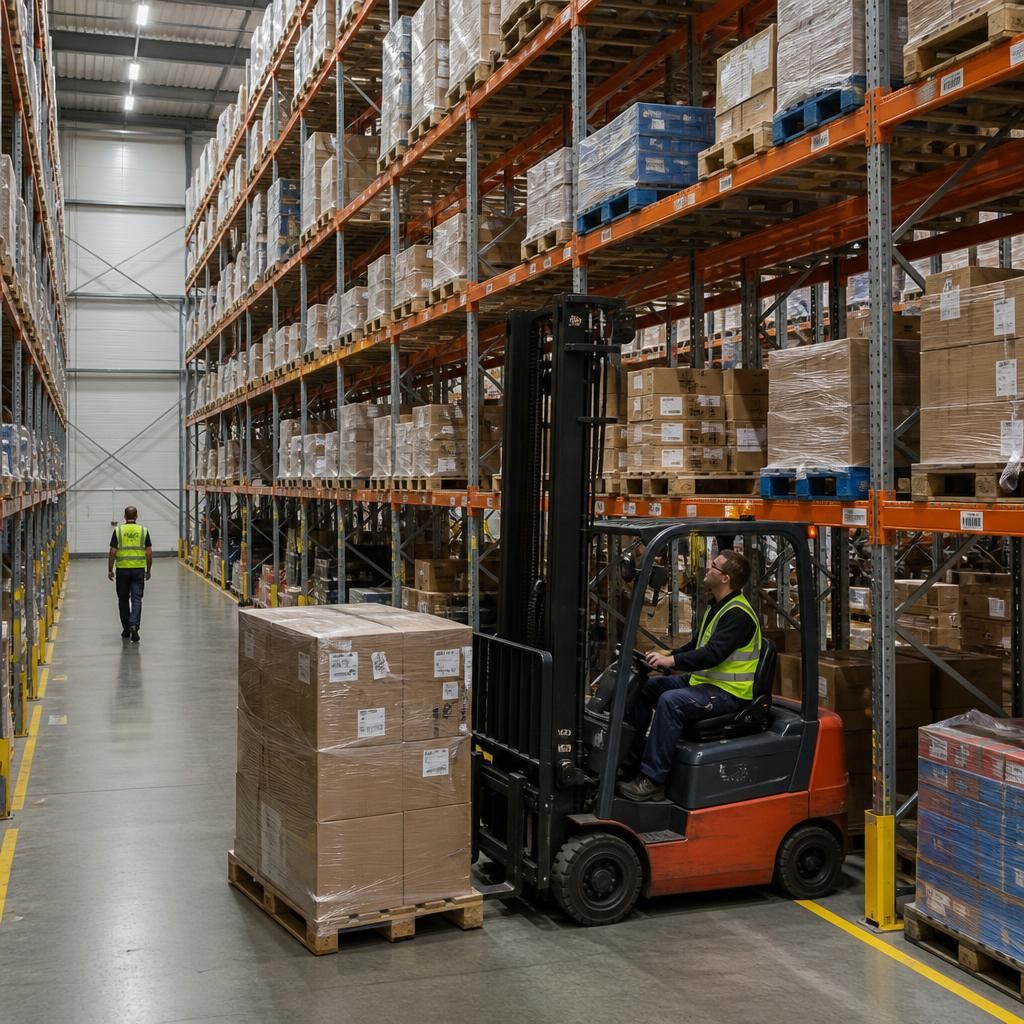

Adjustable pallet racking is the most versatile option for warehouses storing palletised goods with varied stock-keeping requirements. Beam levels can be repositioned to accommodate different pallet heights, while aisles provide direct access to individual locations. This makes it suitable where stock selection and flexibility are more important than achieving the highest possible storage density. A properly designed installation will account for pallet dimensions, load weights, forklift clearances, aisle widths and future changes to the stored inventory.

Drive-in racking is designed for high-density storage where many pallets contain the same or similar products. Forklift trucks enter the structure to place and retrieve pallets, reducing the amount of aisle space required. It generally operates on a last-in, first-out basis, making it more appropriate for goods that do not require strict date rotation. Drive-through racking allows access from both sides and can support first-in, first-out stock rotation when loading and retrieval arrangements are carefully controlled. Both systems require disciplined vehicle operation and precise installation because the structure is exposed to forklift movements within the storage lanes.

Push-back racking uses inclined rails or carts so pallets can be stored at increasing depth and moved forwards when a pallet is removed. It provides greater storage density than directly accessible systems while retaining access to different product lines. This type of warehouse racking is commonly selected where there are several pallets of each product and a last-in, first-out arrangement is acceptable. The installation must be checked for correct rail alignment, load compatibility, pallet condition and safe operating clearances.

Pallet live racking, also known as gravity flow racking, uses rollers or wheels to move pallets from the loading side towards the retrieval side. It supports first-in, first-out stock rotation and separates replenishment traffic from picking activity. This can improve workflow where products are regularly replenished and dispatched. Braking arrangements, pallet quality, lane configuration and loading procedures are important considerations because damaged pallets or unsuitable loads can affect movement through the lanes.

Carton live racking is intended for cartons, totes, trays and other smaller items rather than full pallets. Roller tracks or wheels allow stock to flow towards the picking face, helping operators work from an organised front-facing location. It is useful for order-picking areas with frequent product selection and can be combined with pallet storage elsewhere in the warehouse. The design should consider carton dimensions, unit weights, replenishment methods, pick frequency and the ergonomics of the working position.

Cantilever racking is suitable for long, bulky or irregularly shaped materials that cannot be stored efficiently on conventional pallet beams. Its arms project from upright columns, leaving the front of the structure open for loading. Typical applications include timber, pipes, metal sections, boards and other lengthy products. The specification should cover the length and weight of the materials, how they will be handled, the required arm spacing and the risk of loads extending beyond the structure.

Mobile racking is mounted on powered or mechanically operated bases that move along floor tracks. The system opens an aisle only where access is required, allowing a high proportion of the available floor area to be used for storage. It can be appropriate where space is restricted but regular access is still needed. Design and installation require careful consideration of floor capacity, track positioning, operating controls, emergency stops, access protection and the relationship between moving units and nearby work areas.

Other specialist arrangements may be used for particular applications, including tyre storage, drum storage, shelving-supported picking areas and systems designed for automated handling equipment. These should not be selected in isolation. The storage structure, pallets, vehicles, building and operating procedures all need to work together as one safe installation.

When selecting a warehouse racking system, assess the following factors:

• Load characteristics: confirm the pallet or item dimensions, weight, stability and suitability for the proposed support arrangement.
• Stock rotation: establish whether the operation requires first-in, first-out access, last-in, first-out storage or direct access to every product line.
• Access requirements: consider how often stock is replenished or picked and whether forklift trucks, reach trucks, hand-operated equipment or automated vehicles will be used.
• Available space: review building height, floor area, columns, doors, lighting, fire protection, pedestrian routes and required working clearances.
• Future requirements: allow for changes in product range, pallet dimensions, load weights and operational volume without compromising the original design.
• Safety and compliance: ensure the proposed structure is suitable for the building and use, with appropriate protection, signage, load notices and inspection arrangements.

Professional installation involves more than assembling the frames and beams. Before work starts, the installer should verify the design assumptions, inspect the floor and building conditions, confirm the specified components and identify any constraints affecting access or installation. During assembly, frames, beams, bracing, anchors, guards and accessories must be fitted in accordance with the approved design and manufacturer requirements. The completed system should then be checked for alignment, stability, damage, clearances and correct load signage before it is put into service.

Existing warehouse racking should not be altered by moving beams, removing bracing or adding components without confirming that the revised arrangement remains suitable. Changes to load levels, pallet types or handling equipment can affect the capacity and stability of the system. Regular inspections and prompt reporting of impact damage are also essential, particularly in areas where industrial vehicles operate. A competent warehouse racking specialist can help compare the available systems, confirm the practical requirements and provide installation advice based on the warehouse layout and operating conditions.
