What types of warehouse racking systems are best for different inventory needs?

The best warehouse racking system depends on the inventory being stored, including its dimensions, weight, pallet type, turnover rate, stock rotation requirements and the level of access needed. Selective pallet racking is usually the most adaptable option for varied stock, while drive-in and push-back systems provide greater storage density. Cantilever systems suit long or irregular products, and carton flow or shelving-based systems are often more efficient for smaller items picked individually.

A suitable design must balance storage capacity with safe access, stock control and handling equipment. The system that stores the greatest quantity is not necessarily the most effective if it slows picking, prevents direct access to products or creates unsuitable loading conditions. The following options cover the most common inventory requirements.

Selective pallet racking for varied inventory and direct access

Selective pallet racking is appropriate where a warehouse holds multiple product lines and operators need direct access to individual pallets. Each pallet position can generally be reached without moving other loads, making this system suitable for businesses with a broad stock range, frequent order picking or changing inventory profiles.

Its flexibility makes it useful for general warehousing, distribution and manufacturing storage. Beam levels can be configured around pallet dimensions and load requirements, subject to the design limits of the components and the supporting structure. The trade-off is that aisles occupy space, so selective pallet racking may provide less storage density than systems designed for higher-volume, more uniform stock.

Drive-in and drive-through systems for high-density, uniform stock

Drive-in racking is designed for storing large quantities of the same or similar products where stock variety is limited and maximum storage density is important. Forklift trucks enter storage lanes to place pallets on supporting rails, reducing the amount of aisle space required. This arrangement is often suitable for products held in batches or where last-in, first-out stock rotation is acceptable.

Drive-through configurations allow access from both ends of a lane and can support a first-in, first-out approach when the layout, loading sequence and operating controls are properly managed. These systems are less suitable where every pallet needs immediate access or where product lines change frequently. Pallet compatibility, truck dimensions, load stability and driver training are particularly important because the handling equipment operates within the structure.

Push-back racking for dense storage with selective access

Push-back racking stores pallets on inclined rails or nested carriers. When a new pallet is loaded, it pushes the existing pallet backwards; when the front pallet is removed, the remaining pallets move forward under controlled conditions. This provides higher density than conventional selective pallet racking while allowing access to several product lanes from the aisle.

Push-back systems can suit medium-turnover products stored in batches, particularly where direct access to every individual pallet is not essential. They require careful consideration of pallet quality, load compatibility, lane depth and the way stock is loaded and retrieved. They are not generally the first choice where strict first-in, first-out rotation is required unless the design and operating process specifically support it.

Pallet flow systems for stock rotation and high-volume picking

Pallet flow racking uses rollers and gravity to move pallets from the loading side towards the picking side. It is suited to high-volume products where first-in, first-out rotation is important, such as goods with a defined shelf life or batches that need to be issued in sequence. Separating loading and unloading activities can also help organise warehouse traffic.

The design must account for pallet condition, load consistency, roller performance, braking arrangements and the required loading method. Loads that vary significantly in size or weight may not move consistently, so a site assessment and product review are needed before this option is selected.

Mobile racking for making better use of floor space

Mobile racking is installed on powered or mechanically operated bases that move along floor tracks, allowing aisles to be opened only where access is required. This can increase storage capacity within a restricted footprint while retaining access to individual storage locations.

Mobile systems are most useful where space is expensive or limited and stock does not need to be accessed simultaneously from every aisle. Their design must include suitable floor construction, track alignment, access controls, emergency arrangements and protection for the moving equipment. Operational procedures also need to prevent movement when personnel or handling equipment are in an unsafe position.

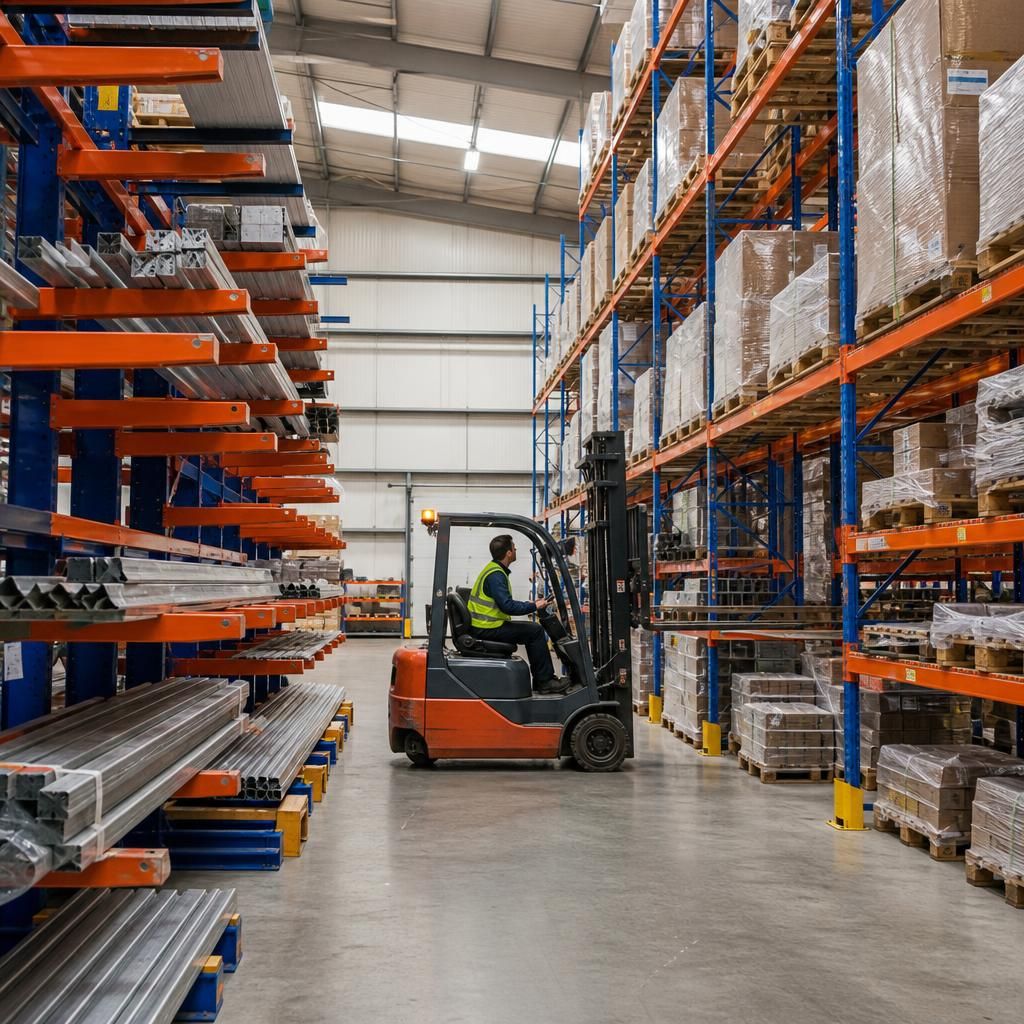

Cantilever racking for long, bulky or awkward products

Cantilever racking is designed for products that do not store efficiently on conventional pallet beams. Its arms project from upright columns, providing open access for items such as timber, pipes, profiles, sheet materials and other lengthy goods. It can be configured for one-sided or two-sided loading depending on the layout and access requirements.

The correct arm length, spacing, capacity and bracing arrangement depend on the dimensions, weight distribution and rigidity of the products. Long loads should be supported at suitable points to prevent sagging, rolling or instability. Forklift access and the risk of loads extending into traffic routes must also be considered during the design.

Carton flow racking for fast-moving small items

Carton flow racking uses inclined rollers or wheels to present cartons at the picking face. Stock is replenished from the rear and picked from the front, which supports organised first-in, first-out rotation and reduces the distance operators travel between product lines.

This system is suitable for small packaged products, order-picking operations and stock with frequent demand. It works best when cartons have compatible bases and consistent dimensions. The correct lane width, roller specification, product separation and replenishment method help prevent cartons from stopping, colliding or becoming difficult to retrieve.

Shelving and small-parts storage for individual picking

Light-duty shelving, bin storage and multi-tier shelving arrangements can be more suitable than pallet storage for small components, boxed products, tools and items picked individually. These systems support clear product identification and manual access, particularly where stock is too small or light to justify pallet positions.

The layout should reflect picking frequency, product dimensions and ergonomic reach. Heavier items should be positioned at appropriate levels, and shelves must not be overloaded or altered without checking their capacity. Where a shelving arrangement includes platforms, stairs or multiple levels, the complete installation needs to be assessed as a coordinated system with suitable access and protection measures.

How to match the system to inventory needs

• Mixed product lines: Choose a system that provides direct access and adjustable storage locations, commonly selective pallet racking or suitable shelving.
• High-volume, uniform products: Consider dense systems such as drive-in, push-back or pallet flow, depending on stock rotation and access requirements.
• Short shelf-life products: Prioritise a layout and system that supports first-in, first-out stock control, such as pallet flow or carton flow where product characteristics allow.
• Long or irregular products: Use cantilever storage with adequate support, restraint and handling clearance.
• Fast-moving small items: Use carton flow, shelving or bin storage to keep picking faces accessible and reduce unnecessary travel.
• Restricted floor area: Assess high-density or mobile solutions, while retaining safe routes, emergency access and sufficient operating clearance.

Other factors include the available ceiling height, floor condition, forklift type, pallet dimensions, building columns, sprinkler arrangements, pedestrian routes and anticipated changes in stock. A system should also allow for inspection, maintenance and the safe replacement of damaged components.

Before installation, the proposed layout and load configuration should be checked against the manufacturer’s specifications, relevant guidance and the warehouse’s actual operating conditions. Uprights, beams, bracing, guards, connectors and floor fixings all contribute to the performance of the installation. Loads must remain within the stated capacities, with clearly displayed load information and suitable controls for any changes.

For that reason, choosing a warehouse racking system should not be based on storage density alone. A practical assessment of inventory, handling methods, stock rotation and future requirements will identify the most suitable arrangement and reduce the likelihood of costly changes later. Able Racking can review these factors as part of a professional design, installation or safety assessment, helping ensure the completed system is appropriate for the goods stored and the way the warehouse operates.
