How do warehouse racking uprights contribute to safety in storage systems?

Warehouse racking uprights are the vertical load-bearing members that transfer stored loads safely to the floor and provide stability to the storage system. Their condition, alignment, capacity and connection to the rest of the system directly affect the risk of overloading, falling goods, frame distortion and structural collapse. Correct specification, competent installation and planned inspection are therefore essential to safe warehouse operations.

Each upright forms part of a larger frame, usually connected by horizontal beams, bracing and baseplates. The uprights carry forces from stored pallets and other goods through the frame and into the warehouse floor. If an upright is bent, poorly anchored, incorrectly assembled or carrying more load than intended, the whole bay can become less stable.

How uprights support storage safety

• Load transfer: Uprights carry the vertical forces generated by stored goods and transfer them through the baseplates and anchors into the floor.
• Frame stability: Upright frames, bracing and beam connections work together to resist movement, sway and distortion during normal use.
• Load separation: Uprights define the sides of each storage bay, helping beams and decking remain in their intended positions.
• Impact resistance: The design and protection around uprights can reduce the consequences of contact from handling equipment, although protection does not make an impact harmless.
• System capacity: Upright size, frame configuration, bracing and height all contribute to the safe working capacity shown on the relevant load notices and design information.

Correct specification is the first safety control

Uprights must be selected for the actual storage arrangement rather than treated as interchangeable components. The assessment should consider the weight and dimensions of the goods, pallet type, beam levels, bay width, frame height, operating equipment, floor condition and the way loads are placed and removed.

Changing beam levels, adding components, increasing stored loads or altering the layout can affect the forces within the frame. A system that was safe in its original configuration may no longer have the same capacity after modification. Any change should be reviewed by a suitably competent person and supported by appropriate design and load information.

Compatibility is also important when replacing an upright or other component. Components from different systems may have different profiles, connection details, steel grades, bracing arrangements and load capacities. A replacement should match the original design or be approved as part of a documented engineering assessment. Improvised repairs, drilled components and unapproved substitutions can reduce structural performance.

Installation affects upright performance

Even correctly selected uprights can present a risk if they are installed inaccurately. Frames should be assembled to the manufacturer’s instructions, with bracing, beams, locking devices and baseplates correctly positioned. The frame must be plumb and adequately anchored where the design requires it. The floor should be capable of supporting the imposed loads, and local damage, unevenness or deterioration should be investigated rather than concealed.

Installation checks should confirm that:

• uprights and bracing are fitted in the correct orientation and configuration;
• beam connectors and locking pins are fully engaged;
• baseplates are properly seated and anchors are correctly installed;
• frames are aligned and not visibly distorted;
• clearances from doors, services, equipment routes and other structures are adequate;
• load notices reflect the installed configuration; and
• protective devices are fitted where the risk assessment identifies a need.

Damage to uprights requires prompt assessment

Forklift and other handling equipment impacts are a common cause of damage. A collision may create a visible bend, crease, dent, split weld, displaced brace or damaged baseplate. It can also cause less obvious deformation or loosen an anchor. Damage at a lower section of an upright is particularly important because it can affect the stability of the frame above it.

Staff should report impacts immediately and prevent further use of an affected area until it has been assessed. Damaged uprights should not be straightened with improvised methods, welded without an approved repair procedure or painted over to hide the defect. Depending on the severity and location, the appropriate action may be to unload the bay, isolate the area, install a temporary restriction or arrange an engineered replacement.

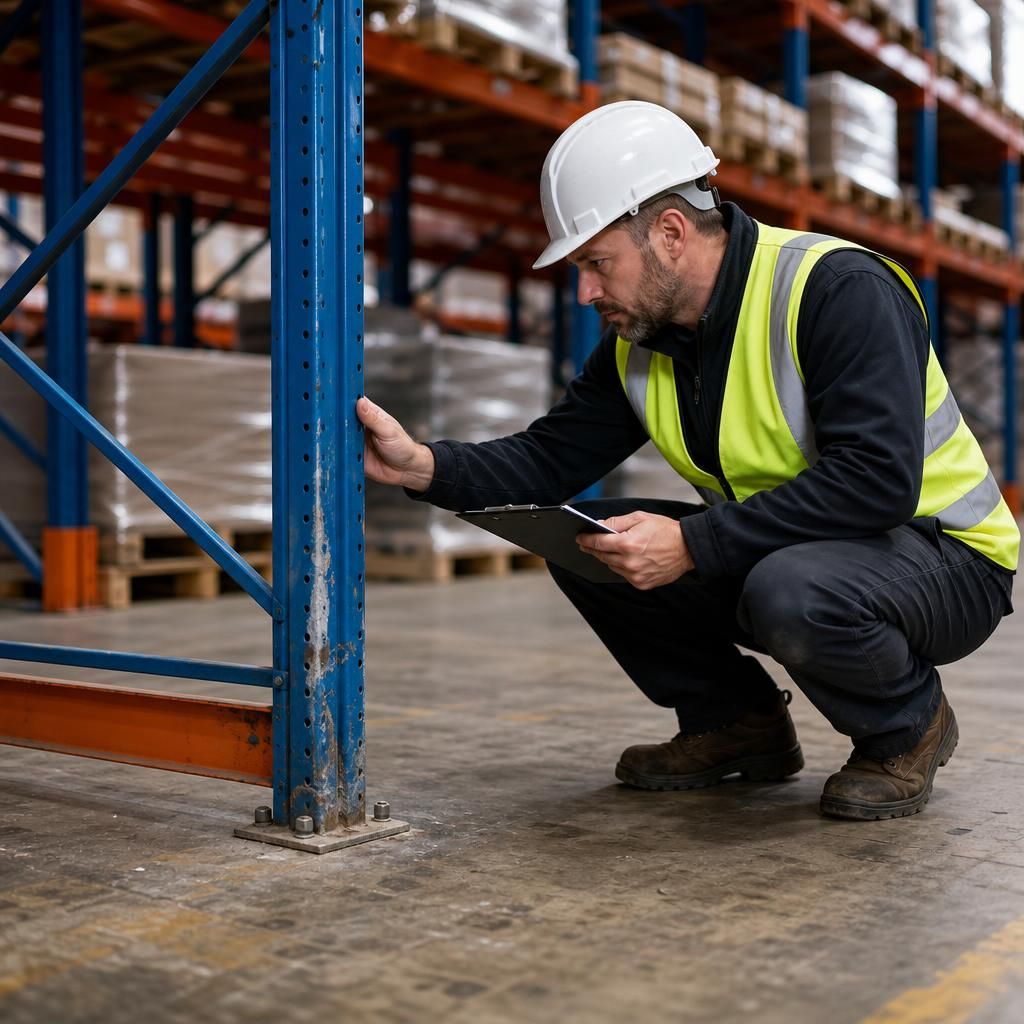

During inspections, look for bent or buckled sections, dents, corrosion, cracked welds, loose anchors, missing bracing, displaced components and signs that the frame has moved. Check adjoining beams and connections as well, because an impact may have transferred force beyond the visibly damaged upright.

Inspection and maintenance preserve the safety margin

Planned inspections help identify deterioration before it develops into a more serious structural problem. They should be based on the manufacturer’s guidance, the storage system’s design, the working environment and the risks created by site activities. Routine visual checks by trained staff should be supported by a competent expert inspection at suitable intervals and after significant impacts, alterations or changes in use.

Inspection findings should be recorded clearly, including the location of the affected bay, the type and severity of the defect, any immediate controls and the required corrective action. Repairs should be prioritised according to risk and closed out promptly. Repeated damage in the same location may indicate a need to improve traffic management, operator controls, aisle protection or the layout itself, rather than simply replacing the damaged component.

Cleaning and corrosion control also support upright longevity. Dust, moisture, chemicals and damage to protective coatings can accelerate deterioration. The cause of corrosion should be addressed, and any repair method should be suitable for the component and approved system. Maintenance records should retain inspection reports, repair details, load information and evidence of any design changes.

Good housekeeping and operating controls matter

Uprights are safer when the surrounding operation is controlled. Aisles should remain clear, loads should be stable and suitable for the beams and decking, and handling equipment should be operated with adequate clearance. Operators should avoid pushing loads into frames, dragging pallets across beams or using storage components as impact points.

Load notices should be visible and understood by the people using the system. They should not be exceeded, and staff should know how to respond when a pallet, beam or upright appears damaged. Upright guards and end-of-aisle protection may reduce the likelihood or severity of vehicle contact, but they must be correctly installed, maintained and included in the inspection regime.

Practical checks for safer uprights

1. Confirm that the installed frame matches the approved design and intended storage use.
2. Check that the stated load limits are available, legible and appropriate to the current configuration.
3. Inspect uprights, bracing, baseplates, anchors, beams and locking devices for damage or displacement.
4. Investigate any impact, unusual movement, leaning or change in alignment without delay.
5. Keep damaged bays isolated until a competent person has assessed them.
6. Use approved components and repair methods rather than ad hoc modifications.
7. Record inspections and corrective actions so recurring issues can be identified and controlled.
8. Review the system whenever loads, equipment, layout or operating conditions change.

Warehouse racking uprights contribute to safety by providing a stable, continuous load path from stored goods to the floor. Their effectiveness depends on the complete storage system and the way it is used, not on the upright alone. A combination of suitable design, competent installation, clear load information, impact prevention and documented inspection gives warehouse operators the best basis for maintaining safe and compliant storage.
