What are the advantages of using cantilever racking in a warehouse?

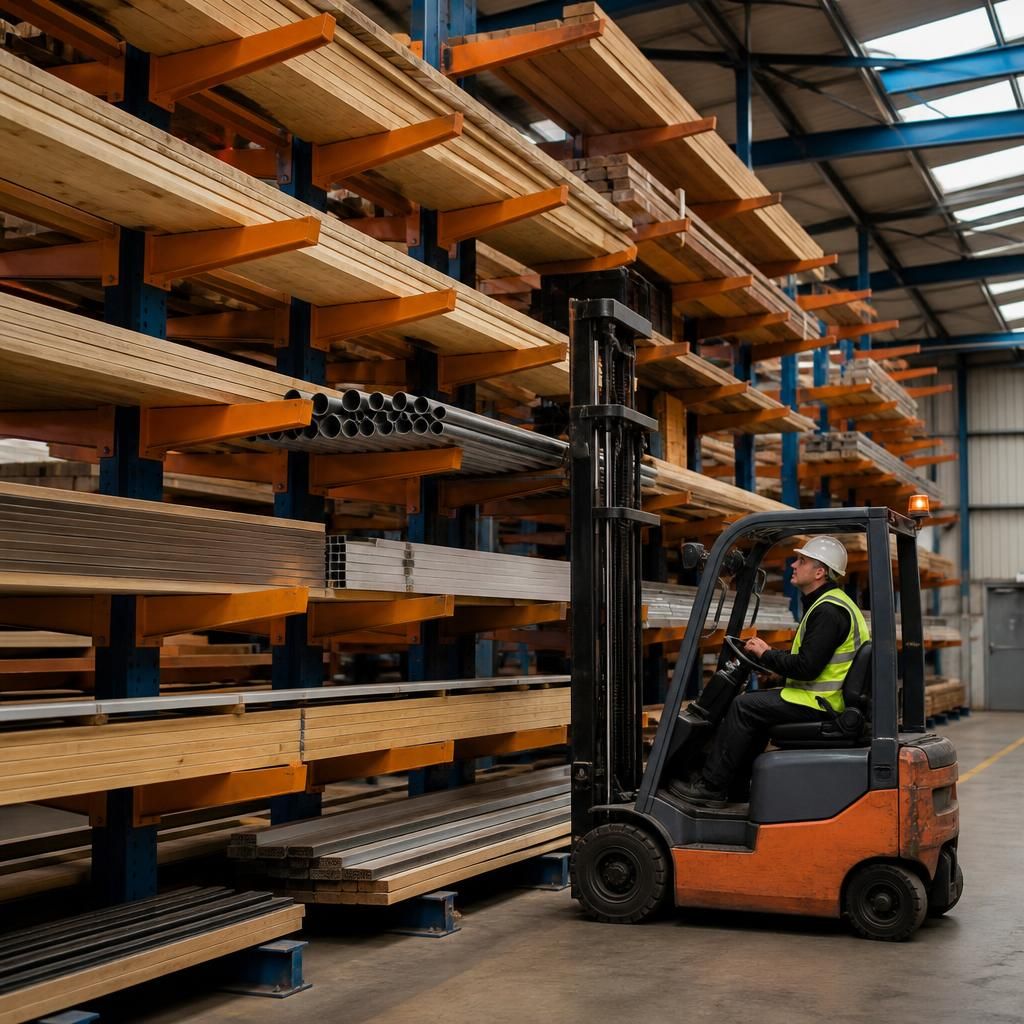

Cantilever racking is particularly advantageous in a warehouse where materials are long, bulky, awkwardly shaped or difficult to store on standard pallet racking. Its open-fronted design provides unobstructed access to timber, steel sections, pipes, boards, lengths of plastic and other non-palletised goods, while allowing storage levels to be adjusted to suit the load.

Better storage for long and irregular loads

Unlike pallet-based systems, cantilever racking uses horizontal arms supported by upright columns rather than front and rear beams. This removes the need to fit long products within a fixed bay width. Loads can project across the arms, provided the system has been designed for that purpose and the projection remains within the manufacturer’s stated limits.

This makes cantilever racking suitable for products that are:

• Longer than a conventional pallet position;
• Heavy, flexible or difficult to stack;
• Irregular in shape;
• Stored in bundles, packs or loose lengths; or
• Frequently accessed individually rather than moved as complete pallets.

Improved access and product visibility

The open structure gives operators a clear view of stored materials. Items can be identified without moving several other loads, which helps reduce handling time and makes stock checking more straightforward. Forklift trucks and other suitable handling equipment can also approach the load from the open side, subject to the layout, equipment specifications and site traffic controls.

Access is especially useful where stock varies in length or where individual items need to be selected regularly. Adjustable arms allow the storage arrangement to be altered as the product range changes, rather than requiring a completely new storage solution.

More efficient use of warehouse space

Cantilever racking can make better use of the available warehouse footprint and height for long-load storage. Materials can be stored vertically across several levels instead of being left on the floor, in fixed stacks or in areas that obstruct walkways and vehicle routes. This can release floor space for handling, picking and other operational activities.

Space efficiency depends on the complete design, not simply on the height of the upright columns. The layout must allow enough room for safe loading and unloading, vehicle manoeuvring, pedestrian movement, fire protection arrangements and access to emergency equipment. A properly planned system therefore balances storage density with safe, practical operation.

Flexible configuration

Arms, levels and accessories can be selected to suit the dimensions, weight and characteristics of the stored materials. The system may be configured for single-sided use against a wall or double-sided use within the warehouse, depending on the available space and the required access points. Arm positions can normally be altered by a competent person when the design and manufacturer’s instructions permit it.

This flexibility helps accommodate changes in stock profiles. However, adjustments should not be made informally. Changing arm positions, adding components or altering the type of load may affect capacity and stability, so the revised arrangement should be checked against the system’s design information.

Suitable support for different materials

Cantilever racking can be adapted with features such as end stops, arm restraints, decking or other approved accessories. These may help retain materials, protect products or provide a more suitable bearing surface. The correct accessory depends on the load and must be compatible with the system.

For example, bundled lengths may need restraint to prevent movement, while smaller items may require additional support to stop them rolling or falling between arms. Cylindrical products should not be stored on unsuitable open arms without considering their tendency to roll. Load-specific controls are an important part of the design rather than an afterthought.

Potential handling and safety benefits

When the system is correctly designed and operated, organised storage can reduce unnecessary lifting, dragging and repeated repositioning of materials. Clear load locations also help operators select the correct products and keep stock away from areas used by pedestrians or vehicles.

Safety depends on more than the presence of the cantilever racking itself. Loads must be within the stated capacity, evenly distributed and positioned correctly on the arms. Uprights, bases and arms must be protected from impact where necessary, and operators should be trained in the site’s loading procedures. The warehouse layout should also provide suitable clearance and prevent unauthorised access to hazardous loading areas.

Important limitations to consider

Cantilever racking is not automatically the best option for every warehouse. The most suitable arrangement depends on the load dimensions, weight, centre of gravity, handling equipment, available clear height, floor condition and required access. Very small, boxed or palletised goods may be better suited to another storage system.

The system must be assessed for the actual loads and operating conditions. Capacity information should be visible and understandable to operators, and loads should never be added on the assumption that unused space represents unused capacity. Factors such as arm length, upright spacing, level position, load distribution and the number of loaded levels can affect performance.

Inspection and ongoing care

Regular user checks should identify obvious damage, displaced components, overloaded arms, missing restraints and changes to the storage arrangement. Any suspected damage should be reported promptly, and affected areas should be isolated where continued use could be unsafe.

A competent person should carry out periodic inspections in line with the manufacturer’s guidance, site risk assessment and applicable workplace requirements. Inspection findings should be recorded, and repairs or replacements should use suitable, approved components. Straightening damaged parts or making improvised alterations can compromise the system and should not be treated as a permanent repair.

Overall, the main advantage of cantilever racking is that it provides a controlled, accessible and adaptable way to store long or irregular materials that are poorly suited to conventional pallet storage. Its benefits are achieved when the system is correctly specified, professionally installed, clearly loaded within capacity and maintained through effective inspection and repair procedures.
