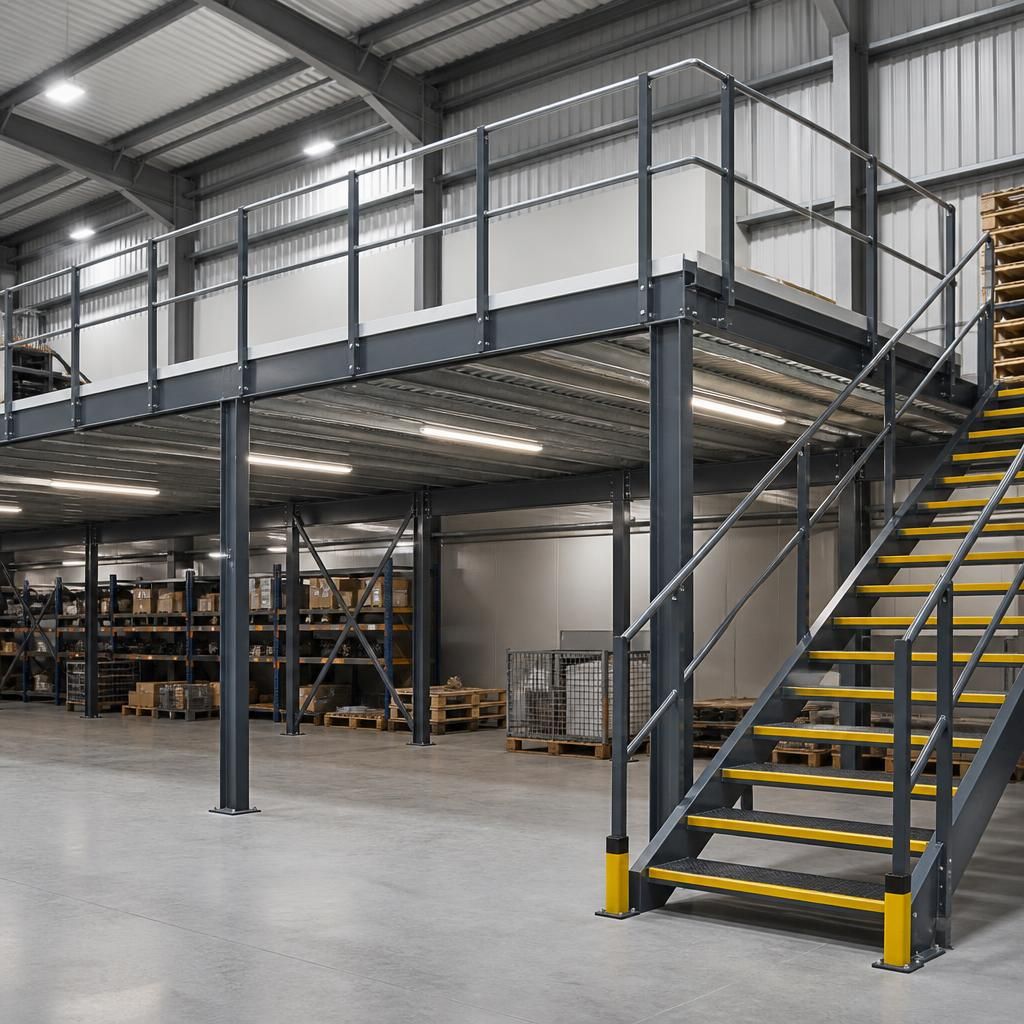

What materials are commonly used in constructing steel mezzanine structures?

Steel mezzanine structures are typically constructed from fabricated structural steel columns, beams and joists, with a selected floor deck, access system and edge protection completing the platform. The materials are specified according to the intended load, span, fire strategy, operating environment, access requirements and applicable building regulations.

Although steel forms the primary frame, a complete mezzanine structure is a combination of materials. Each component has a defined purpose, and the correct specification is essential for stability, durability, safe access and everyday usability.

Structural steel frame

Structural steel is used for the main columns, primary beams, secondary beams and joists. It provides the strength and stiffness needed to support the platform, its contents, equipment and the people using it. Steel sections may be fabricated from universal columns, universal beams, hollow sections or other engineered profiles, depending on the design.

The frame is normally manufactured to detailed engineering drawings before being assembled on site. Connections may use bolted plates, cleats and brackets, allowing the structure to be installed, inspected and adjusted efficiently. The size and arrangement of the steelwork are determined by factors such as the imposed load, beam spans, column positions, floor height and the condition of the supporting building.

Floor decking

The platform surface can be made from several materials, including:

• Steel decking: profiled or plain steel sheets provide a durable base and can be suitable where strength, resistance to impact or ease of cleaning is important.
• Composite decking: steel profiles combined with timber-based boards or other engineered panels can provide a practical balance of strength, weight and installation speed.
• Timber-based panels: structural chipboard, plywood or other engineered boards are commonly used as a finished walking surface when their load rating and environmental suitability have been confirmed.
• Concrete decking: a concrete slab or concrete-filled metal deck can offer a robust, rigid surface and may support particular fire or acoustic requirements, but it adds considerable weight and must be included in the structural design.
• Open mesh decking: steel mesh panels allow light, air and sprinkler discharge to pass through the platform. They may be appropriate where visibility, ventilation or fire protection arrangements require an open surface.

The choice of decking depends on the load, anticipated traffic, cleaning regime, fire precautions and the type of goods or equipment placed on the platform. The deck must be properly supported and fixed so that panels cannot move, lift or create trip hazards.

Protective coatings and finishes

Steel components are commonly supplied with a prepared and painted finish. The coating helps protect the steel from general wear and atmospheric corrosion, while also providing a consistent appearance. In areas exposed to moisture, chemicals or demanding cleaning processes, a more suitable coating system may be required.

Galvanised steel can be specified where additional corrosion resistance is needed, particularly for components exposed to damp conditions. The required finish should be selected during design rather than treated as an afterthought, as the surrounding environment and any damage to the coating will affect long-term performance.

Stairs and access components

Steel is also widely used for stair strings, treads, landings and supporting frames. Stair treads may be manufactured from chequer plate, open steel mesh or other slip-resistant materials. The selected surface should provide reliable foothold under the expected conditions and should be compatible with the site’s cleaning and maintenance arrangements.

Where goods are transferred to the platform, the design may also include a pallet gate, loading gate or other controlled transfer arrangement. These components are usually formed from steel and must prevent people or goods from falling when the opening is not actively being used.

Handrails and edge protection

Guardrails, handrails, knee rails, toe boards and posts are generally manufactured from steel or steel hollow sections. Their purpose is to protect people at exposed edges, stairways and access points. Toe boards help prevent items from being pushed or rolling from the platform, while gates and removable sections must be designed so that protection is maintained during loading operations.

Edge protection is not simply a finishing detail. Its height, spacing, strength, configuration and method of fixing must be suitable for the intended use and coordinated with the platform, stairs, machinery and any transfer points.

Fire protection materials

Where the building’s fire strategy requires it, steelwork may need a fire-resisting treatment. Options can include intumescent coatings, fire-resistant board systems, sprayed protection or a protected concrete and steel deck arrangement. The appropriate solution depends on the required fire resistance, the exposed steel section, the surrounding construction and the recommendations of the fire safety design.

Fire protection must be specified as part of the overall design. Adding an unapproved coating or covering after installation can affect clearances, connections, inspection access and the performance of the system. Open decking, compartmentation, sprinklers, escape routes and fire detection arrangements may also influence the material selection.

Fixings and connection materials

Bolts, nuts, washers, plates, cleats and brackets connect the steel frame to itself and, where appropriate, to the existing building. Anchors are selected to suit the supporting slab or structure, with the type, embedment and installation method verified for the applied loads.

Fixings must be compatible with the environment and installed in accordance with the design and manufacturer’s instructions. Incorrect anchors, damaged threads, unsuitable drilling positions or poorly tightened connections can reduce the capacity of an otherwise correctly designed structure.

How the materials are selected

Material selection should follow a structural design assessment rather than a standard specification. The designer will normally consider:

• the permanent weight of the steel frame, deck, stairs and edge protection;
• the imposed load from people, stored goods, equipment and operational activity;
• the span between columns and the available fixing locations;
• impact, vibration and movement caused by handling equipment;
• moisture, temperature, chemicals and cleaning methods;
• fire resistance, escape and building control requirements;
• the required floor finish, drainage, lighting and ventilation; and
• future changes that could increase the loading or alter the use of the platform.

Material substitutions should not be made without engineering approval. Changing a floor panel, adding equipment, installing heavier partitions or applying a different coating can alter the loads or the performance of the structure. Any proposed change should therefore be checked before work begins.

In practice, the most reliable steel mezzanine structures combine an engineered steel frame with a deck suited to the load and environment, properly protected finishes, secure access, compliant edge protection and any fire-resistant materials required by the design. Inspection and maintenance should then confirm that the steelwork, deck, fixings, coatings and safety components remain in sound condition throughout the structure’s service life.
