What are the installation considerations for mezzanine floor beams in existing warehouses?

Installing mezzanine floor beams in an existing warehouse requires more than selecting suitable steel sections. The installation must be based on a verified structural survey, accurate load calculations, confirmation of the existing slab and foundations, and a coordinated plan for access, services, fire protection and safe construction. The design should be checked by a suitably qualified structural engineer before materials are ordered or work begins.

Survey the existing building first

An existing warehouse may have been altered, repaired or loaded in ways that are not shown on its original drawings. A site survey should therefore establish the position and condition of columns, foundations, floor slabs, walls, doors, loading areas, plant and other obstructions. The survey should also record clear heights and any variations in floor level that could affect beam positioning, stair access or edge protection.

Where drawings are incomplete, measurements and investigations may be needed to confirm the slab thickness, reinforcement, concrete condition and the depth or type of foundations. These checks are important because mezzanine column loads are transferred into the existing structure. A slab that is suitable for general warehouse traffic may not automatically be capable of supporting concentrated loads from new columns.

Confirm the intended loads and use

The beams must be designed for the way the floor will actually be used, rather than for a general-purpose assumption. The design brief should identify:

• People, equipment, stock and other imposed loads.
• Uniformly distributed and concentrated loads.
• Any moving equipment, lifting equipment or impact forces.
• Partition walls, conveyors, machinery or services supported by the floor.
• Point loads created by storage, workstations or access equipment.
• Future changes that could increase the loading or alter the floor layout.

Load paths should be followed from the deck and beams through the columns, base plates and connections into the slab and foundations. The engineer should also consider beam deflection, vibration and movement, particularly where the floor will support offices, production areas, sensitive equipment or regular pedestrian traffic.

Check the existing slab and foundations

Column positions should be selected with the existing structure in mind. Placing columns near slab joints, edges, pits, drains or areas of damaged concrete can reduce the available capacity and complicate the connection detail. The design may require local thickening, additional foundations, steel grillages or another engineered solution where the existing floor cannot safely accept the proposed reactions.

The condition of the concrete should be assessed before drilling or fixing base plates. Cracking, settlement, contamination, corrosion or previous repairs may affect the reliability of anchors. Anchor type, embedment, spacing and installation torque should be specified by the engineer and checked during installation.

Coordinate services and building constraints

Existing warehouses commonly contain lighting, sprinklers, heating, ventilation, electrical containment, drainage, data cabling and fire detection systems. Beam lines, columns and deck panels must be coordinated with these services before installation. Unplanned clashes can lead to cutting, relocation work or changes that compromise the structural or fire design.

A coordinated survey should also identify roof slopes, low-level obstructions, vehicle routes, emergency exits, roller doors and areas needed for deliveries. Maintaining suitable headroom beneath and above the new floor is essential for safe movement, maintenance and emergency access.

Address permissions and compliance

Depending on the size, use and location of the installation, the project may require building control approval, planning confirmation, landlord consent or approval under the site’s fire strategy. The design should address structural stability, access, guarding, stairs, escape routes, fire resistance, lighting, ventilation and accessibility where applicable.

The construction plan should follow the requirements of the Construction (Design and Management) Regulations and the site’s own health and safety procedures. Risk assessments and method statements should cover lifting operations, work at height, temporary stability, exclusion zones, hot works, deliveries and interaction with ongoing warehouse activities.

Plan the installation sequence

Installation in an occupied warehouse needs careful phasing. Before work starts, the contractor should agree delivery times, pedestrian and vehicle segregation, welfare arrangements, emergency procedures and areas for materials. Stock, equipment and personnel may need to be moved temporarily to provide a controlled work zone.

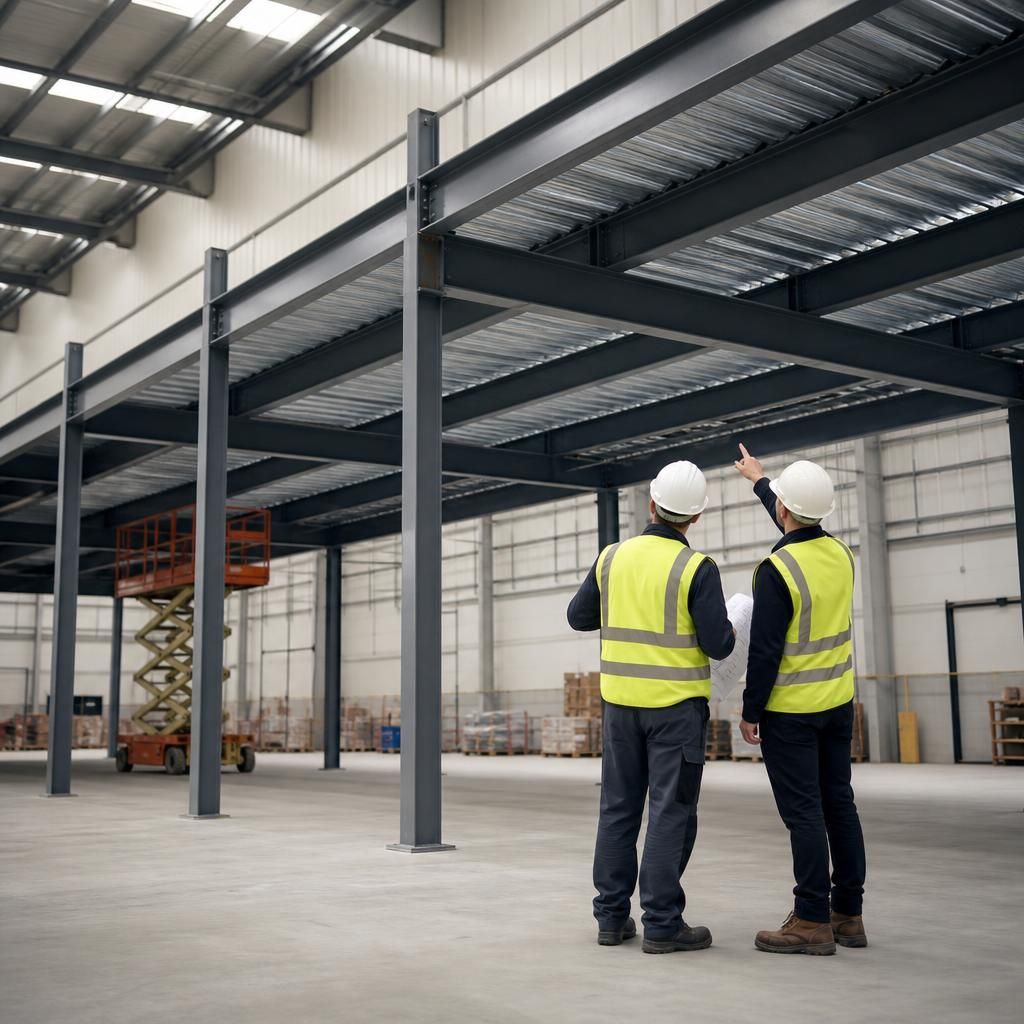

The sequence normally includes setting out column positions, preparing the floor, installing bases and columns, fitting primary and secondary beams, adding decking and completing stairs, guarding and other components. Temporary bracing may be required until the frame is fully connected. Beams should not be left in an unstable condition between shifts, and no part of the structure should be loaded before the engineer or competent installer confirms that it is ready.

Where beams are lifted into position, the lifting plan should account for the available headroom, load weights, lifting points, crane or telehandler capacity, ground conditions and overhead obstructions. Manual handling should be avoided where the component weight, dimensions or working position create a foreseeable risk.

Control connections, tolerances and workmanship

Connections between beams, columns, bracing and the existing building should match the approved design. Site alterations such as unapproved drilling, cutting, welding or relocating a column can change the load path and should not be made without an engineer’s written approval.

Setting out and tolerances are also important. Small discrepancies in column positions or floor levels can affect beam connections, decking, stairs, handrails and pallet gates. The installer should check line, level, plumb, bolt installation, weld quality where applicable, base plate contact and the condition of protective coatings. Any deviation should be recorded and resolved before the next stage proceeds.

Integrate fire and operational safety measures

The new floor must be considered as part of the whole building, not as an isolated steel frame. Beam protection, decking, soffits, fire separation, sprinklers, alarms and escape arrangements should follow the approved fire strategy. Changes to the floor layout may affect smoke movement, fire detection coverage or the distance to an escape route.

Guardrails, toe boards, gates, stairs, barriers and loading areas should be designed for the intended use. Open edges must be protected throughout construction as well as after completion. Loading notices should state the permitted use and restrictions, and the finished floor should not be used for a different purpose without a design review.

Complete inspections and handover checks

Before the mezzanine is put into service, the project team should inspect the completed structure against the approved drawings and specifications. Checks may include:

• Column positions, base connections and anchor installation.
• Beam connections, bracing and any required fire protection.
• Decking, edge protection, stairs and loading gates.
• Clearances from doors, services, vehicles and emergency routes.
• Floor condition, surface finish and trip hazards.
• Signage showing the permitted loading and intended use.

The handover file should include structural calculations, drawings, inspection records, product information, fire documentation, maintenance requirements and details of any limitations. It should also identify the person responsible for future inspections and for controlling changes to the floor.

For an existing warehouse, the most reliable approach is to involve a competent designer and installer at the survey stage, not after the beam layout has been chosen. Early verification of the building, slab, services, loads and operating constraints reduces redesign, avoids unsafe assumptions and provides a clear route from the approved design to a safe, usable mezzanine floor.
