What materials are commonly used for mezzanine edge protection systems?

The materials most commonly used for mezzanine edge protection systems are galvanised or painted steel, stainless steel and aluminium. Steel is generally selected for its strength, rigidity and resistance to impact, while aluminium offers lower weight and good corrosion resistance. Stainless steel is used where hygiene, appearance or demanding environmental conditions make it appropriate. The correct material depends on the platform design, operating environment, required loading, exposure to impact and the specification of the complete protection system.

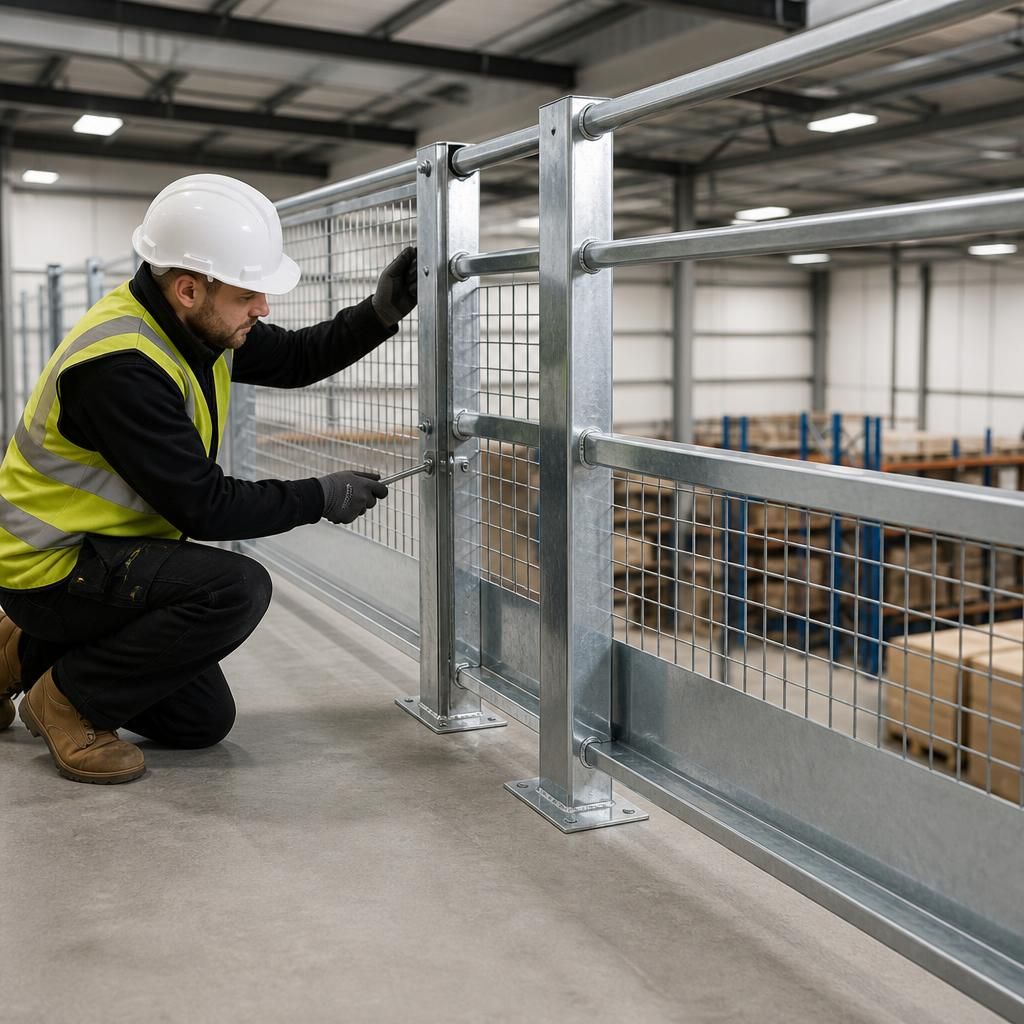

Galvanised steel is widely used for industrial edge protection. A zinc coating helps protect the steel from corrosion, making it suitable for many warehouses, workshops and loading areas. It provides a robust barrier and can withstand routine contact from materials-handling equipment when the system has been correctly designed and installed. Galvanised components are often used for posts, rails, gates, brackets and toe boards.

Painted mild steel is another common option. It provides high strength and can be supplied in a range of protective finishes and colours. Paint systems can help identify the edge of a platform, separate pedestrian areas from operational zones or match an existing site specification. Painted steel requires suitable preparation and periodic inspection, particularly where the coating may have been scratched, chipped or exposed to moisture.

Stainless steel is chosen where corrosion resistance and cleanability are especially important. It may be suitable for food, pharmaceutical, chemical or wet environments, although the grade and finish must be matched to the substances and cleaning methods present. Stainless steel can also be selected for visible installations where a clean appearance is required. It is usually more costly than standard galvanised or painted steel, so its use should be based on the site conditions rather than appearance alone.

Aluminium provides a lightweight alternative to steel. Its lower weight can make handling and installation easier, while its natural oxide layer gives it useful resistance to corrosion. Aluminium is often considered for internal platforms, areas where manual handling is a concern and environments where moisture is present. However, it may not provide the same impact resistance or stiffness as a comparable steel system, so the design must account for the expected forces and use.

Mesh and infill panels may be made from steel, galvanised steel or aluminium. They help prevent people, tools and stored items from passing through the protected edge. Mesh aperture, panel strength and the height of the protection should be selected according to the risks below and beside the platform. Solid panels may be preferable where small objects, dust or liquids must be contained, while mesh can provide visibility and ventilation.

Toe boards and kick plates are commonly manufactured from galvanised or painted steel, with aluminium also used in suitable applications. Their purpose is to reduce the risk of items sliding or being knocked from the platform edge. They should be securely fixed, continuous where required and integrated with the posts, rails, gates and floor surface rather than treated as an optional add-on.

Different materials can be combined within one system. For example, a steel post-and-rail structure may use mesh infill, galvanised toe boards and a gate with a matching protective finish. Combining materials is acceptable when the components are compatible, correctly connected and covered by the system design. Particular care is needed where dissimilar metals meet, as moisture can contribute to galvanic corrosion. Suitable fixings, isolating materials and finishes can help reduce this risk.

Material selection should also consider the following practical factors:

• Corrosion exposure: assess humidity, outdoor exposure, cleaning chemicals, salt, dust and any substances used nearby.
• Impact risk: areas exposed to forklift trucks, pallet movement or other equipment may require a more robust steel solution and suitable guarding arrangements.
• Loading and deflection: the posts, rails, infill and fixings must be designed to resist the foreseeable loads without excessive movement or failure.
• Hygiene and cleaning: smooth, corrosion-resistant surfaces may be preferable where regular wash-down or contamination control is required.
• Maintenance access: the finish and construction should allow damage, loosened fixings and corrosion to be identified during inspections.
• Compatibility: gates, hinges, locks, toe boards, floor connections and adjacent structures must work together as one engineered system.

A protective coating does not remove the need for inspection. Galvanised and painted surfaces should be checked for corrosion, impact damage and coating failure. Aluminium should be examined for distortion, cracking and damaged connections, while stainless steel should be checked for contamination, corrosion and unsuitable cleaning effects. Any damaged component should be assessed by a competent person and repaired or replaced in accordance with the system design.

There is no single material that is suitable for every mezzanine application. A competent designer or installer should assess the working environment, the risk of falling people or objects, access arrangements, gate operation, nearby traffic and the relevant legal and technical requirements. In the UK, the completed system should be suitable for its intended use and maintained in line with the Work at Height Regulations and applicable guardrail guidance, including BS EN ISO 14122-3 where relevant. Choosing the material as part of a complete, properly designed system provides more reliable long-term protection than selecting individual components on price or appearance alone.
